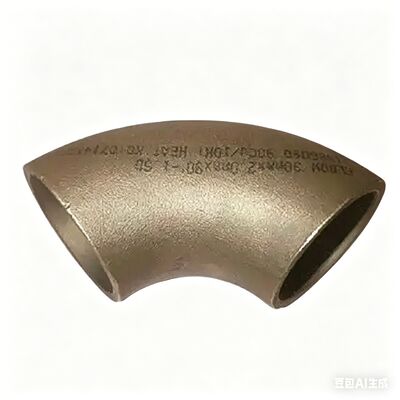

CuNi 70/30 Copper Nickel Elbow, Erosion Resistant 90° LR ASME B16.9 Butt Weld Pipe Fitting
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Elbow |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | CuNi 70/30 Copper Nickel Elbow, Erosion Resistant 90° LR ASME B16.9 Butt Weld Pipe Fitting | Size | 1 |
|---|---|---|---|
| Pressure | High Pressure | Port | Shanghai, Ningbo, Etc. |
| Standards | ASTM B466, ASTM B466M | Grade | Cooper |
| Customized | Customized Support | Length | Customized |
| Surface Finish | Polished, Sandblasting, Pickling | Material | Copper Nickel Alloy (CuNi) |
| Joiningmethod | Butt Weld Or Socket Weld | Paking | Wooden Case |
| Temperature Rating | Up To 450°F | Product Type | Copper Nickel Elbow |
| Application | Marine, Offshore, Chemical Processing | Temperature Range | -20°C To 150°C |
Product Description
CuNi 70/30 Copper Nickel Elbow, Erosion Resistant 90° LR ASME B16.9 Butt Weld Pipe Fitting
1.Product Description
This product is a seamless copper‑nickel elbow fitting manufactured from virgin alloy ingots with full traceability from melting to final inspection. The fitting is produced by hot‑induction bending or cold‑pushing processes, followed by solution annealing and pickling to remove surface oxides. Each piece is clearly marked with grade, size, schedule, heat number, and manufacturer‘s logo in accordance with ASTM E527 and MSS‑SP‑25. The product is designed for butt‑weld, socket‑weld, or threaded connections and is fully interchangeable with standard ASME/ANSI piping components.
2.Product Applications
This elbow is procured for installation in mission‑critical piping systems where material integrity and corrosion resistance are non‑negotiable. Typical application scenarios include:
-
Naval surface ships and submarines (seawater, auxiliary, and emergency systems)
-
Floating production, storage, and offloading (FPSO) units and fixed offshore platforms
-
Nuclear power plant secondary cooling circuits and emergency core cooling system (ECCS) piping
-
Municipal seawater reverse osmosis (SWRO) desalination pretreatment and high‑pressure feed lines
-
Shipyard newbuild and repair projects with class society approval requirements (DNV, ABS, LR, BV, CCS)
3 · Product Advantages
-
Full traceability – Each melt is independently certified with chemical and mechanical test reports (3.1 / 3.2 per EN 10204).
-
Proven supplier qualification – Meets NORSOK M‑650 and Shell DEP material procurement standards.
-
Consistent hardnés and grain size – Controlled solution annealing ensures grain size 0.035‑0.060 mm per ASTM E112.
-
Cost‑effective lifecycle – Higher initial cost offset by 3‑5× longer service life versus carbon steel / 316L in seawater.
-
Reduced inspection frequency – No periodic wall‑thickness monitoring required due to uniform corrosion behavior.
-
Globally stocked grades – C70600 and C71500 available ex‑stock in common dimensions for rapid deployment.
4.Key Product Specifications
| Parameter | Requirement / Value |
| Material Grades (ordering code) | UNS C70600 (90/10), UNS C71500 (70/30), or BFe10 1 1 |
| Dimension Standard | ASME B16.9 (factory) / MSS SP 119 (heavy wall) |
| Diameter Ordering Code | DN (metric) or NPS (inch) – e.g., DN150 / NPS 6″ |
| Wall Thickness Ordering Code | Schedule number (e.g., Sch40, Sch80) or minimum wall in mm |
| Bend Angle | 45°, 90°, or 180° (±0.5° for CNC machined ends) |
| Radius Type | LR (R=1.5D) – standard; SR (R=1.0D) – upon request |
| End Finish | Beveled end acc. to ASME B16.25 (BW); Socket (SW) or Threaded (NPT) optional |
| Heat Treatment Condition | Solution annealed + water quenched; hardness ≤ 90 HRB |
| Chemical Compliance | Per ASTM B466/B467 (actual vs. certified) |
| Mechanical Compliance | Tensile, yield, elongation per ASTM B122 / B466 |
| Hydrostatic Test Pressure | 1.5× design pressure @ ambient temperature, hold ≥ 5 min |
| Positive Material Identification (PMI) | 100% PMI required using XRF or OES |
| Dimensional Inspection | Random 10% or as per ITP; tolerances per ASME B16.9 |
| Marking | ASTM E527 / MSS SP 25: Grade, Size, Schedule, Heat No., Supplier Code |
| Documentation Package | MTC 3.1 (or 3.2 with witness); PMI report; dimensional report; NDE report (if applicable) |
| Packing & Preservation | Wooden crates / steel pallets; plastic cap protection on ends; moisture proof wrapping for sea freight |
| Shipping Mark | Purchase order number, item code, quantity, gross/net weight, heat number |
| Applicable Standards (full list) | ASTM B466, B467, B122; ASME B16.9; DIN 86090; EEMUA 146; GB/T 12459; NORSOK M 650; Shell DEP 31.38.01.10 |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
