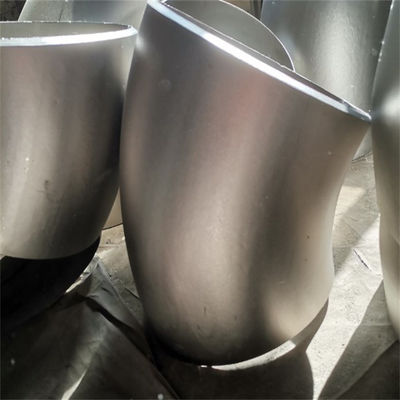

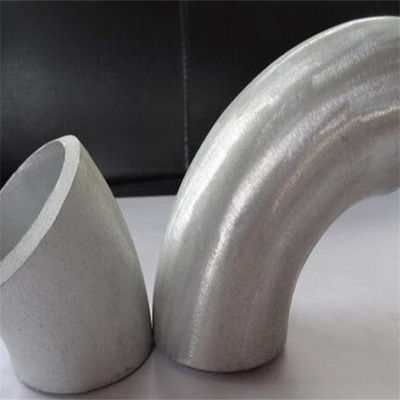

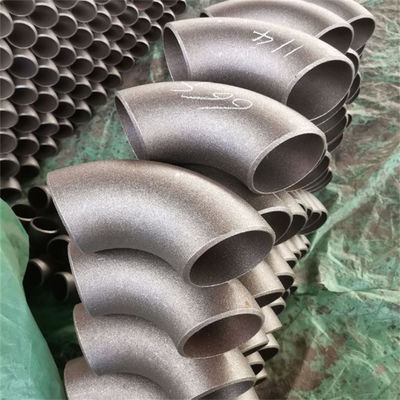

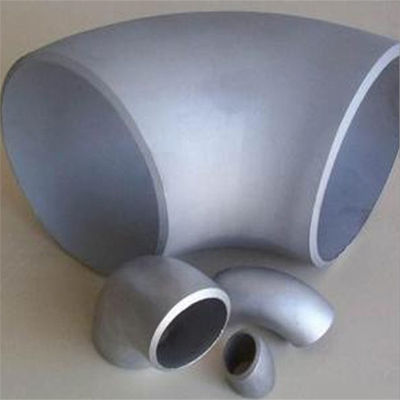

CuNi 70/30 Copper Nickel Elbow, Corrosion Resistant Seamless 90° LR ASME B16.9 Butt Weld Fitting
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Elbow |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | CuNi 70/30 Copper Nickel Elbow, Corrosion Resistant Seamless 90° LR ASME B16.9 Butt Weld Fitting | Temperature Rating | -20°C - 200°C |
|---|---|---|---|
| Radius | Short/Long Radius | Pressurerating | Up To 3000 Psi Depending On Size And Schedule |
| End Type | Plain End | Pressure Class | 3000 Psi |
| Degree | 45/90/180 | Temperaturerange | -196°C To 400°C |
| End Connection | Butt Weld, Socket Weld, Threaded | Quality Grade | The Real Thing |
| Application | Marine, Offshore, Chemical Processing, Desalination Plants | Length | Customized |
| Pressure Rating | 150 - 3000 PSI | Temper | Soft, Half Hard, Hard |
| Wallthickness | Schedule 10, 40, Or As Per ASTM Standards | Customized | Customized Support |
Product Description
CuNi 70/30 Copper Nickel Elbow, Corrosion Resistant Seamless 90° LR ASME B16.9 Butt Weld Fitting
1.Product Description
Copper Nickel Elbow (also known as CuNi Elbow or Cupronickel Elbow) is a directional pipe fitting manufactured from copper-nickel alloy. Copper-nickel is an alloy of copper that contains nickel and strengthening elements such as iron and manganese. Despite its high copper content, cupronickel appears silver in color.
The product is primarily formed by hot pushing, hot bending, or cold extrusion processes, followed by solution treatment to achieve a uniform and dense microstructure. Copper Nickel Elbows are manufactured in strict accordance with international standards including ASTM B466, ASTM B467, ASME B16.9, DIN 86090, EEMUA 146, and GB/T 12459. Common material grades include UNS C70600 (90/10 CuNi), UNS C71500 (70/30 CuNi), and BFe10-1-1.
2.Product Applications
Copper Nickel Elbows are widely used in piping systems that handle seawater and other corrosive media, owing to their exceptional resistance to seawater corrosion. Primary application areas include:
-
Shipbuilding & Marine Engineering: Marine piping systems, seawater cooling systems, ballast water systems, firefighting systems, and shipboard pipeline networks
-
Offshore Platforms & FPSO: Offshore pipeline systems that withstand long-term seawater corrosion and biofouling
-
Seawater Desalination Plants: Seawater transmission pipelines resistant to erosion from high-velocity seawater
-
Power Industry: Cooling water systems, condenser pipelines in thermal and nuclear power plants
-
Chemical & Petrochemical Industry: Corrosive medium pipelines for chemical transport
-
Port Facilities, Salt Chemical Industry & Wastewater Treatment: Anti-corrosion pipeline systems
3 · Product Advantages
-
Superior Corrosion Resistance: Exceptional resistance to seawater corrosion, chloride ion pitting, and salt spray erosion. Almost no pitting or crevice corrosion occurs in seawater, with a uniform corrosion rate of <0.03 mm/year.
-
Anti-Biofouling Property: The surface continuously releases trace copper ions, effectively preventing the attachment of shellfish, algae, and other marine organisms.
-
Excellent Weldability: Can be welded by TIG or manual arc welding without preheating; weld corrosion resistance remains unchanged.
-
High Strength & Reliability: Superior tensile strength with tensile strength ≥295 MPa and elongation ≥32%, capable of withstanding temperature fluctuations and pipeline vibration.
-
Seamless & Dense Structure: Formed from seamless pipe billet by pushing and bending, resulting in a compact structure, smooth curvature, and uniform wall thickness.
-
Low Flow Resistance & Anti-Fouling: Smooth inner wall surface minimizes frictional resistance and prevents scale accumulation.
-
Leak-Proof & Durable: Leak-proof connections with long service life, requiring low maintenance.
4.Key Product Specifications
| Parameter | Technical Value |
| Material Grades | UNS C70600 (90/10 CuNi), UNS C71500 (70/30 CuNi), BFe10-1-1, BFe30-1-1 |
| Chemical Composition (90/10) | Cu ≥86.0%, Ni 9.0-11.0%, Fe 1.0-1.8%, Mn 0.5-1.0%, Zn ≤0.5%, Pb ≤0.05% |
| Chemical Composition (70/30) | Cu ≥63.0%, Ni 29.0-33.0% |
| Diameter Range | DN6 ~ DN600 (1/4″ ~ 24″); up to DN1500 available |
| Wall Thickness Series | Sch10, Sch20, Sch40, Sch80, Sch160 / STD, Schedule 40, 80 |
| Bend Angles | 45°, 90°, 180° (special angles negotiable) |
| Bend Radius Ratio | Long Radius (LR) R=1.5D; Short Radius (SR) R=1.0D; 2D/4D available on request |
| Pressure Class | Class 150, 200, 300, 600, 700, 900 / PN6 ~ PN40 |
| Temperature Range | -50℃ ~ +300℃ |
| Tensile Strength (annealed) | ≥295 MPa (90/10: 52000 psi / 359 MPa) |
| End Connections | Butt Weld, Socket Weld, Threaded (NPT/BSPT), Bell End |
| Applicable Standards | ASME B16.9, ASTM B466, ASTM B467, ASTM B122, DIN 86090, EEMUA 146, GB/T 12459, MSS-SP-119, MIL-F-24202 |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
