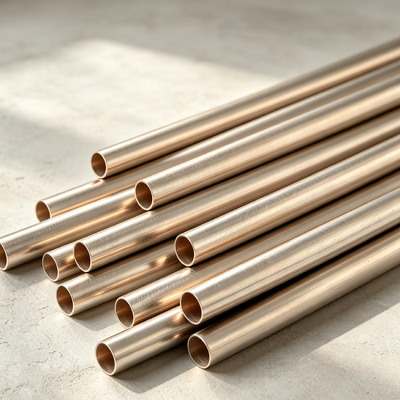

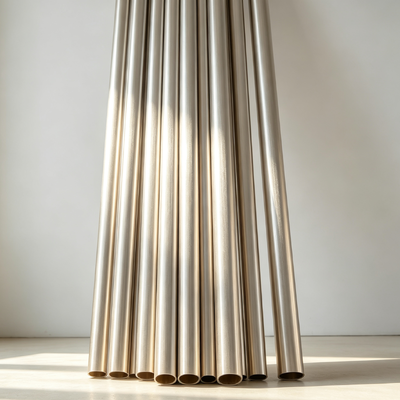

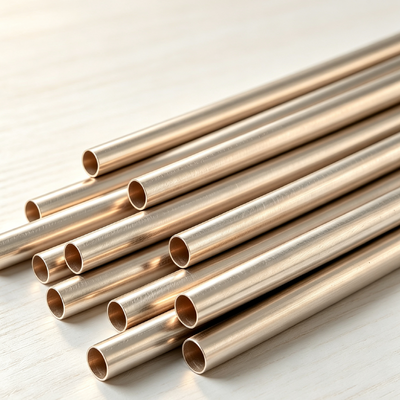

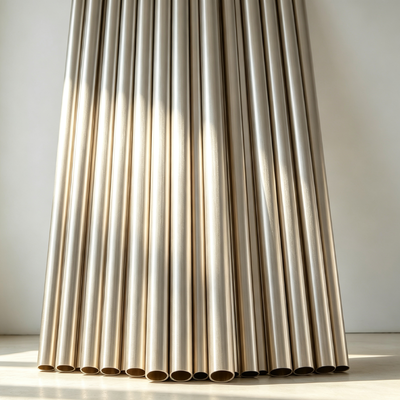

CuNi 70/30 Cupronickel Welded Pipe C71500 Marine Grade Piping with High Corrosion Resistance and Good Weldability
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Tube |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | CuNi 70/30 Cupronickel Welded Pipe C71500 Marine Grade Piping For Shipbuilding Industry | Price Term | CIF CFR FOB Ex-Work |
|---|---|---|---|
| Processing | Extrution, Drawn | Hardness | ≤90HRB |
| Alloy Or Not | Non-Alloy | Astm | C70600, C71500 ASTM B111 ASTM B466, B359 |
| Delivery | 20 Working Days | Materials | COPPER NICKEL |
| Ndt | EDDY CURRENT | Corrosionresistance | High Resistance To Seawater And Industrial Corrosion |
| Connection | Butt Welded | Productname | Copper Nickel Tube |
| Standard | DIN 86019 | Head Code | Hexagon |
| Astm Spec | B111, B395 | Weldability | Good |
| Highlight | CuNi 70/30 cupronickel welded pipe,C71500 marine grade piping,copper nickel tube for shipbuilding |
||
Product Description
CuNi 70/30 Cupronickel Welded Pipe C71500 Marine Grade Piping for Shipbuilding Industry
1.Product Description
-
Copper-nickel alloy tubes with 10% Ni (90-10/C70600) or 30% Ni (70-30/C71500).
-
Micro-additions of Fe and Mn enhance corrosion resistance; single-phase FCC structure, no phase embrittlement.
-
Supply forms: seamless (ASTM B466) or welded (ASTM B467).
-
Silver-white metallic finish, clean oxide-free bore, precision cold-drawn dimensional tolerance.
2.Product Applications
-
Marine & offshore: seawater cooling, firewater, ballast lines.
-
Power plants: condensers, feedwater heaters, air-cooler bundles.
-
Desalination: MSF/MED heating sections and evaporator tubes.
-
Oil & gas: platform utility piping, riser sheathing.
-
General industry: hydraulic tubing, chemical corrosion-resistant piping.
3.Product Advantages
-
Seawater corrosion rate ≤0.025 mm/year, with self-healing protective film.
-
Natural anti-biofouling, extending cleaning intervals by over 60%.
-
Tensile strength 275~345 MPa, elongation ≥25% – excellent strength-ductility balance.
-
Weldable, bendable, expandable – no SCC risk.
-
Service life 15~25 years, 100% recyclable material.
4.Key Product Specifications
| Item | 90-10 (C70600) | 70-30 (C71500) | Remarks |
| Nickel Content | 9.0~11.0% | 29.0~33.0% | — |
| Iron Content | 1.0~1.8% | 0.4~1.0% | — |
| Tensile Strength (Annealed) | ≥275 MPa | ≥345 MPa | 70-30 for higher pressure |
| Yield Strength (Annealed) | ≥105 MPa | ≥140 MPa | — |
| Elongation (Annealed) | ≥25% | ≥30% | — |
| Hardness HV (Annealed) | ≈130 | ≈150 | — |
| Density (g/cm³) | 8.90 | 8.94 | — |
| Thermal Conductivity (W/m·K) | ≈50 | ≈29 | 90-10 better for heat transfer |
| Max Service Temperature | 250°C | 300°C | Derating required above 200°C |
| OD Supply Range | Φ6~325 mm | Φ6~325 mm | Custom sizes available |
| WT Supply Range | 1.0~30.0 mm | 1.0~30.0 mm | — |
| Single Length | Up to 16 m | Up to 16 m | Fixed length tolerance ±3mm |
| Delivery Condition | Annealed (O) / Light-drawn (H) | Annealed (O) / Light-drawn (H) | Specify upon ordering |
| Recommended Max Seawater Velocity | ≤4.5 m/s | ≤5.0 m/s | — |
| Applicable Standards | ASTM B466/B467/B111; DIN 86019; GB/T 8890 | Same | Class society certificates available |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
