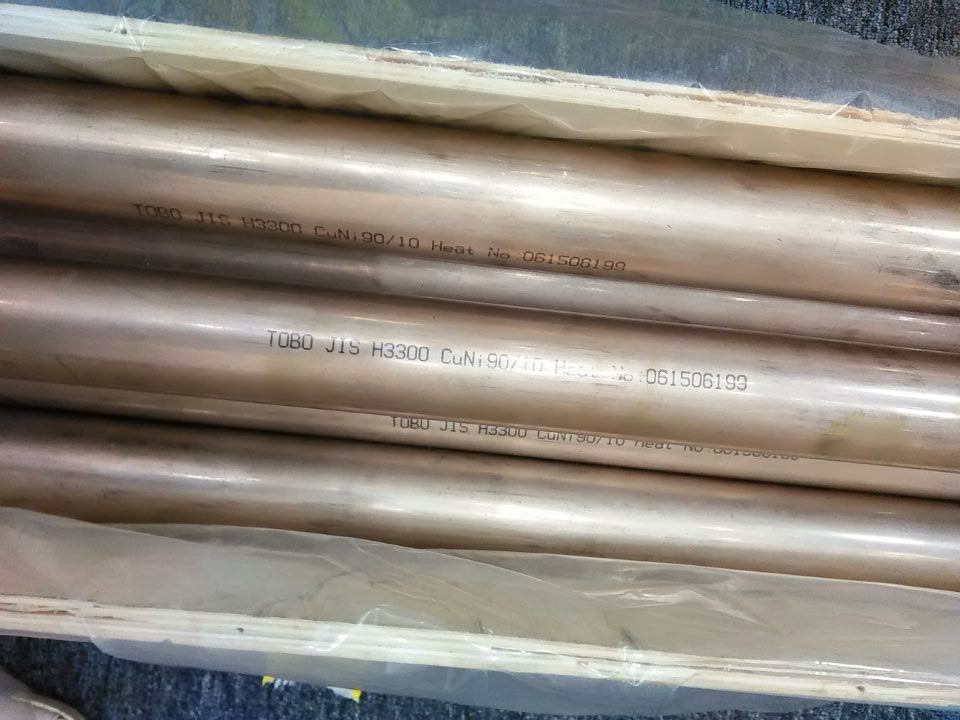

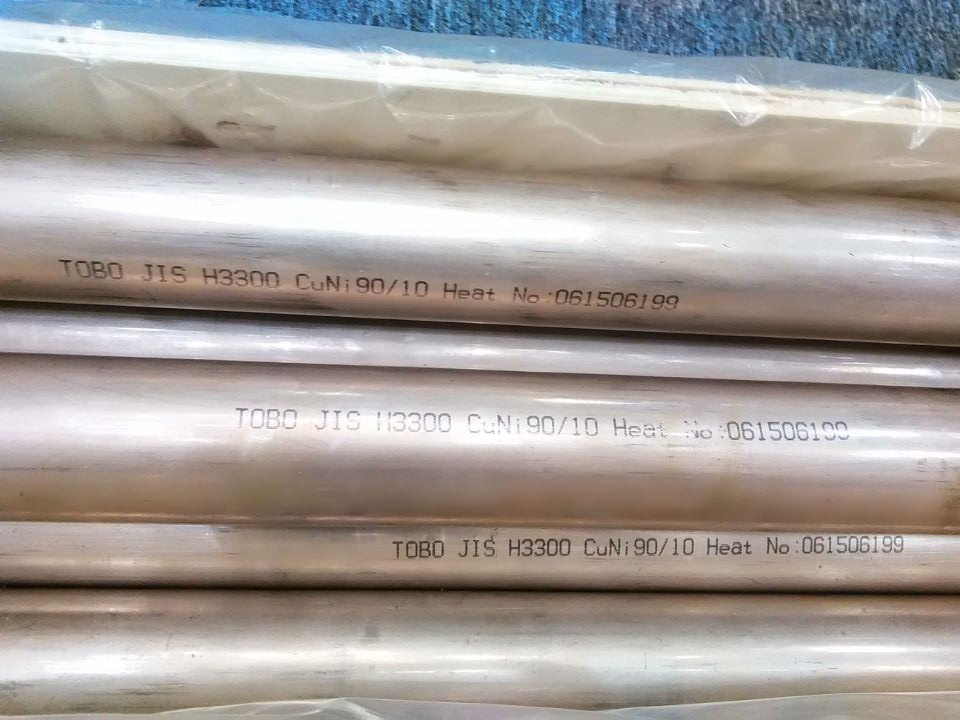

CuNi 9010 Copper Nickel Tube Heat Exchanger C70600 DNV BIS API PED
| Place of Origin | China |
|---|---|
| Brand Name | TOBO |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | ASME B466 C70600 |
| Minimum Order Quantity | 1pc |
| Price | US $ 10 - 100 / Kilogram |
| Packaging Details | Seaworthy wooden cases or pallets tied by steel band or as per client's requirements |
| Delivery Time | 15 days After Receiving the 30% Prepayment by T/T or LC |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50 Metric Ton/Metric Tons per Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Copper Nickel Tube | Product Type | Straight Copper Pipe |
|---|---|---|---|
| Material | Copper Nickel | Grade | C70600 |
| Cu (Min) | 70% | Application | Water Heater |
| Outside Diameter | 19.05mm | Wall Thickness | 2.5mm |
| Place Of Origin | China | ||
| Highlight | botai CuNi 9010 Copper Nickel Tube,botai Copper Nickel Tube Heat Exchanger,botai C70600 copper nickel pipe welding |
||
Product Description
ASTM B111Heat Exchanger Copper Nickel Tube / Pipe C71500 DNV / BIS / API / PED
Quick Details
| Standard: | ASTM, AISI, DIN, EN | Place of Origin: | Shanghai, China (Mainland) | Brand Name: | TOBO |
| Model Number: | COPPER NICKEL TUBE | Type: | Seamless | Steel Grade: | COPPER NICKEL TUBE |
| Application: | Heat Exchanger, Heat Exchanger | Certification: | ISO | Welding Line Type: | ERW |
| Thickness: | 0.5-8mm | Outer Diameter: | 6-101.6mm | Product Type: | cuni tube |
| Finish: | Annealed | Technical: | Cold Drawn | Material: | COPPER NICKEL |
| Certificate: | ISO | Qualtiy: | HIGH | Package: | Wooden Case |
| Ship: | By Sea | Place: | Shanghai China |
Packaging & Delivery
| Packaging Details: | POLY WOODEN CASE |
| Delivery Detail: | 30 DAYS |
Product Type:heat exchanger cuni tube
We have of sales offices in most major centres in India. Copper Nickel Alloy Tube also knowns as Cupro Nickel Tube or Cuni Tubing, it has a Tensile Strength (annealed) of 52000 psi (359 MPa) and it has a Tensile Strength (rolled-H04 for flat products/ hard drawn-H80 for tubing) of 78000 psi (538 MPa). Alloy of copper and nickel is called Copper Nickel tubing and it has very high resistance to corrosion in seawater. Though cuni finned tubing has similar corrosion resistance to that of copper, it has better fatigue strength and superior general strength. Because of its characteristics, such Cupro Nickel Seamless Tube is used in offshore fire water systems, evaporators used in power stations, cabled tubes for pneumatic lines and hydraulic lines and in cylinder cores in high-quality locks.
The Thermal Expansion Co-efficient of Copper Nickel Seamless Tubing (@20-300°C/68-572°F) is 9.00 µin/in °F (16.2 µm/m °C). Cu-Ni Tubes has an Elastic Modulus (C71500 annealed) of 22000 ksi (152 GPa). Copper nickel alloy tube chemical composition is Cu 71.25-76.5, Fe ≤ 0.20, Pb ≤0.050, Mn ≤ 1.0, Ni 23.5-26.5 and Zn ≤ 1.0. Copper Nickel Welded Tube has a Thermal Conductivity of 32.9 W/mK (0.0900 BTU in/hr.ft². °F) and it has a Rockwell B Hardness of 69. ASME SB466 Cupro Nickel Tube has superb formability, making for ease of bending and flaring. It offers trouble-free installation, longer life and it exhibits characteristics of reliability and safety. In the 19th century, jackets of bullets were coated with Copper nickel. At low temperatures, it has excellent thermal conductivity and as such it is used in a wide number of cryogenic applications. It is also used in heat exchangers, fasteners, feedwater heaters, silver-colored circulation coins, jewelry and in boat hulls.
| Trade Name | UNS | Copper Nickel Industry Specifications | Chemical Composition | Min.Tensile (KSI) |
Min.Yield (KSI) |
Elongation % |
| CuNi 90/10 | UNS C70600 UNS C70620 |
ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543 ASTM B111, B122, B151, B171, B359, B395, B432, B466, B467, B543, B608 DIN 2.0872 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463 |
Cu 88.6 min Pb .05 max* Fe 1.8 max Zn 1 max* Ni 9-11 max Mn 1.0 max |
38 | 15 | 30 |
| CuNi 90/10 | UNS C7060X | EEMUA 144 90/10, 145 90/10, 14 90/1 | Cu rem. Pb .01 max Fe 1.5-2.0 Zn 0.2 max P 0.2 max S 0.2 max Ni 10-11 Mn 0.5-1.0 |
40 | 15 | 30 |
| CuNi 70/30 | UNS C71500 UNS C71520 |
ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543 ASTM B111, B122, B151, B171, B359, B395, B432, B467, B543, B552, B608, F467, F468 DIN 2.0882 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463 |
Cu rem (65.0 min) Pb .05 max* Fe 0.4-1.0 Zn 1 max* Ni 29-33 Mn 1 max |
52 | 18 | 45 |
| CuNi 70/30 | UNS C71640 | ASTM B111, B543, B552 | Cu rem Pb .05 max* Fe 1.7-2.3 Zn 1 max* Ni 29-32 Mn 1.5-2.5 |
63 | 25 | – |
,,
