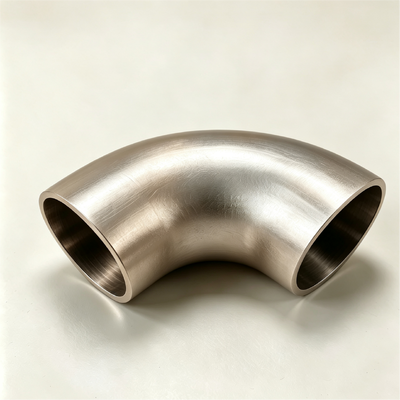

Cupro Nickel 70/30 Elbow Seawater Corrosion Resistant Butt Weld Fittings ASME B16.9
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Elbow |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | Cupro Nickel 70/30 Elbow Seawater Corrosion Resistant Butt Weld Fittings ASME B16.9 | Manufacturingprocess | Hot Forming And Cold Forming |
|---|---|---|---|
| Thickness | 2.5MM-19MM | Commongrades | 70/30, 90/10 |
| Pressure Class | 3000 Psi | Processing Technology | Forging |
| Surface Treatment | Polished | Temperature Level | High Temperature |
| Advantage | Convenient Installation And Maintenance | Type | Copper Nickel Elbow |
| Paking | Wooden Case |
Product Description
Cupro Nickel 70/30 Elbow Seawater Corrosion Resistant Butt Weld Fittings ASME B16.9
1.Product Description
Copper Nickel Elbows are manufactured from Cu-Ni alloys (C70600 90/10 or C71500 70/30) for pipeline directional changes. Standard angles are 45°, 90°, and 180°, with Long Radius (1.5D) and Short Radius (1.0D) types. Manufacturing includes seamless push‑forming, hot extrusion, and welded forming. End connections are butt‑weld, socket‑weld, or threaded. Products comply with ASME B16.9, DIN 86090, and EEMUA 146.
2.Product Applications
-
Marine & Offshore: Seawater cooling, ballast water, firewater systems
-
Petrochemical: Oil/gas transmission, chemical media lines
-
Power & Energy: Circulating water, condenser piping, nuclear plants
-
Desalination: Desalination plant networks
-
Others: HVAC, pharmaceutical, water treatment
3.Product Advantages
-
Excellent seawater corrosion resistance, service life over 20 years
-
Natural anti‑biofouling, no coating or cleaning required
-
High strength, erosion‑resistant, and vibration‑resistant
-
Good weldability with same‑grade piping materials
-
Lower lifecycle cost than coated carbon steel solutions
-
Full size range and non‑standard customization available
4.Product Functions
-
Change flow direction by 45° to 180°
-
Smooth inner surface reduces flow resistance and energy loss
-
Absorb thermal expansion and vibration to buffer piping stress
-
Facilitate system cleaning, draining, and maintenance access
5.Key Product Specifications
| Item | Data |
| Material Grades | C70600 (90/10), C71500 (70/30) |
| Size Range | DN15 ~ DN600 (1/2″~24″) |
| Wall Thickness | Sch5S ~ XXS |
| Bend Angles | 45°, 90°, 180° (custom available) |
| Bend Radius | Long R=1.5D, Short R=1.0D |
| Connection Types | Butt-weld, Socket weld, Threaded |
| Operating Temp. | -20°C ~ 300°C |
| Pressure Ratings | Class 150 / 300 / 3000, etc. |
| Standards | ASME B16.9, DIN 86090, EEMUA 146 |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
