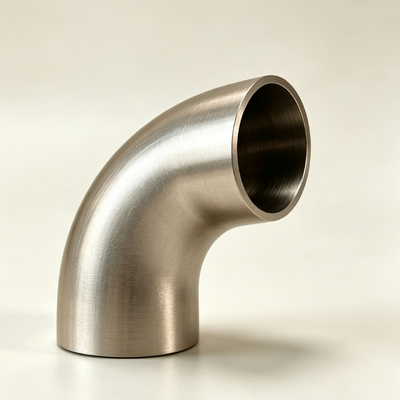

CuNi 70/30 Copper Nickel Elbow ASME B16.9 90 Degree LR Butt Weld Pipe Fittings Marine Grade

Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Copper Nickel Elbow
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10Ton/Month
Product Details
Product Name CuNi 70/30 Copper Nickel Elbow ASME B16.9 90 Degree LR Butt Weld Pipe Fittings Marine Grade Temper Soft, Half Hard, Hard
End Connection Butt Weld, Socket Weld, Threaded Degree 45,90,180
Type LR Elbow / SR Elbow Corrosionresistance High Resistance To Seawater Corrosion
Pressure Rating 150 - 3000 PSI Product Copper Nickel Elbow
Payment Term T/T, L/C, Etc. Surface Treatment Polished
Joiningmethod Butt Weld Or Socket Weld
Highlight

CuNi 70/30 copper nickel elbow

,

marine grade butt weld pipe fittings

,

ASME B16.9 90 degree LR elbow

Leave a Message
Product Description

CuNi 70/30 Copper Nickel Elbow ASME B16.9 90 Degree LR Butt Weld Pipe Fittings Marine Grade



1.Product Description

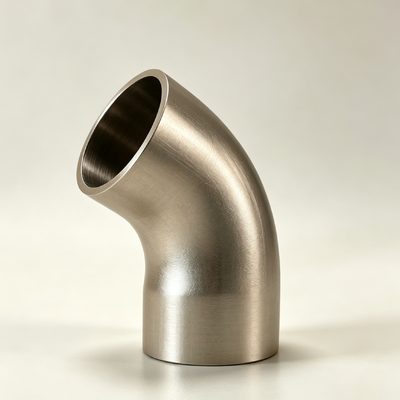

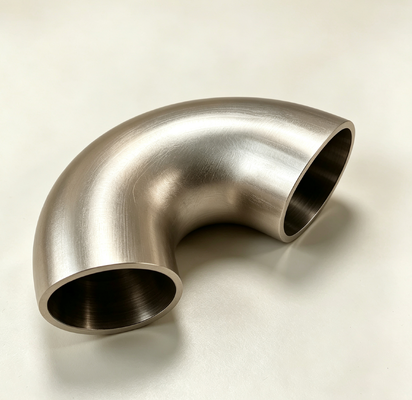

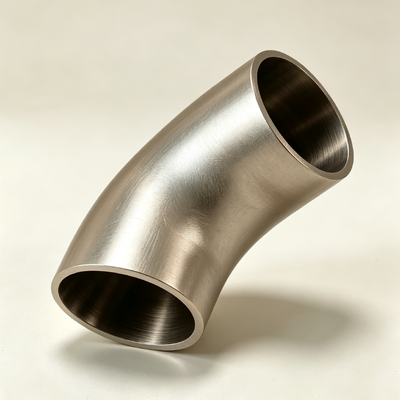

The Copper Nickel Elbow is a high-performance pipe fitting manufactured from copper-nickel alloy (CuNi), primarily used to change the direction of fluid flow in piping systems. It features a characteristic "L"-shaped curved design, with common bending angles of 45° and 90°, and can also be customized to 180° and other special angles.

The main material grades include UNS C70600 (90/10 copper-nickel, approximately 90% copper and 10% nickel) and UNS C71500 (70/30 copper-nickel, approximately 70% copper and 30% nickel). Manufacturing processes include forging, hot extrusion, seamless push-forming, and medium-frequency hot bending, available in butt-weld, socket-weld, and threaded connection types. Products strictly comply with international standards such as ASTM B16.9, ASME B16.9, DIN 86090, and EEMUA 146.

2.Product Applications

Copper Nickel Elbows are widely used in the following fields:

  • Marine & Offshore Engineering: Ship seawater cooling systems, ballast water pipelines, offshore platforms, and offshore wind power facilities

  • Petrochemical Industry: Oil and gas transmission pipelines, chemical media pipelines, and anti-corrosion wastewater pipelines

  • Power & Energy: Power plant condensers, heat exchangers, condenser piping, and nuclear power plants

  • Desalination: Desalination plant pipeline networks

  • HVAC Systems

  • Other Industries: Pharmaceutical, papermaking, water treatment, construction, and more

The product is primarily used to connect two pipes and change flow direction, suitable for seawater, fresh water, steam, oil, and various other media.

3.Product Advantages

  1. Superior Corrosion Resistance: Copper-nickel alloy offers exceptional resistance to seawater, salt spray, and chloride ions. The corrosion rate in seawater is extremely low (typically 0.025-0.05 mm/year for CuNi19 alloy), with corrosion resistance 3 to 5 times higher than that of ordinary stainless steel.

  2. Excellent Biofouling Resistance: The alloy surface effectively inhibits marine organism attachment, reducing cleaning frequency and maintenance costs.

  3. Superior Mechanical Properties: High strength, excellent resistance to water scouring and vibration. C70600 tensile strength ≥290 MPa, C71500 tensile strength ≥370 MPa.

  4. Excellent Weldability: High compatibility with copper-nickel pipes, providing strong and reliable welded joints with leak-free connections.

  5. Long Service Life & Low Maintenance: Exceptional corrosion resistance and durability significantly extend product lifespan and reduce lifecycle costs.

  6. Compliant with Multiple International Standards: Manufactured in accordance with ASTM/ASME B16.9, DIN 86090, EEMUA 146 and other standards, ensuring global compatibility and interchangeability.

  7. Comprehensive Specifications & Customization: Size range covers DN15-DN600, with support for non-standard sizes, special wall thicknesses, and custom angles.

CuNi 70/30 Copper Nickel Elbow ASME B16.9 90 Degree LR Butt Weld Pipe Fittings Marine Grade

​4.Key Product Specifications



Parameter Specification Range
Material Grades UNS C70600 (CuNi90/10), UNS C71500 (CuNi70/30)
Chemical Composition C70600: Cu≥86.0%, Ni 9.0-11.0%, Fe 1.0-1.8%, Mn 0.5-1.0%; C71500: Cu≥63.0%, Ni 29.0-33.0%, Fe 0.40-0.70%, Mn 0.4-1.0%
Bend Angles 45°, 90°, 180° (other angles customizable)
Elbow Types Long Radius (R=1.5D), Short Radius (R=1.0D)
Size Range DN15-DN600 (1/2"-24")
Wall Thickness Sch5S, Sch10S, Sch40S, Sch80S to XXS
Connection Types Butt-Weld (BW), Socket-Weld (SW), Threaded
Standards ASME B16.9, ASTM B16.9, DIN 86090, EEMUA 146, GB/T 12459, etc.
Material Standards ASTM B122, B171, B466, B467
Mechanical Properties C70600: Tensile≥290MPa, Yield≥110MPa; C71500: Tensile≥370MPa, Yield≥130MPa
Pressure Ratings 10 bar, 14 bar, Class 150, Class 300, Class 3000, etc.
Operating Temperature -20°C to 300°C (some models up to 450°F/~232°C)
Dimensional Tolerances OD: ±0.8mm to ±2.4mm; WT: +12.5%/-0%; Angle: ±0.5° to ±1.0°
