CuNi 70/30 Copper Nickel Rod Antifouling Seawater Corrosion Resistant C71500
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Bar |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10 Ton/Month |
Product Details
| Product Name | CuNi 70/30 Copper Nickel Rod Antifouling Seawater Corrosion Resistant C71500 | Customized Support | OEM |
|---|---|---|---|
| Application | Bar | Composition | 90% Copper, 10% Nickel |
| Material | Copper Nickel | Tolerance | Customizable |
| Elongation | 40% | Dimensions | Customizable Length And Diameter |
| Head Code | Round | Nickelcontent | 10% - 30% |
| Payment Term | L/C T/T (30% Deposit) | Surface | Bright / Black |
| Size | Customized | Yield Strength | 275 N/mm2 (min) |
| Corrosion Resistance | High | Thermalconductivity | 30 - 40 W/m·K |
Product Description

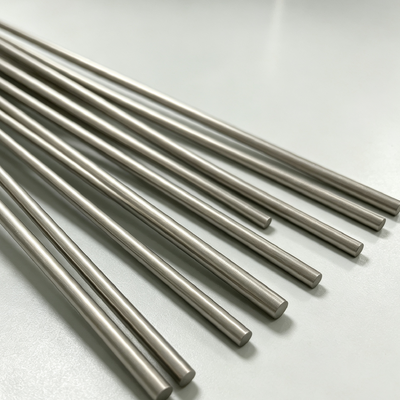

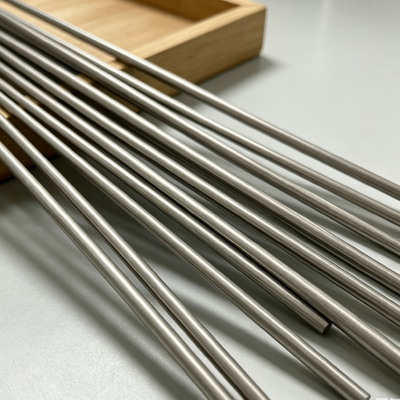

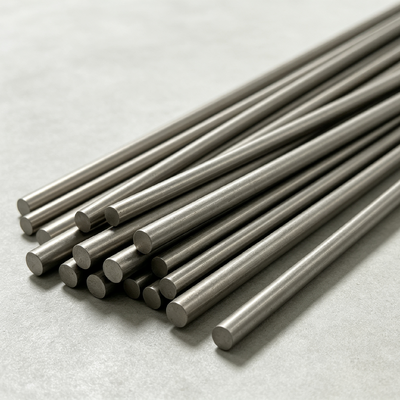

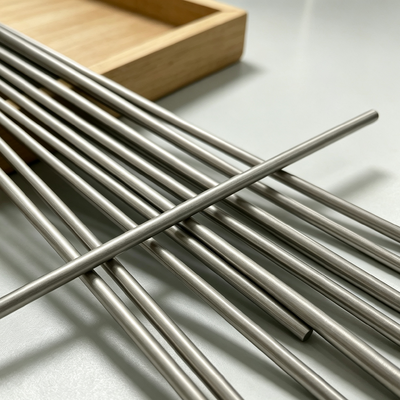

CuNi 70/30 Copper Nickel Rod Antifouling Seawater Corrosion Resistant C71500
1.Product Description
Copper nickel bar is a solid rod product based on copper with nickel as the primary alloy. Typical grades include CuNi10 (10% Ni), CuNi14 (14% Ni), C70600 (90/10 cupronickel), and C71500 (70/30 cupronickel). Manufactured via vacuum melting, hot extrusion, and precision cold drawing, the bars offer tight dimensional tolerances (down to ±0.05 mm in diameter) and a smooth, oxide-free surface. Compliant with ASTM B151, EN 12163, GB/T 4423, and other standards.
2.Product Applications
-
Marine engineering:Seawater cooling pipelines, pump and valve bushings, heat exchanger tube sheets, propeller shaft sleeves.
-
Chemical equipment:Corrosion-resistant flanges, fasteners, agitator shafts for reactors, evaporator parts.
-
Electrical & power:Resistance elements for low-voltage devices, thermocouple protection tubes.
-
Precision manufacturing:Automotive hydraulic brake tubes, precision shafts for instruments, sensor housings.
3.Product Advantages
-
Seawater corrosion and erosion resistance:Forms a dense passive film; corrosion rate in flowing seawater < 0.025 mm/year, with excellent cavitation resistance.
-
High strength and toughness:Tensile strength ≥ 480 MPa (C71500), elongation ≥ 30%, combining rigidity with impact resistance.
-
Excellent workability:Good hot/cold formability; easy to turn, drill, tap; stable weldability (TIG, resistance welding).
-
Stable resistivity and thermal conductivity:Resistivity ~0.5 μΩ·m, thermal conductivity 30–75 W/(m·K), suitable for combined heating and cooling applications.
-
Low-temperature toughness:Maintains good impact toughness even at -200°C, suitable for LNG and deep-sea equipment.
4.Product Specifications
| Parameter | CuNi10 | CuNi14 | CuNi19 | C70600 (90/10) | C71500 (70/30) |
| Chemical Composition | |||||
| Copper (Cu) Content | ~90% | Balance | ~81% | ≥55% | ≥65% |
| Nickel (Ni) Content | ~10% | ~14% | ~19% | ≥29% | 29-33% |
| Iron (Fe) Content | - | Trace | - | ≤0.3% | 0.4-1.0% |
| Manganese (Mn) Content | ≤0.5% | Trace | - | ≤0.3% | ≤1.0% |
| Physical Properties | |||||
| Density (g/cm³) | 8.87 | 8.8-8.95 | 8.9 | 8.9 | 8.94 |
| Melting Point (℃) | 1100-1200 | - | - | ~1220 | ~1240 |
| Electrical Conductivity (%IACS) | - | - | 20-22 | ~30 | ~10 |
| Thermal Conductivity (W/m·K) | 75 | ~75 | 38 | - | 29.1 |
| Mechanical Properties | |||||
| Tensile Strength (MPa) | ≥450 | 430-520 | 380-480 | ≥510 | 380-620 |
| Yield Strength (MPa) | ≥275 | 170-260 | 200-250 | ≥260 | - |
| Elongation (%) | - | 20-40 | 35-40 | ≥30 | ~30 |
Note: The above parameters are typical values; actual values may vary depending on grade, processing condition, and applicable standards. Diameter range is typically 6mm to 300mm, with length customizable upon request.
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
