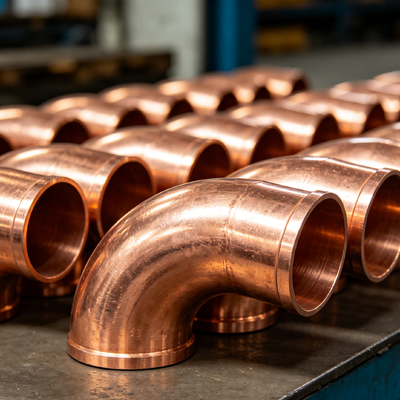

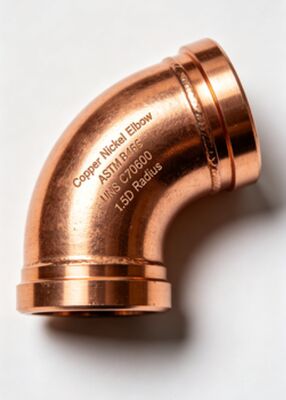

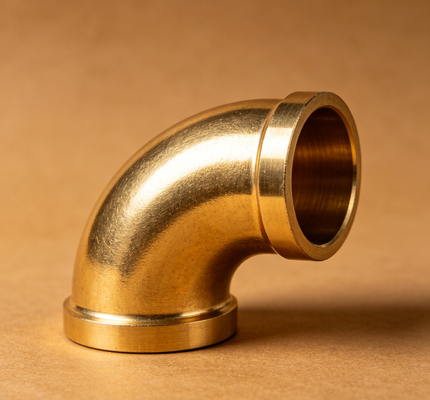

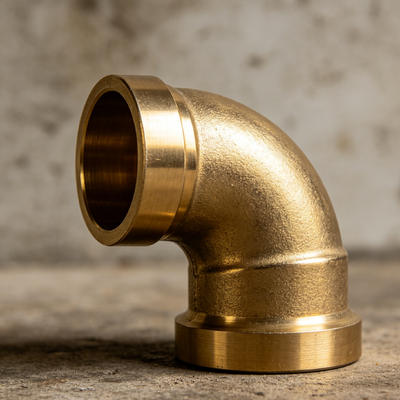

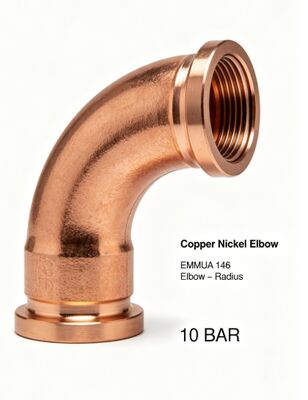

ASTM B466 C70600 Copper Nickel 90/10 Elbow, Seawater Corrosion Resistant Tube Fitting for Marine Piping

ASTM B466 C70600 Copper Nickel 90/10 Elbow, Seawater Corrosion Resistant Tube Fitting for Marine Piping

1. Product Overview

The Copper Nickel 90/10 Elbow (C70600) is a high-performance pipe fitting designed for critical fluid conveyance systems. Manufactured from corrosion-resistant cupronickel alloy, this elbow features a 90-degree angled configuration to effectively redirect fluid flow in piping networks. Available in both seamless and forged construction, it ensures reliable performance under high-pressure and high-temperature conditions. Ideal for marine, offshore, and industrial hydraulic applications, our CuNi elbows strictly comply with ASTM B466 standards, guaranteeing dimensional accuracy and material integrity.

2. Key Technical Parameters

3. Applications

This copper nickel elbow is widely used in:

• Marine Piping Systems – shipbuilding, ballast water lines, cooling systems

• Seawater Desalination Plants – reverse osmosis feed lines, brine discharge

• Offshore Oil & Gas Platforms – hydraulic control lines, firewater systems

• Industrial Hydraulic Equipment – high-pressure fluid transmission

• Heat Exchanger & Condenser Tube Networks

4. Key Advantages

• Superior Corrosion Resistance – Excellent performance against seawater, brackish water, and chloride-induced pitting, far outperforming carbon steel and pure copper.

• Anti-Biofouling Properties – The natural copper content inhibits marine organism adhesion, reducing maintenance frequency.

• High Strength & Durability – Seamless forged construction ensures mechanical strength under extreme pressures and vibrations.

• Long Service Life – Up to 20-30 years in marine environments with minimal degradation.

• Full Traceability – Each batch comes with mill test certificates (MTC) per EN 10204 3.1.

5. Product Functions

• Flow Direction Change – Redirects fluid flow at precise 45°/90°/180° angles to accommodate piping layout requirements.

• Pressure Maintenance – Maintains system pressure integrity without leakage at connection points.

• System Flexibility – Allows pipeline routing around obstacles and space constraints in compact equipment layouts.

• Corrosion Barrier – Protects downstream equipment by minimizing internal corrosion and scaling.

6. Usage Instructions

1. Inspection – Before installation, check for surface defects, dimensional accuracy, and thread integrity.

2. Preparation – Clean pipe ends and fitting sockets thoroughly to remove debris, oil, or moisture.

3. Installation (Threaded Type) – Apply appropriate thread sealant or PTFE tape on male threads. Tighten to recommended torque values (do not over-tighten to avoid cracking).

4. Installation (Welding Type) – Follow qualified welding procedure specifications (WPS). Preheating is generally not required for CuNi alloys but ensure interpass temperature below 150°C.

5. Post-Installation – Conduct hydrostatic pressure testing at 1.5x working pressure to verify joint integrity.

6. Regular Maintenance – Periodically inspect for erosion, galvanic corrosion, or mechanical damage.

7. Shipping & Delivery

• Lead Time – 15-30 working days for standard sizes; 20–30 days for customized orders.

• Shipping Method – By sea freight (FCL/LCL), air freight, or express courier (DHL/FedEx/UPS) based on order quantity and urgency.

• Shipping Marks – Each carton/wooden case is labeled with product code, size, standard, and quantity.

• Documentation – Commercial invoice, packing list, bill of lading, certificate of origin, and mill test reports are provided with each shipment.

• Tracking – Tracking number and shipping schedule will be shared within 24 hours after dispatch.

8. Payment Terms

9. After-Sales Service – Returns, Exchanges & Warranty

• Warranty Period – 12 months from the date of shipment against manufacturing defects.

• Exchange Policy – Free replacement will be issued for any non-conforming products confirmed by our QC team. Return shipping costs borne by seller if defect is our responsibility.

• Defect Handling – In case of quality issues during use, please contact our technical support within 7 days with detailed failure analysis. We will provide repair recommendations or replacement accordingly.

• Customer Support – 24/7 online after-sales service. Response within 8 hours (excluding weekends).

• Note – Returns due to incorrect ordering (wrong size, angle, or material) by the customer are subject to a 20% restocking fee, and return freight is at buyer's expense.
