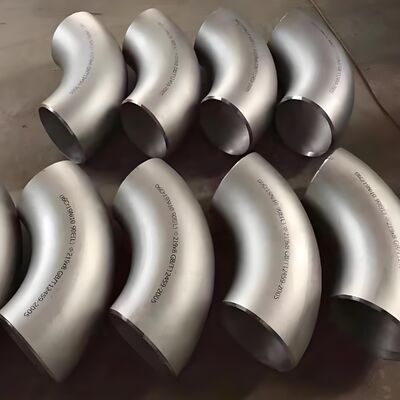

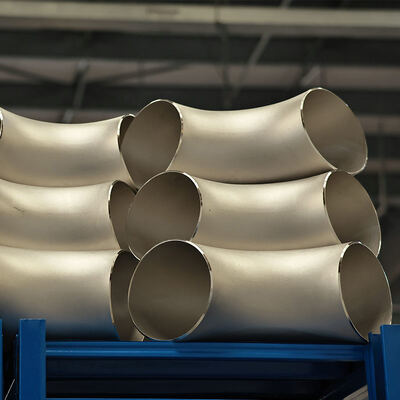

Heat Exchanger CuNi 70/30 Copper Nickel 1/2" Elbow, 90° LR SMLS ASME B16.9
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Elbow |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | Heat Exchanger CuNi 70/30 Copper Nickel 1/2" Elbow, 90° LR SMLS ASME B16.9 | Head Type | Round |
|---|---|---|---|
| Diameterrange | 1/2 Inch To 24 Inches | Length | Customized |
| Thickness | Customized | Manufacturingprocess | Hot Forming And Cold Bending |
| Mechanicalproperties | Good Tensile Strength And Ductility | Payment Term | T/T, L/C, Etc. |
| Corrosionresistance | High Resistance To Seawater Corrosion | Surface | Smooth |
| Paking | Wooden Case | Surface Treatment | Polished, Sandblasting, Pickling |
| Highlight | Copper Nickel 90° elbow,CuNi 70/30 heat exchanger elbow,ASME B16.9 seamless elbow |
||
Product Description
Heat Exchanger CuNi 70/30 Copper Nickel 1/2" Elbow, 90° LR SMLS ASME B16.9
1. Product Description
Copper nickel elbows are directional pipe fittings made of copper-nickel alloy, primarily grades C70600 (90/10) and C71500 (70/30). Manufactured by precision forging and annealing processes, they have a uniform internal structure with no residual stress. With outstanding seawater corrosion resistance, anti-fouling properties, and excellent weldability, these elbows are an ideal choice for piping systems under severe service conditions.
2.Product Applications
-
Ships & offshore platforms: Seawater cooling lines, ballast systems, firefighting water networks.
-
Desalination plants: Seawater transmission pipelines in RO and MSF processes.
-
Power facilities: Auxiliary cooling circuits in nuclear and thermal power plants.
-
Petrochemical industry: Corrosive media pipelines containing chlorides or sulfides.
-
Heat exchange equipment: Connecting pipes for heat exchangers and condensers.
3.Product Functions
-

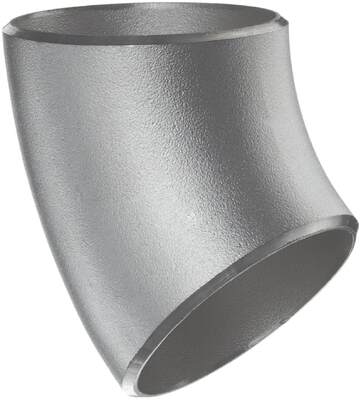

Direct fluid to follow designed angles (45°/90°/180°) to accommodate complex pipeline routing.
-
Maintain smooth flow and reduce vortex formation and pressure loss at bends.
-
Act as joint components in pipeline networks, working with straight pipes, flanges, tees, reducers, etc.
-
Provide long-term barrier against medium attack in corrosive environments, preventing leakage incidents.
4.Key Parameters
| Parameter | Specification |
| Material Grades | C70600, C71500 |
| Size Range | DN6 ~ DN600 (1/4″ ~ 24″) |
| Bend Angle | 45°, 90°, 180° (other angles negotiable) |
| Bend Radius | Long radius 1.5D, Short radius 1.0D |
| Pressure Class | 150LB, 300LB, 600LB |
| Service Temperature | -30℃ to 280℃ |
| Manufacturing Standards | ASME B16.9, DIN 86090, GB/T 12459 |
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
