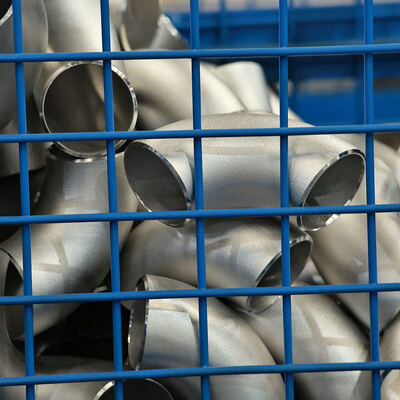

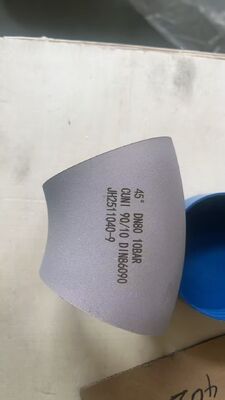

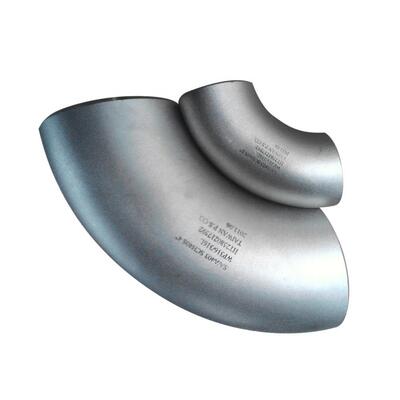

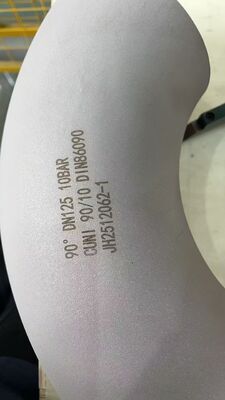

ASME B16.11 Copper Nickel 2.5D Long Radius Elbow, Class 3000, Forged, Socket-Weld or NPT Threaded Ends

Product Description:

Product Description – Copper Nickel 2.5D Long Radius Elbow (ASME B16.9, Class 3000)

This forged elbow is manufactured in accordance with ASME B16.11, the standard for high‑pressure socket‑weld and threaded fittings. Made from premium copper‑nickel alloy (typically UNS C70600 or CuNi90/10), it provides exceptional resistance to seawater corrosion, erosion, and biofouling, making it ideal for marine, offshore, chemical, and oil‑gas applications.

The elbow features a 2.5D long‑radius bend – 2.5 times the nominal pipe size. This larger radius significantly reduces flow turbulence, pressure drop, and erosion compared to standard 1.5D elbows, especially in high‑velocity or abrasive fluid systems. Rated Class 3000, it is designed for high‑pressure service up to 3000 psi (depending on size and temperature). The fitting is available with socket‑weld ends or NPT threaded ends, offering flexible installation options without heavy welding.

Forged construction ensures superior strength, uniformity, and reliability. Common applications include hydraulic lines, seawater cooling systems, chemical injection lines, and instrumentation piping. Custom sizes, schedules, and end types (BSP threads) are available upon request.

Features:

The Copper Nickel Elbow fitting, manufactured by TOBO, is a highly versatile and reliable solution for various piping systems. It is commonly used in industries such as marine, oil and gas, chemical, and power generation. This product boasts of its top-notch quality and excellent performance, making it a preferred choice for many customers.

The Copper Nickel Elbow Fitting, also known as a 90-degree elbow, is primarily used to change the direction of fluid flow in a piping system. It is designed to connect two pipes at a 90-degree angle, allowing smooth and efficient flow of liquids or gases. This product is suitable for various applications, including:

• Shipbuilding: The marine industry requires highly reliable and durable piping systems that can withstand harsh and corrosive seawater environments. The Copper Nickel Elbow fitting is an ideal choice for such applications as it is made from high-quality copper nickel material, which has excellent resistance to corrosion and seawater erosion.
• Petrochemicals: The oil and gas industry deals with various corrosive and high-pressure fluids, making it crucial to have robust and corrosion-resistant piping systems. The Copper Nickel Elbow fitting is a perfect fit for this sector, as it can withstand extreme temperatures and has exceptional resistance to corrosion and erosion.
• Chemical Processing: In chemical plants, the Copper Nickel Elbow fitting is widely used to transport corrosive chemicals safely and efficiently. Its superior resistance to corrosion and high temperatures makes it an ideal choice for handling various chemical substances.
• Power Generation: Power plants require piping systems that can handle high pressure and temperature conditions. The Copper Nickel Elbow fitting, with its excellent strength and corrosion resistance, is widely used in power generation applications.

Let's consider a scenario where a shipbuilding company is in need of a reliable and durable piping system to transport seawater and other fluids. They come across TOBO Copper Nickel Elbow fitting and decide to try it out. Here's how they benefit from this product:

• High-Quality Material: The Copper Nickel Elbow fitting is made from top-grade copper nickel material, which has excellent corrosion resistance and can withstand harsh seawater conditions. It ensures the longevity and durability of the piping system.
• Customized Size: The company can get the Copper Nickel Elbow fitting in a customized size as per their specific requirements. This ensures a perfect fit and reduces the risk of leakages or failures.
• Certification: The product is certified by ANSI B16.9/DIN/JIS, ensuring its quality and reliability. This gives the company peace of mind and confidence in using the product.

Customization:

• Brand Name: TOBO
• Model Number: Copper Nickel Elbow
• Place of Origin: CHINA
• Certification: ANSI B16.9/DIN/JIS
• Minimum Order Quantity: 1pcs
• Price: Negotiable
• Packaging Details: standard shipping package
• Delivery Time: 15-21 work day
• Payment Terms: L/C, T/T, Western Union
• Supply Ability: 100tons/month
• Pressure: High Pressure
• Application: Pipe Fitting
• Shape: Elbow
• Surface Treatment: Polishing
• MOQ: 1 Piece

At TOBO, we understand that every project is unique and requires a tailored solution. That's why we offer a customized service for our Copper Nickel Elbow, designed to meet your specific needs and requirements.

With over [insert number] years of experience in the industry, we are confident in our ability to provide high-quality and reliable Copper Nickel Elbow that will exceed your expectations. Our commitment to customer satisfaction drives us to offer a comprehensive customization service that covers every aspect of the product, from design to delivery.

Our Copper Nickel Elbow is manufactured in our state-of-the-art facility in CHINA, and is certified to meet ANSI B16.9, DIN, and JIS standards for maximum performance and safety. We also offer a competitive price and flexible minimum order quantity of 1 piece to suit your budget and project size.

When you choose our customization service for Copper Nickel Elbow, you can expect:

• Expert consultation and design assistance
• High-quality materials and precision manufacturing
• Quick turnaround time of 15-21 work days
• Various payment options including L/C, T/T, and Western Union
• Secure and reliable packaging for shipping
• Efficient and timely delivery
• Responsive and attentive customer service

Our Copper Nickel Elbow is suitable for high-pressure applications and is designed to provide a tight and leak-free connection in your piping system. Its polished surface treatment adds a professional and sleek look, making it an ideal choice for various industries and projects.

Don't settle for a one-size-fits-all solution, choose TOBO's customization service for Copper Nickel Elbow and get a product that is tailored to your specific needs. Contact us today to learn more and get a quote for your project!
