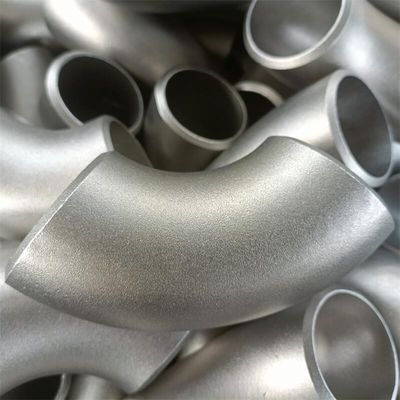

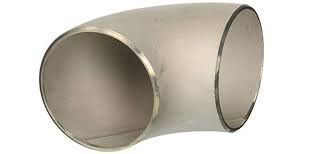

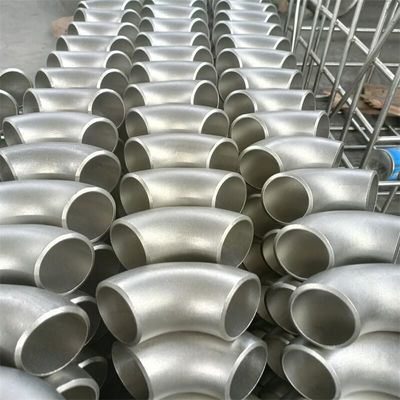

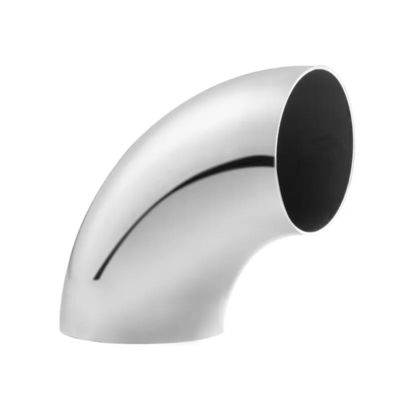

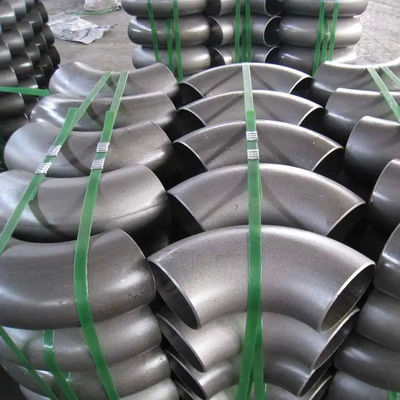

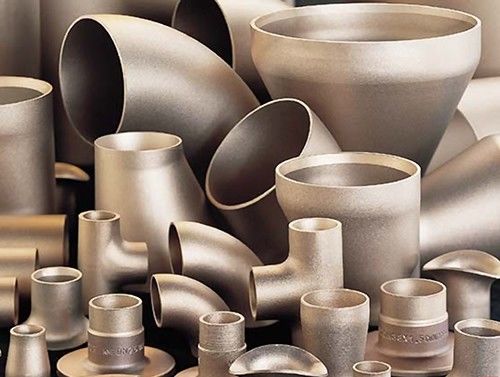

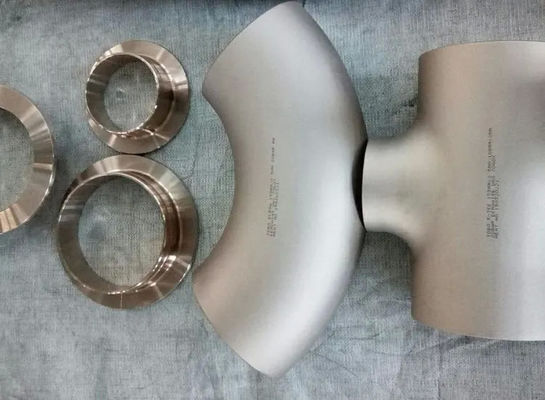

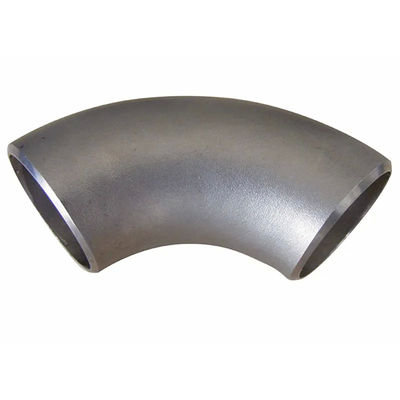

1-24" Seamless Copper Nickel Elbow 45/90/180°, EEMUA C70600 CuNi 90/10 70/30
| Place of Origin | China |
|---|---|
| Brand Name | METAL |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | Copper Nickel Elbow |
| Minimum Order Quantity | 1pcs |
| Price | Depending on quantity |

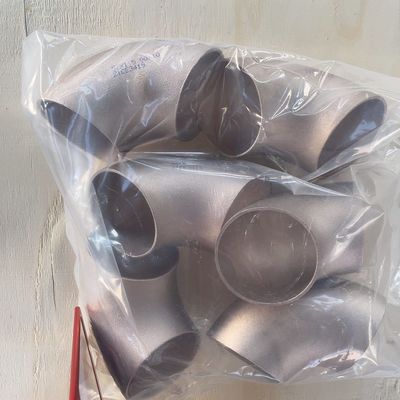

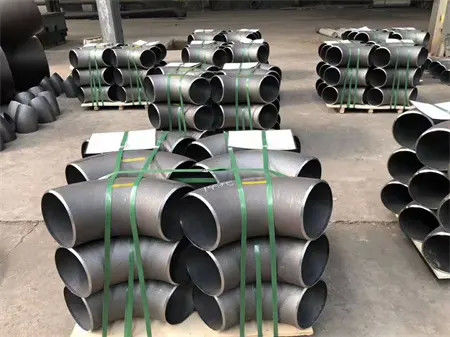

| Packaging Details | Standard export sea-worthy packing |
| Delivery Time | 25-30 days depending on quantity |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 3,0000pcs per month |
Product Details
| Product Name | Copper Nickel Elbow | Standards | ASTM B466, ASTM B111, ASTM B122 |
|---|---|---|---|
| Connection | Welding | Installation Method | Butt Weld |
| Product Type | Copper Nickel Elbow | Size | 1/2'~50'(DN10~DN1200) |
| Corrosionresistance | High Resistance To Seawater Corrosion | Pressurerating | Up To 3000 Psi (varies By Size And Schedule) |
| Material | Copper Nickel Alloy (CuNi 70/30 Or CuNi 90/10) | Certifications | ASME B16.9, ASTM B466, ASTM B467 |
| Pressure | High | Pressure Class | 3000 Psi |
| Head Type | Round | Sizerange | 1/2 Inch To 48 Inches |
| Technics | Forged |
Product Description
1-24" Seamless Copper Nickel Elbow 45/90/180°, EEMUA C70600 CuNi 90/10 70/30
Our 45/90/180 Degree 1-24" seamless elbows are strictly manufactured in compliance with EEMUA international standards, crafted from premium C70600 copper nickel alloy (available in CuNi 90/10 and CuNi 70/30 ratios). As seamless pipeline fittings, they are designed to meet the diverse connection needs of industrial pipeline systems, covering multiple angles and sizes to adapt to different pipeline direction changes and installation scenarios.
The core material C70600 copper nickel alloy is available in two common ratios: CuNi 90/10 (88.0%-90.0% copper, 9.0%-11.0% nickel) and CuNi 70/30 (68.0%-72.0% copper, 28.0%-32.0% nickel), both boasting excellent corrosion resistance—especially against seawater, chemical media and atmospheric oxidation. The seamless manufacturing process eliminates potential defects such as weld seams, ensuring uniform wall thickness, compact structure and high pressure-bearing capacity, suitable for high-pressure and high-temperature industrial environments.

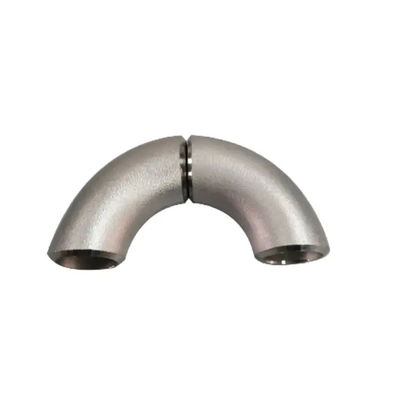

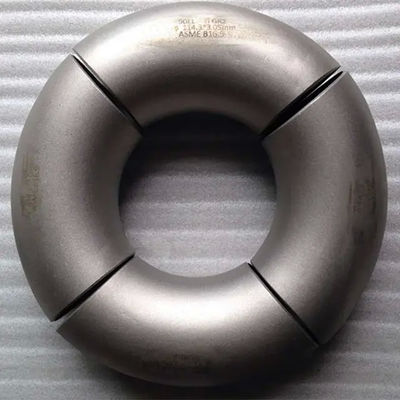

We offer three angle options (45°, 90°, 180°) and a wide size range (1"-24") to meet various pipeline layout requirements: 45° elbows for moderate direction changes, 90° elbows for right-angle turns, and 180° elbows for U-shaped pipeline connections. Each seamless elbow undergoes precision machining, ensuring accurate dimensions, smooth inner walls and tight tolerances, fully complying with EEMUA standard requirements for copper nickel seamless fittings, and perfectly matching 1"-24" standard pipelines.
All fittings undergo strict quality inspection, including material composition detection (XRF), dimensional accuracy verification, pressure resistance test and corrosion resistance test, and can provide EN10204 3.1 certification to ensure reliable performance and long service life. Widely applied in marine engineering, offshore platforms, chemical processing, seawater cooling systems and power plants, our EEMUA C70600 CuNi 90/10 70/30 seamless elbows (45/90/180°, 1-24") provide a safe, durable and cost-effective solution for global industrial customers, perfectly adapting to harsh corrosion and high-pressure pipeline connection scenarios.
Material Grade:
| Material Designation | Corresponding Material Symbol | ||||
| ASTM B111 | BS2871 | JIS H3300 | DIN1785 | GB/T 8890 | |
| Copper Nickel | C70600 | CN102 | C7060 | CuNi10Fe1Mn | BFe10-1-1 |
| C71500 | CN107 | C7150 | CuNi30Mn1Fe | BFe30-1-1 | |
| C71640 | CN108 | C7164 | CuNi30Fe2Mn2 | BFe30-2-2 | |
| C70400 | — | — | — | BFe5-1.5-0.5 | |
| — | — | — | — | B7 | |
| Aluminium Brass | C68700 | CZ110 | C6870 | CuZn20AL2 | HAL77-2 |
| Admiralty Brass | C44300 | CZ111 | C4430 | CuZn28Sn1 | HSn70-1 |
| Boric Brass | — | — | — | — | Hsn70-1B |
| — | — | — | — | Hsn70-1 AB | |
| Arsenical Brass | — | CZ126 | — | — | H68A |
| Brass Tube | C28000/C27200 | CZ108 | C2800/C2700 | CuZn36/CuZn37 | H65/H63 |
Copper Nickel C70600 is also known as Copper Nickel 90/10 because it is made up of 10% nickel or as ASTM B111 and ASME SB111. C70600 is known for its moderate strength, weldability, and formability. The inclusion of controlled quantities of iron and manganese also give the 90/10 alloy an extraordinary resistance to general corrosion and stress cracking, as well as to erosion and impingement due to turbulent water containing air bubbles and silt flowing at high velocities.
Application:
- Marine environments, power generation, offshore, oil & gas and defence sectors
- Drawn copper nickel tube
- Combines cold and hot working properties
- Highest degree of seawater corrosion and erosion
- Distillation and desalination plants
- Marine, coolers
- Heat exchanger
