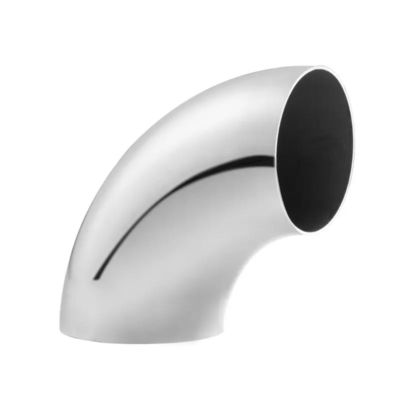

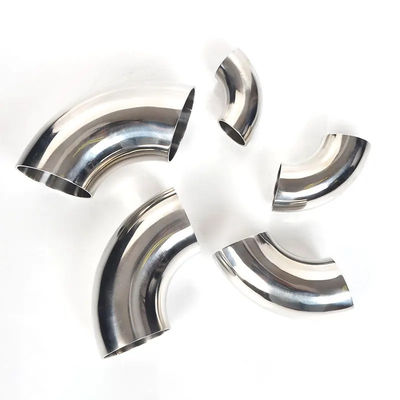

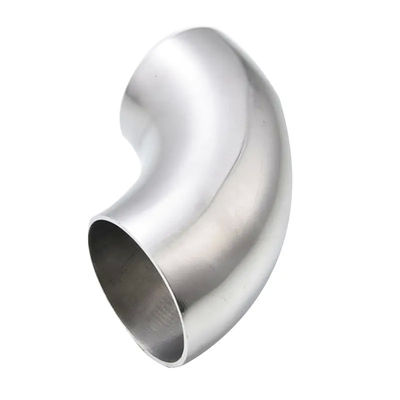

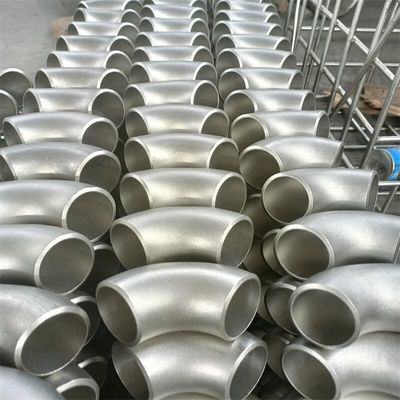

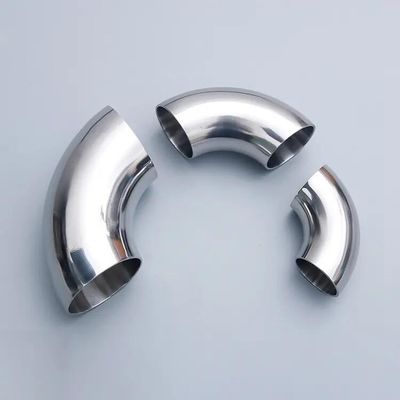

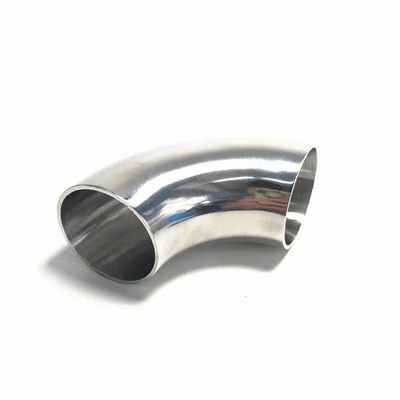

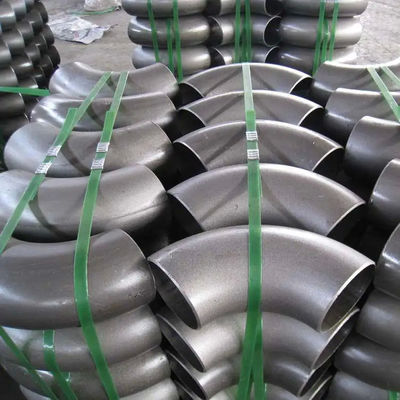

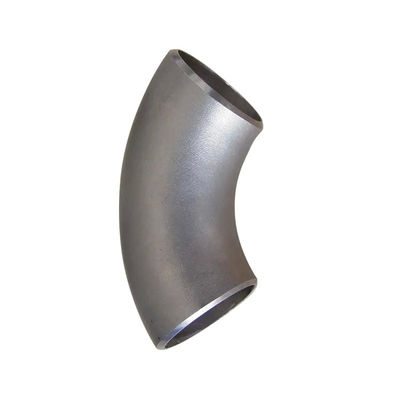

C70600 CuNi 9010 Butt Welding Elbow, EEMUA 146 Standard, BW LR Copper Nickel Fittings
| Place of Origin | China |
|---|---|
| Brand Name | TOBO Group |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | Copper Nickel Elbow |
| Minimum Order Quantity | 1pcs |
| Price | Depending on quantity |
| Packaging Details | Standard export sea-worthy packing |
| Delivery Time | 25-30 days depending on quantity |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 3,0000pcs per month |
Product Details
| Product Name | Copper Nickel Elbow | Temperature Rating | 400°F |
|---|---|---|---|
| Warranty | 1 Year | Connection Type | Elbow |
| Temperature Range | -20°C To 300°C | Package | Wooden Cases, Pallets, Etc. |
| Manufacturingprocess | Seamless Or Welded | Customized Support | OEM, ODM, OBM |
| Processing Technology | Forging | Applications | Marine, Oil And Gas, Chemical Processing |
| Pressure Class | 3000 Psi | Wallthickness | Standard Pipe Schedule Thicknesses (e.g., SCH 10, SCH 40) |
| Port | Shanghai, Ningbo, Etc. |
Product Description
C70600 CuNi 9010 Butt Welding Elbow, EEMUA 146 Standard, BW LR Copper Nickel Fittings
Our EEMUA 146 C70600 CuNi 9010 BW LR copper nickel elbow butt welding fittings are high-performance pipeline components, strictly manufactured in compliance with EEMUA 146 international standard (incorporated in PUB NO 234-2015 for offshore applications), crafted from premium C70600 (CuNi 9010) copper nickel alloy. Designed as butt welding (BW) long radius (LR) elbows, these fittings are specialized for industrial pipeline systems requiring reliable connection, corrosion resistance and stable fluid transmission, especially suitable for harsh marine and chemical environments.
The core material C70600 (CuNi 9010) is a high-quality copper-nickel alloy with nominal composition of 88.0%-90.0% copper, 9.0%-11.0% nickel, 1.0%-1.8% iron and 0.5%-1.0% manganese, boasting excellent seawater corrosion resistance (corrosion rate ＜0.025mm/year) and resistance to point corrosion, crevice corrosion and stress corrosion开裂. The long radius (LR) design (curvature radius = 1.5 times the pipe diameter) ensures smooth fluid flow, reduces flow resistance and pressure loss, making it ideal for high-pressure pipeline systems.
Adopting butt welding (BW) connection, these elbows provide a firm, leak-proof joint with high structural strength, suitable for high-pressure and high-temperature industrial piping systems. The welding performance is excellent, compatible with TIG/MIG welding processes, and the weld strength after welding is consistent with the base material without reducing corrosion resistance. Each elbow undergoes precision forging and machining, ensuring accurate dimensions, smooth inner walls and tight tolerances, fully complying with the dimensional requirements specified in EEMUA 146 standard for copper nickel butt welding fittings.
All fittings undergo strict quality inspection, including material composition detection (XRF), weld flaw detection (UT/PT), pressure resistance verification and corrosion resistance test, and can provide EN10204 3.1 certification to ensure reliable performance and long service life. Widely applied in marine engineering, offshore platforms, chemical processing, seawater cooling systems and power plants, our EEMUA 146 C70600 CuNi 9010 BW LR copper nickel elbow butt welding fittings provide a safe, durable and cost-effective solution for global industrial customers, perfectly matching the requirements of harsh corrosion and high-pressure pipeline connection scenarios.
| Type | Copper Nickel Pipe Fittings Cuni 7030 90 LR Elbow 6" 3.5MM Butt Welding Elbow |
| Standard | EEMUA 146 SEC.1 |
| Size | 1/2’’~16’(Seamless);16’’~36’’(Welded) |
| Wall thickness | 2.0-19.0mm |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | Carbon steel, stainless steel, alloy steel, duplex stainless, nickel alloy steel |
| Carbon steel | ASTM A234 WPB, WPC; |
| Stainless steel |
304/SUS304/UNS S30400/1.4301 |
| Alloy steel |
ASTM A234 WP5/WP9/WP11/WP12/WP22/WP91; |
| Duplex steel |
ASTM A182 F51/S31803/1.4462; |
| Nickel alloy steel |
Alloy 200/Nickel 200/NO2200/2.4066/ASTM B366 WPN; |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FOB Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks |
Other materials and drawings are available. |
Introduction
Copper-Nickel Butt-Weld Pipe Fittings
Fittings weld flush against pipe, creating a strong connection that permits maximum flow. Fittings are also known as Pressure Class 200 fittings. They are copper-nickel, which has excellent resistance to stress cracking and better corrosion resistance than most stainless steel alloys. They are often used in highly-corrosive environments, such as salt water applications.
ANSI/ASME B16.9 ELBOW DIMENSIONS
ASME B16.9 Elbow Radius, 90 Degree Elbow Dimensions Chart, 45 Degree Elbow Dimensions
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
If you want to get more information of the products, send me e-mail or by skype, whatsapp etc.
.
If any questions,you can call me mobile phone at any times:0086-15710108231
