Seamless Elbow Cuni Steel Pipe Fittings UNS 70600
| Place of Origin | China |
|---|---|
| Brand Name | METAL |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | Butt Welding Fittings |
| Minimum Order Quantity | 1pcs |
| Price | Depending on quantity |

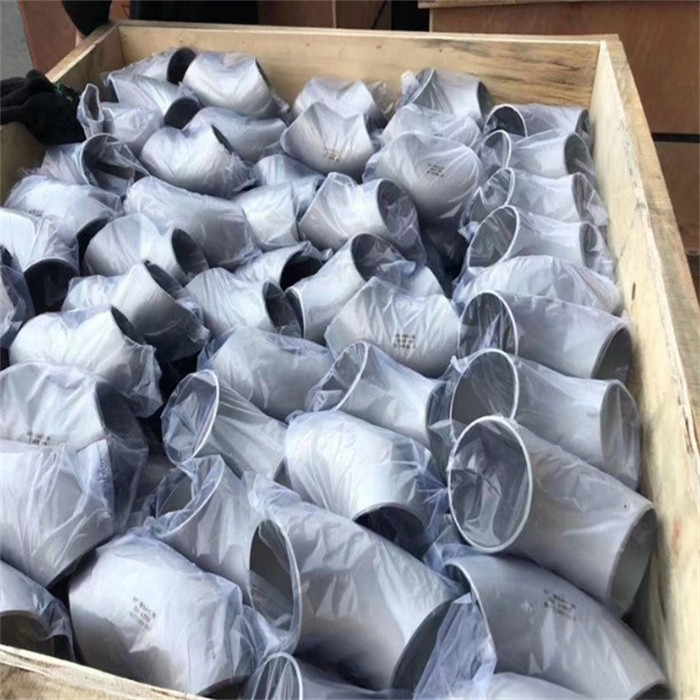

| Packaging Details | Standard export sea-worthy packing |
| Delivery Time | 25-30 days depending on quantity |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 3,0000pcs per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Reducing Tee | Material | UNS 70600 |
|---|---|---|---|
| Size | 1"-36" | Thickness | 2.5MM-19MM |
| Standard | EEMUA 146 SEC.2 | Place Of Origin | China |
| Highlight | UNS 70600 Seamless Elbow,Cuni Steel Pipe Fittings |
||
Product Description

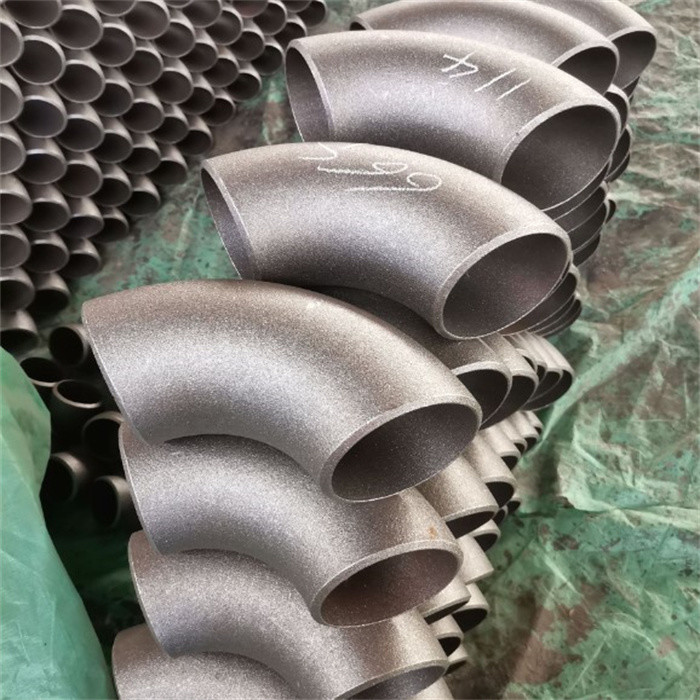

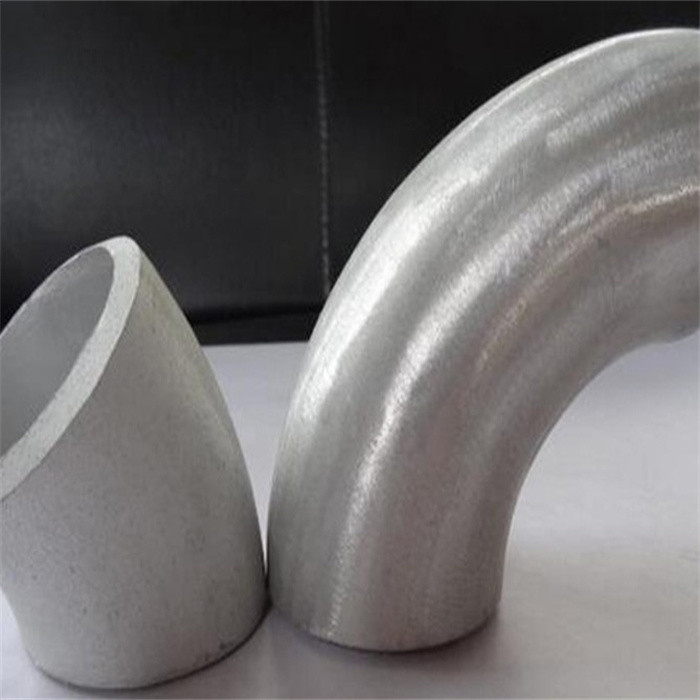

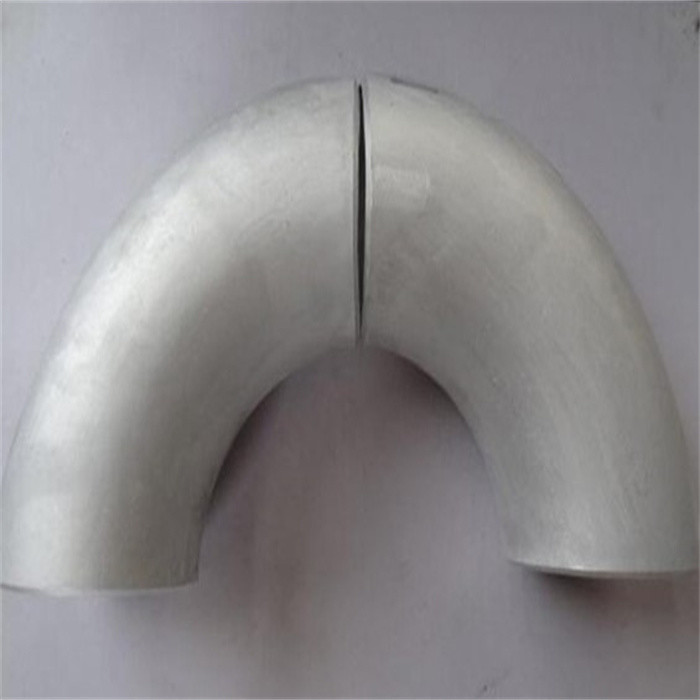

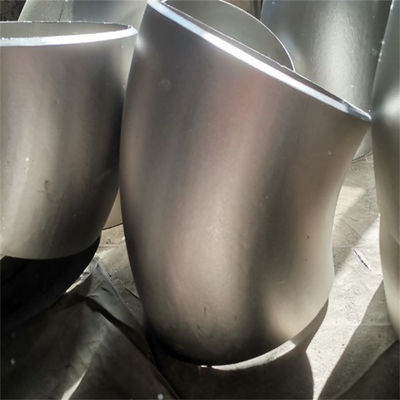

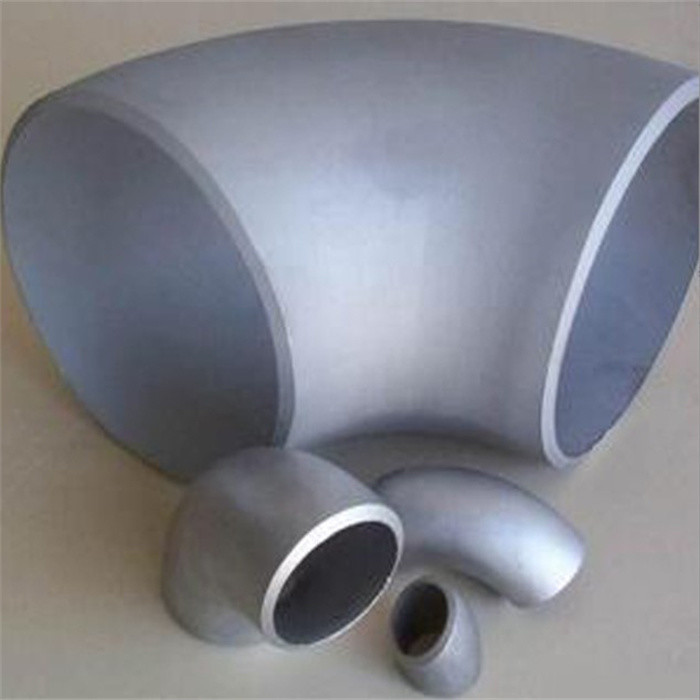

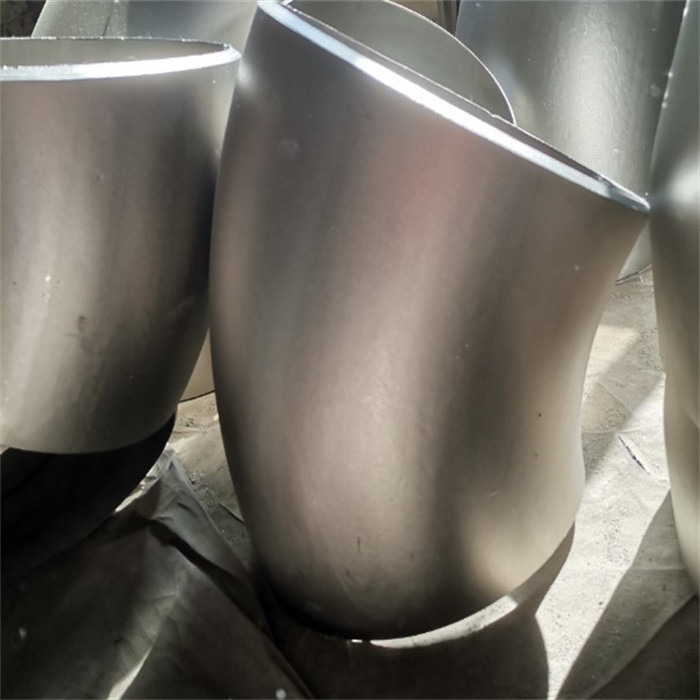

Seamless Elbow CUNI Steel Pipe Fittings Elbow UNS 70600
copper nickel fittings are fabricated from high-grade CuNi 90/10 or CuNi 70/30 material. It has excellent corrosion and erosion resistance, with better weldability.
COPPER NICKEL 90/10 ELBOW, 70/30 CUNI PIPE ELBOW SUPPLIER, EXPORTER OF CU-NI SHORT RADIUS ELBOW, CUNI 90/10 LONG RADIUS ELBOW, CUPRO NICKEL BUTTWELD ELBOW
Specifications
-
European Standard
-
10 bar & 14 bar
-
90/10 CuNi
-
DIN 86088, 86089 & 86090
-
Our copper nickel fittings are CuNi elbows, popular for superior corrosion resistance, high tensile strength, excellent erosion resistance and good machining properties. DIN 86090 is made from the best grade of CuNi 90/10 or CuNi 70/30 material, with an accurate balance of the chemical composition.DIN 86090 long radius elbow and DIN 86090 short radius elbow.
Dimensions : DIN 86090
Size : 1/2” to 24”,DN15-DN500
Type : Seamless / Welded
Pressure rate:10bar, 14bar
Deg:30,45,60,180
Grades : Copper Nickel 90/10 (C70600 ), CuNi10Fe1.6Mn, CuNi 90/10, 7060X
1. Pipe fittings Dimension Per DIN 86090
2. Process : Cold Forming
3. Heat Treatment : Annealing After Cold Forming
4. Temp & Hold Time : 750℃±50℃, 30Min / Inch(THK)
Material Grade:
| Material Designation | Corresponding Material Symbol | ||||
| ASTM B111 | BS2871 | JIS H3300 | DIN1785 | GB/T 8890 | |
| Copper Nickel | C70600 | CN102 | C7060 | CuNi10Fe1Mn | BFe10-1-1 |
| C71500 | CN107 | C7150 | CuNi30Mn1Fe | BFe30-1-1 | |
| C71640 | CN108 | C7164 | CuNi30Fe2Mn2 | BFe30-2-2 | |
| C70400 | — | — | — | BFe5-1.5-0.5 | |
| — | — | — | — | B7 | |
| Aluminium Brass | C68700 | CZ110 | C6870 | CuZn20AL2 | HAL77-2 |
| Admiralty Brass | C44300 | CZ111 | C4430 | CuZn28Sn1 | HSn70-1 |
| Boric Brass | — | — | — | — | Hsn70-1B |
| — | — | — | — | Hsn70-1 AB | |
| Arsenical Brass | — | CZ126 | — | — | H68A |
| Brass Tube | C28000/C27200 | CZ108 | C2800/C2700 | CuZn36/CuZn37 | H65/H63 |
Copper Nickel C70600 is also known as Copper Nickel 90/10 because it is made up of 10% nickel or as ASTM B111 and ASME SB111. C70600 is known for its moderate strength, weldability, and formability. The inclusion of controlled quantities of iron and manganese also give the 90/10 alloy an extraordinary resistance to general corrosion and stress cracking, as well as to erosion and impingement due to turbulent water containing air bubbles and silt flowing at high velocities.
Application:
- Marine environments, power generation, offshore, oil & gas and defence sectors
- Drawn copper nickel tube
- Combines cold and hot working properties
- Highest degree of seawater corrosion and erosion
- Distillation and desalination plants
- Marine, coolers
- Heat exchanger
