Eemua 234 UNS 7060x Seamless Straight Copper Nickel Tubing

Place of Origin	China
Brand Name	TOBO
Certification	SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number	Eemua 234 7060x
Minimum Order Quantity	1pc
Price	US $ 10 - 100 / Kilogram
Packaging Details	Seaworthy wooden cases or pallets tied by steel band or as per client's requirements
Delivery Time	15 days After Receiving the 30% Prepayment by T/T or LC
Payment Terms	L/C, T/T, Western Union
Supply Ability	50 Metric Ton/Metric Tons per Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Product Name	Copper Nickel Tube	Product Type	Straight Copper Pipe
Material	Copper Nickel	Grade	Eemua 234 7060x
Cu (Min)	70%	Application	Water Heater
Outside Diameter	19.05mm	Wall Thickness	2.5mm
Place Of Origin	China
Highlight	botai Straight copper nickel tubing , botai Seamless copper nickel tubing , botai 7060x nickel plated copper tubing

Leave a Message

Product Description

Eemua 234 UNS 7060x Thick Wall Pipe Seamless Pipe and UNS 7060x Welded Tube supplier In China

Quick Details

Standard:	ASTM, AISI, DIN, EN	Place of Origin:	Shanghai, China (Mainland)	Brand Name:	TOBO
Model Number:	COPPER NICKEL TUBE	Type:	Seamless	Steel Grade:	COPPER NICKEL TUBE
Application:	Heat Exchanger, Heat Exchanger	Certification:	ISO	Welding Line Type:	Seamless
Thickness:	0.5-8mm	Outer Diameter:	6-101.6mm	Product Type:	cuni tube
Finish:	Annealed	Technical:	Cold Drawn	Material:	CuNi10Fe1Mn
Certificate:	ISO	Qualtiy:	HIGH	Package:	Wooden Case
Ship:	By Sea	Place:	Shanghai China

Packaging & Delivery

Packaging Details:	POLY WOODEN CASE
Delivery Detail:	30 DAYS

Product Type:heat exchanger cuni tube

EEMUA 234 COPPER NICKEL PIPE DIMENSIONS

Outside Diameter (OD)			EEMUA 234 UNS 7060X Pipe
Outside Diameter (OD)			Pressure: 20 bar		Pressure: 16 bar
OD			Pipe Wall	Theoretical	Pipe Wall	Theoretical
OD			thickness	Weight	thickness	Weight
Imperial Nominal		Metric Actual
inch	DN	mm	mm	Kg/m	mm	Kg/m
1/8		10	1	0.26	1	0.26
1/4		12	1	0.31	1	0.31
3/8	10	16	2	0.79	2	0.79
1/2	15	20	2	1.01	2	1.01
3/4	20	25	2	1.3	2	1.3
1	25	30	2.5	1.93	2.5	1.93
1 1/4	32	38	2.5	2.5	2.5	2.5
1 1/2	40	44.5	2.5	2.95	2.5	2.95
2	50	57	2.5	3.83	2.5	3.83
2 1/2	65	76.1	2.5	5.17	2.5	5.17
3	80	88.9	2.5	6.07	2.5	6.07
4	100	108	3	8.85	3	8.85
5	125	133	3	10.95	3	10.95
6	150	159	3.5	15.29	3	13.14
7	175	193.7	3.5	18.7	3	16.07
8	200	219.1	4.5	27.12	4	24.17
10	250	267	5.5	40.39	4.5	33.18
12	300	323.9	7	62.3	5.5	49.18
14	350	368	8	80.89	6.5	65.99
16	400	419.1	9	103.64	7	81
18	450	457.2	9.5	119.45	8	100.93
20	500	508	11	153.54	8.5	119.24
24	600	610	13	217.97	10.5	176.79
28	700	711	15	293.22	12	235.58
32	800	813	17	380.06	13.5	303.14
36	900	914	19	477.6	15.5	391.14

EEMUA 234 UNS 7060X PIPE TOLERANCES

Diameter of Eemua 234 UNS 7060x Pipe	UNS 7060x Pipe Tolerances Inch (mm)
Over 2 to 3 Inch (50.8 to 76.2 mm), incl	0.005 (0.13)
Over 3 to 4 Inch (76.2 to 102mm), incl	0.006 (0.15)
Over 4 to 5 Inch (102 to 127mm), incl	0.008 (0.20)
Over 5 to 6 Inch (127 to 152mm), incl	0.009 (0.23)
Over 6 to 8 Inch (152 to 203mm), incl	0.010 (0.25)
Over 8 to 10 Inch (203 to 254mm), incl	0.013 (0.33)
Over 10 to 12 Inch (254 to 305mm), incl	0.015 (0.38)
Over 12 Inch (305 mm)	0.5 %

CU-NI 90-10 EEMUA 234 PIPE STRAIGHTNESS

EEMUA 234 UNS C7060X PIPE STANDARD COMPARISON CHART

	ASTM B466 C70600	MIL-T-16420K C70600	DIN 86019 CuNi10Fe1.6Mn 2.1972	BS 2871 CN 102	EEMUA 234 UNS 7060X	JIS H 3300 C7060
Ni%	9.0-11.0	9.0-11.0	9.0-11.0	10.0-11.0	10.0-11.0	9.0-11.0
Fe%	1.0-1.8	1.0-1.8	1.5-1.8	1.0-2.0	1.5-2.0	1.0-1.8
Mn%	Max.1.0	Max1.0	0.5-1.0	0.5-1.0	0.5-1.0	0.2-1.0
C%	Max.0.05	Max.0.05	Max.0.05	Max.0.05	Max.0.05
Pb%	Max.0.02	Max.0.02	Max.0.03	Max.0.01	Max.0.01	Max.0.05
S%	Max.0.02	Max.0.02	Max.0.015	Max.0.05	Max.0.02
P%	Max.0.02	Max.0.02	Max.0.02		Max.0.02
Zn%	Max.0.50	Max.0.05	Max.0.15		Max.0.20	Max.0.50
Zr%			Max.0.03
Others			Max.0.30	Max.0.30	Max.0.30
Cu%	Balance	Min.86.5	Balance	Balance	Balance	Cu+Ni +Fe+Mn Min.99.5

APPLICATION OF EEMUA 234 UNS 7060X PIPE

Shipbuilding
Desalinization
Heat Exchanger
Offshore
Power Generation
Condenser

TEMPERATURE AND WORKING PRESSURE OF COPPER NICKEL EEMUA 234 PIPE

16 bar/ 232 psi Eemua 234 UNS 7060x Pipe	20 bar/ 290 psi UNS 7060x Pipe
-29°C/-20°F up to +75°C/+167°F	-29°C/-20°F up to +38°C/+100°F

MMMMM CHEMICAL COMPOSITION

Grade	Pb	P	C (Max)	Mn	S	Fe	Zn	Ni	Cu
UNS 7060X Tubing	0.01	0.02	0.05	1.0	0.02	1.5-2.0	0.20	10.0-11.0	Balance

PHYSICAL STRENGTH OF EEMUA 234 UNS 7060X PIPE

Physical Properties	Imperial	Metric
Density	0.323 lb/in3	8.94 g/cm3

Trade Name	UNS	Copper Nickel Industry Specifications	Chemical Composition	Min.Tensile (KSI)	Min.Yield (KSI)	Elongation %
CuNi 90/10	UNS C70600 UNS C70620	ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543 ASTM B111, B122, B151, B171, B359, B395, B432, B466, B467, B543, B608 DIN 2.0872 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463	Cu 88.6 min Pb .05 max* Fe 1.8 max Zn 1 max* Ni 9-11 max Mn 1.0 max	38	15	30
CuNi 90/10	UNS C7060X	EEMUA 144 90/10, 145 90/10, 14 90/1	Cu rem. Pb .01 max Fe 1.5-2.0 Zn 0.2 max P 0.2 max S 0.2 max Ni 10-11 Mn 0.5-1.0	40	15	30
CuNi 70/30	UNS C71500 UNS C71520	ASME SB111, SB171, SB359, SB395, SB466, SB467, SB543 ASTM B111, B122, B151, B171, B359, B395, B432, B467, B543, B552, B608, F467, F468 DIN 2.0882 MIL C-15726, T-15005, T-16420, T-22214 SAE J461, J463	Cu rem (65.0 min) Pb .05 max* Fe 0.4-1.0 Zn 1 max* Ni 29-33 Mn 1 max	52	18	45
CuNi 70/30	UNS C71640	ASTM B111, B543, B552	Cu rem Pb .05 max* Fe 1.7-2.3 Zn 1 max* Ni 29-32 Mn 1.5-2.5	63	25	–

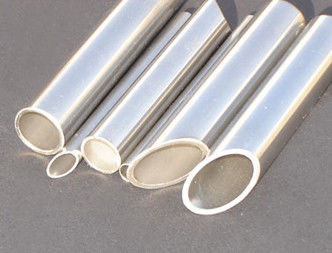

,, Eemua 234 UNS 7060x Seamless Straight Copper Nickel Tubing 0

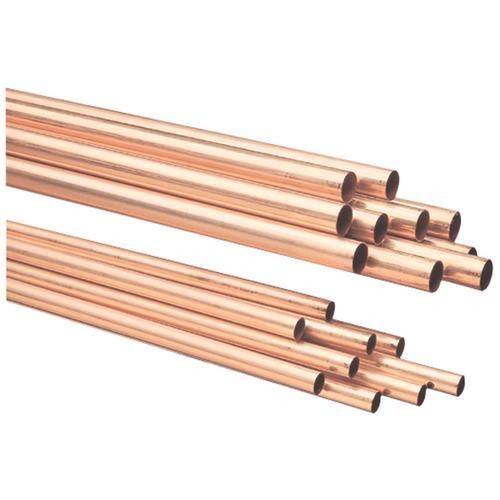

Eemua 234 UNS 7060x Seamless Straight Copper Nickel Tubing 1
