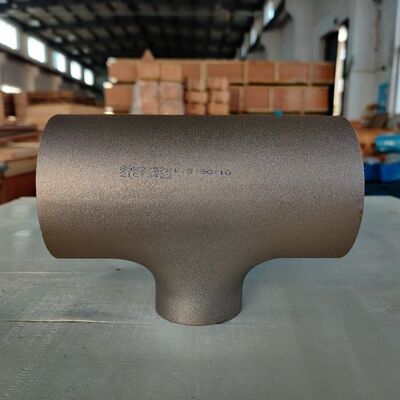

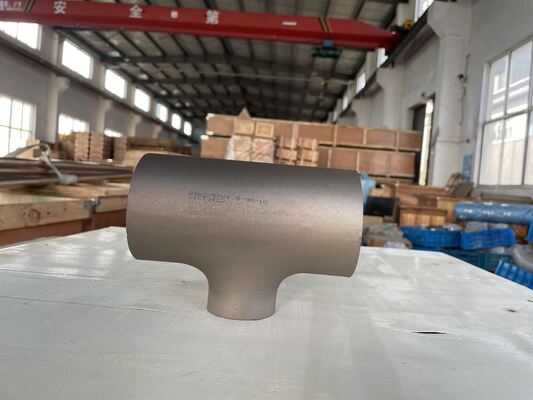

CuNi 70/30 Reducing Tee Socket Weld ASME B16.5 Class150 ASTM B466 UNS C71500 Forged Fitting

  • CuNi 70/30 Reducing Tee Socket Weld ASME B16.5 Class150 ASTM B466 UNS C71500 Forged Fitting
  • CuNi 70/30 Reducing Tee Socket Weld ASME B16.5 Class150 ASTM B466 UNS C71500 Forged Fitting
  • CuNi 70/30 Reducing Tee Socket Weld ASME B16.5 Class150 ASTM B466 UNS C71500 Forged Fitting
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Reducing Tee Fitting
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10Ton/Month
Product Details
Product Name Reducing Tee Fitting Manufacturingprocess Forged
Worksday 15-30days End Type Female NPT
Grade 70600 Pressure Rating 150 Psi
Weight 0.5 Kg Specification Customized
Temperaturerange -20°C To 400°C Connection Welding
Coating Brass Corrosionresistance High
Standard ASME B16.9 Material Stainless Steel
Surface Paint Spraying
Leave a Message
Product Description



CuNi 70/30 Copper Nickel Reducing Tee Forged Socket Weld Fitting ASME B16.5 Class150 EEMUA



1. Product Description

A copper nickel reducing tee is a T-shaped pipe fitting with equal main run ends and a smaller branch outlet. It is made of copper-nickel alloy and is mainly used for flow division, flow combination, and diameter transition in piping systems. Common grades are 90/10 CuNi and 70/30 CuNi. 90/10 CuNi is widely used in seawater piping systems. The product can be manufactured to ASME B16.9, DIN 86088, DIN 86089, EEMUA 146, ASTM B466, and other standards. It can be supplied in seamless or welded construction. End connections include butt weld, socket weld, threaded, and flanged types.

2. Product Applications

  1. Ship seawater cooling systems: for flow division and combination in seawater cooling lines.

  2. Offshore platform piping: for seawater and process piping connections on offshore facilities.

  3. Fire water systems: for connections between fire mains and branch pipes.

  4. Ballast water systems: for reducing and branch connections in ballast piping.

  5. Bilge water systems: for connections and transitions in bilge drainage lines.

  6. Desalination plants: for pipeline distribution and connections in desalination systems.

  7. Power plant condensers and heat exchangers: for seawater-side piping systems.

  8. Petrochemical systems: for piping with high corrosion resistance requirements.

  9. Shipbuilding and ship repair: for installation, modification, and maintenance of marine piping.

3. Product Advantages

  1. Excellent seawater corrosion resistance, especially in chloride-containing environments.

  2. Strong resistance to erosion-corrosion in flowing seawater, suitable for relatively high flow velocities.

  3. Good weldability, convenient for on-site installation and repair.

  4. High strength and toughness; iron and manganese help improve overall performance.

  5. 90/10 CuNi offers balanced cost-performance between corrosion resistance and cost.

  6. Long service life, reducing maintenance and replacement costs.

  7. Customizable sizes to meet different main run and branch outlet requirements.

  8. Reliable connection, good sealing performance, and stable dimensions.

4. Product Functions

  1. Flow division: distributes main line flow to branch pipes.

  2. Flow combination: merges branch line flow into the main pipe.

  3. Diameter transition: provides smooth connection between pipes of different diameters.

  4. Branch connection: provides a reliable T-shaped branch interface.

  5. Flow distribution: achieves reasonable flow distribution through different branch outlet sizes.

  6. System connection: used for installation, extension, and modification of piping systems.

5. Key Technical Parameters​



Parameter 90/10 CuNi 70/30 CuNi
Material Grade UNS C70600, CuNi10Fe1Mn, DIN 2.0872 UNS C71500, DIN 2.0882
Chemical Composition Ni 9.0–11.0%, Fe 1.0–1.8%, Mn 0.5–1.0%, Cu balance Ni 29.0–33.0%, Fe 0.4–1.0%, Mn ≤1.0%, Cu balance
Standards ASME B16.9, DIN 86088, DIN 86089, EEMUA 146, ASTM B466 ASME B16.9, DIN 86088, DIN 86089, EEMUA 146, ASTM B466
Nominal Size 1/2"–36" (DN15–DN900) 1/2"–36" (DN15–DN900)
Branch Size Smaller than main run Smaller than main run
Wall Thickness SCH10–SCH160, STD, XS, XXS SCH10–SCH160, STD, XS, XXS
Pressure Rating Butt weld: according to wall thickness/SCH; socket weld and threaded: 3000 lb, 6000 lb; flanged: Class 150–3000 Butt weld: according to wall thickness/SCH; socket weld and threaded: 3000 lb, 6000 lb; flanged: Class 150–3000
Temperature Range -20°C to 95°C continuous, peak 110°C -20°C to 95°C continuous, peak 110°C
End Connection Butt weld, socket weld, threaded, flanged Butt weld, socket weld, threaded, flanged
Surface Treatment Pickling, passivation, anti-tarnish protection Pickling, passivation, anti-tarnish protection
Inspection Spectroscopic analysis, dimensional inspection, NDT Spectroscopic analysis, dimensional inspection, NDT
Applicable Media Seawater, brine, fresh water, oil, gas Seawater, brine, fresh water, oil, gas





CuNi 70/30 Reducing Tee Socket Weld ASME B16.5 Class150 ASTM B466 UNS C71500 Forged Fitting





FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
