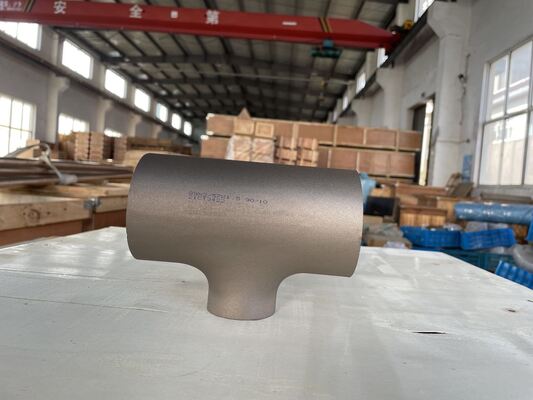

CuNi 70/30 Copper Nickel Reducing Tee Corrosion-Resistant Socket Weld Forged Fitting Offshore Class150

  • CuNi 70/30 Copper Nickel Reducing Tee Corrosion-Resistant Socket Weld Forged Fitting Offshore Class150
  • CuNi 70/30 Copper Nickel Reducing Tee Corrosion-Resistant Socket Weld Forged Fitting Offshore Class150
  • CuNi 70/30 Copper Nickel Reducing Tee Corrosion-Resistant Socket Weld Forged Fitting Offshore Class150
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Reducing Tee Fitting
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10Ton/Month
Product Details
Product Name Reducing Tee Fitting End Type Equal
Alloy Or Not Is Alloy Surfacefinish Polished / Matte
Package Quantity Depends Shape T-shaped
Wall Thickness Customized Standard Of Execution HG/T20592-2009
Surfacetreatment Polished Or Pickled Pressurerating Class 150 To Class 3000
Style Reducing/Equal Coating Brass
Delivery According To Quantity Size Various (e.g., 2
Corrosionresistance High Surface Smooth
Leave a Message
Product Description



CuNi 70/30 Copper Nickel Reducing Tee Corrosion-Resistant Socket Weld Forged Fitting Offshore Class150



1. Product Description

A copper nickel reducing tee is a T-shaped pipe fitting made of copper-nickel alloy. The branch outlet is smaller than the main run. It is mainly used for flow division, flow combination, and diameter transition in piping systems. Common grades are 90/10 CuNi and 70/30 CuNi. 90/10 CuNi is widely used in seawater piping systems. The product can be manufactured to ASME B16.9, DIN 86088, DIN 86089, EEMUA 146, and other standards. End connections include butt weld, socket weld, threaded, and flanged types.

2. Applications

  1. Ship seawater cooling systems: for flow division and combination in seawater cooling lines.

  2. Offshore platform piping systems: for seawater and process piping connections.

  3. Fire water systems: for fire main and branch pipe connections on ships and offshore facilities.

  4. Ballast water systems: for branch and reducing connections in ballast piping.

  5. Bilge water systems: for connections and transitions in bilge drainage lines.

  6. Desalination plants: for pipeline distribution in seawater desalination systems.

  7. Power plant condensers and heat exchangers: for seawater piping in condensers and heat exchangers.

  8. Petrochemical systems: for corrosion-resistant chemical piping.

  9. Shipbuilding and ship repair: for installation and maintenance of marine piping systems.

3. Advantages

  1. Excellent seawater corrosion resistance, especially in chloride environments.

  2. Strong resistance to erosion-corrosion in flowing seawater, suitable for relatively high flow velocities.

  3. Good weldability, convenient for on-site installation and repair.

  4. High strength and toughness; iron and manganese help improve overall performance.

  5. Balanced cost-performance; 90/10 CuNi offers a good balance between corrosion resistance and cost.

  6. Long service life, reducing maintenance and replacement costs.

  7. Customizable sizes to meet different main pipe and branch pipe requirements.

  8. Stable dimensions, reliable connection, and good sealing performance.

4. Functions

  1. Flow division: distributes main line flow to branch pipes.

  2. Flow combination: merges branch line flow into the main pipe.

  3. Diameter transition: provides smooth connection between pipes of different diameters.

  4. Branch connection: provides a reliable T-shaped branch interface.

  5. Flow distribution: achieves reasonable flow distribution through different branch outlet sizes.

  6. System connection: used for installation, extension, and modification of piping systems.

5. Key Technical Parameters​



Parameter 90/10 CuNi 70/30 CuNi
Material Grade UNS C70600, CuNi10Fe1Mn, DIN 2.0872 UNS C71500, DIN 2.0882
Chemical Composition Ni 9.0–11.0%, Fe 1.0–1.8%, Mn 0.5–1.0%, Cu balance Ni 29.0–33.0%, Fe 0.4–1.0%, Mn ≤1.0%, Cu balance
Standards ASME B16.9, DIN 86088, EEMUA 146, ASTM B466 ASME B16.9, DIN 86088, EEMUA 146, ASTM B466
Nominal Size 1/2"–36" (DN15–DN900) 1/2"–36" (DN15–DN900)
Branch Size Smaller than main pipe Smaller than main pipe
Wall Thickness SCH10–SCH160, STD, XS, XXS SCH10–SCH160, STD, XS, XXS
Pressure Rating Class 150–Class 3000, including 200 lb, 400 lb Class 150–Class 3000
Temperature Range -20°C to 95°C continuous, peak 110°C -20°C to 95°C continuous, peak 110°C
End Connection Butt weld, socket weld, threaded, flanged Butt weld, socket weld, threaded, flanged
Surface Treatment Pickling, passivation, anti-tarnish protection Pickling, passivation, anti-tarnish protection
Testing Spectroscopic analysis, dimensional inspection, NDT Spectroscopic analysis, dimensional inspection, NDT
Applicable Media Seawater, brine, fresh water, oil Seawater, brine, fresh water, oil

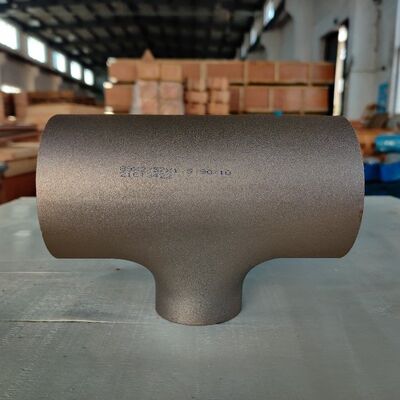

CuNi 70/30 Copper Nickel Reducing Tee Corrosion-Resistant Socket Weld Forged Fitting Offshore Class150





FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
