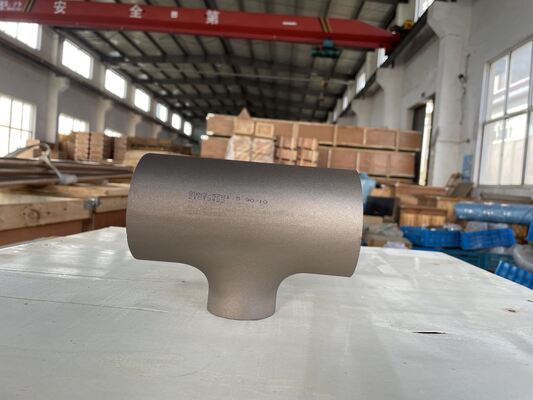

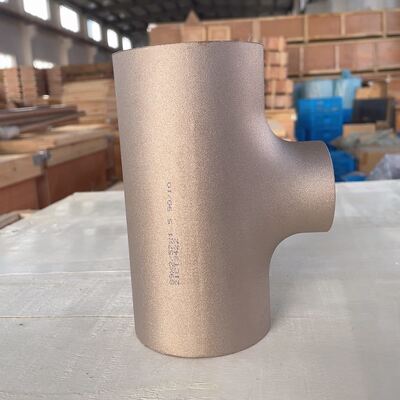

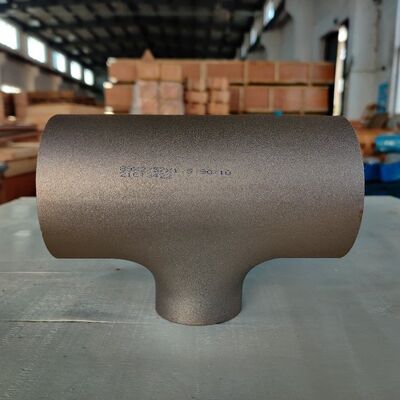

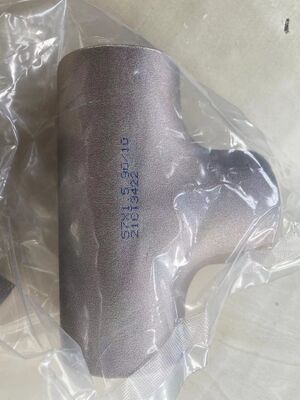

Copper Nickel 70/30 Reducing Tee BW Fitting ASME B16.5 Cl150 Shipbuilding Anti-Corrosion
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Pipe |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | Copper Nickel 70/30 Reducing Tee BW Fitting ASME B16.5 Cl150 Shipbuilding Anti-Corrosion | Delivery | According To Quantity |
|---|---|---|---|
| Shape | T-shaped | Endtype | Butt Weld Ends |
| End Type | Equal | Productname | Reducing Tee Fitting |
| Worksday | 15-30days | Temperature Rating | 400°F |
| Specification | Customized | Countryoforigin | China |
| Corrosionresistance | High | Connection Type | Threaded/Socket |
| Length | Required | Connection | Welding |
| Wallthickness | Schedule 40 | Surface | Smooth |
Product Description
Copper Nickel 70/30 Reducing Tee BW Fitting ASME B16.5 Cl150 Shipbuilding Anti-Corrosion
1. Product Description
The Copper Nickel Reducing Tee is a precision-engineered pipe fitting manufactured from CuNi alloy, available in 90/10 (UNS C70600) and 70/30 (UNS C71500) material grades. This three-way fitting features a main run connection at full nominal diameter and two branch outlets of smaller dimensions, providing both flow diversion and diameter transition in a single component without the need for additional reducing adapters.
Manufactured through hot forging or seamless extrusion processes, the fitting offers a homogeneous grain structure and complete freedom from body welds. End finishes include butt weld ends with standard bevel preparation, socket weld ends with square-cut chamfered terminations, and threaded ends with precision-formed NPT or BSP threads. A post-manufacturing pickling and passivation cycle ensures a metallurgically clean surface, free from scale and surface impurities.
2.Product Applications
-
Shipping industry – cargo vessels, tankers, bulk carriers, and passenger ships for engine seawater cooling, deck fire protection, ballast water handling, and accommodation service lines.
-
Offshore infrastructure – fixed and floating production platforms for seawater lift, heat exchange cooling circuits, and platform firewater distribution rings.
-
Media compatibility: Natural seawater, brackish water, fresh potable water, industrial cooling water, low-pressure steam, plant air, and hydrocarbon fluids.
-
Water desalination – both thermal (MSF/MED) and membrane (RO) desalination plants for feed intake, brine concentration discharge, and permeate collection pipework.
-
Power plants – conventional thermal, gas turbine combined-cycle, and nuclear facilities for main condenser cooling and station auxiliary water services.
-
Process industries – chemical manufacturing, petroleum refining, food processing, and pharmaceutical plants for cooling water, process fluid, and utility distribution piping.
3. Product advantages:
Unmatched corrosion durability – CuNi alloys demonstrate a seawater corrosion rate below 0.025mm per year, substantially outperforming carbon steel, galvanized steel, and standard 300-series stainless steels. The alloy's passive film is self-healing, maintaining protection even after mechanical damage.
Natural bio-resistance – the controlled release of copper ions creates a micro-environment that deters attachment and growth of barnacles, mussels, and algal species. This property significantly reduces flow efficiency losses caused by biofouling accumulation.
Superior erosion resistance – the alloy withstands continuous seawater flow velocities up to 5 m/s without erosion or cavitation damage, making it particularly suited to high-flow pump discharge and circulation system applications.
Field-proven welding – CuNi alloys are readily welded using TIG and MIG processes. The material exhibits excellent resistance to hot cracking, and the required preheat is minimal (100–150°C only for sections exceeding 20mm thickness), facilitating efficient field installation.
Product traceability – each fitting is marked with heat number and supplied with a complete mill test certificate. Independent third-party inspection services are available to meet specific project specifications.
Sustainable material choice – the alloy is fully recyclable and contains no lead, cadmium, or other restricted substances, supporting environmental compliance and green building certifications.
4.Product Specifications
| Parameter | Value |
| Material Grades | UNS C70600 (90/10 CuNi) / UNS C71500 (70/30 CuNi) |
| Fitting Type | Reducing Tee (Run × Branch1 × Branch2) |
| Size Range (DN) | DN15 – DN600 (½″ – 24″) |
| Reduction Ratio | Customizable (typical: 2:1, 3:2, 4:3) |
| End Connections | Butt Weld (BW), Socket Weld (SW), Threaded (NPT/BSP) |
| Pressure Classes | Class 150, 300, 600, 900, 1500, 2500, 3000 lb |
| Wall Thickness Schedules | SCH10, SCH20, SCH40, SCH80, SCH160, STD, XS, XXS |
| Design Standards | ASME B16.9, ASME B16.11, MSS SP-79, DIN 86088, EN 1254-4, EEMUA 146 |
| Operating Temperature | –50°C to +300°C (derate above 260°C) |
| Max Recommended Velocity | Seawater ≤5 m/s; Fresh water/air ≤15 m/s |
| Tensile Strength (70/30) | ≥380 MPa |
| Yield Strength (70/30) | ≥140 MPa |
| Elongation after Fracture | ≥30% (both grades) |
| Hardness | ≤80 HRB |
| Seawater Corrosion Rate | <0.025 mm/year (typical) |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
