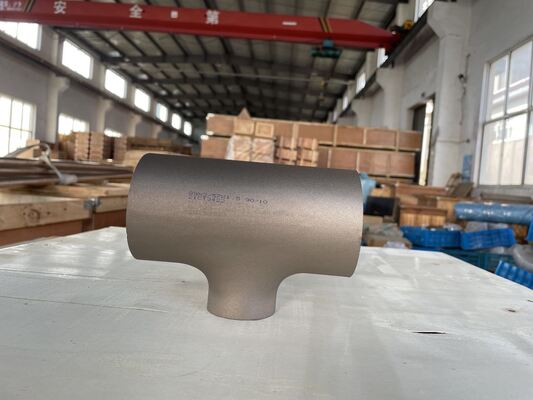

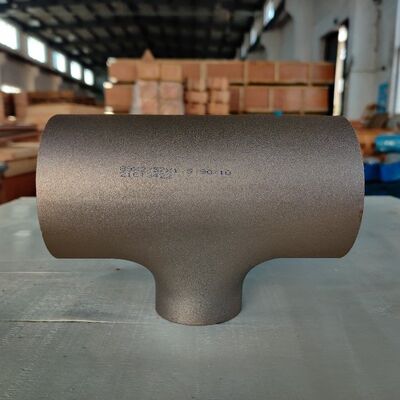

CuNi 70/30 Copper Nickel Reducing Tee Butt Weld Fitting ASME B16.5 Class150 Marine Grade
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Pipe |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | CuNi 70/30 Copper Nickel Reducing Tee Butt Weld Fitting ASME B16.5 Class150 Marine Grade | Weight | Varies By Size |
|---|---|---|---|
| Productname | Reducing Tee Fitting | Usage | Industrial Piping Systems, Plumbing |
| Surfacefinish | Polished / Matte | End Type | Reducing |
| Color | Metallic Silver | Surface | Paint Spraying |
| Origin | Shanghai | Size Range | 3 |
| Alloy Or Not | Is Alloy | Head Code | Round |
| Grade | 70600 | Place | China |
| Package Quantity | Depends | Process | Precision Casting / Fabricated |
Product Description
CuNi 70/30 Copper Nickel Reducing Tee Butt Weld Fitting ASME B16.5 Class150 Marine Grade
1. Product Description

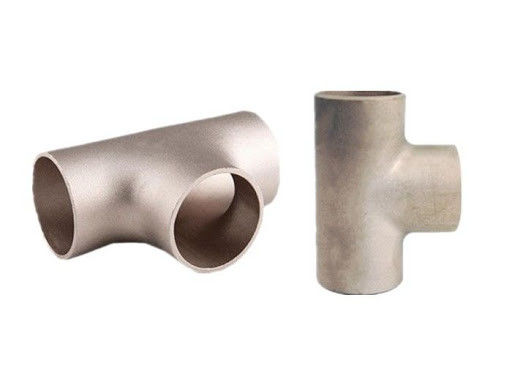

The Copper Nickel Reducing Tee is a seamless T-shaped fitting manufactured from high-grade CuNi alloys – 90/10 (UNS C70600) or 70/30 (UNS C71500). It features one main run inlet and two branch outlets of smaller diameters, enabling flow splitting and size reduction in a single component without additional reducers.
The fitting is produced by hot forging or extrusion, ensuring a weld-free body with superior structural integrity. End connections are available in three types: butt weld (BW) with beveled ends per ASME B16.25, socket weld (SW) with square-cut chamfered ends, and threaded (NPT or BSP) for screw-on installation. All surfaces are pickled and passivated to remove oxides and improve corrosion resistance in aggressive media.
2.Product Applications
-
Commercial vessels – seawater cooling, fire main systems, ballast water lines, and sanitary piping on cargo ships, tankers, and passenger vessels.
-
Offshore oil & gas platforms – seawater lift pumps, process cooling loops, and firewater ring mains.
-
Suitable media: Seawater, brackish water, fresh water, demineralized water, steam (low pressure), compressed air, and light hydrocarbon oils.
-
Desalination plants – intake pipelines, brine discharge headers, and product water transfer systems.
-
Power stations – circulating water systems (CWS) and auxiliary cooling circuits in thermal and nuclear plants.
-
Industrial facilities – heat exchangers, HVAC systems, chemical processing, and compressor interconnecting piping.
3. Product advantages:
-
Extended service life – proven 30+ years in seawater with minimal corrosion, dramatically reducing replacement frequency and maintenance costs.
-
Natural anti-biofouling – copper ion release prevents barnacle, mussel, and algae attachment, eliminating expensive chemical dosing and manual scraping.
-
Excellent erosion resistance – withstands high-velocity flow up to 5 m/s without surface damage, ideal for pump discharge and high-flow lines.
-
Good weldability – compatible with standard TIG/MIG welding using ERCuNi filler metal; thick-wall sections require only simple preheat (100–150°C above 20mm).
-
Full material traceability – each fitting supplied with mill test reports (MTR); optional third-party inspection available (DNV, ABS, Lloyd's).
-
100% recyclable – environmentally sustainable material, meeting green procurement and corporate ESG requirements.
-
Low magnetic permeability – suitable for applications where non-magnetic materials are preferred.
4.Product Specifications
| Parameter | Value |
| Material Grades | UNS C70600 (90/10 CuNi) / UNS C71500 (70/30 CuNi) |
| Fitting Type | Reducing Tee (Run × Branch1 × Branch2) |
| Size Range (DN) | DN15 – DN600 (½″ – 24″) |
| Reduction Ratio | Customizable (typical: 2:1, 3:2, 4:3) |
| End Connections | Butt Weld (BW), Socket Weld (SW), Threaded (NPT/BSP) |
| Pressure Classes | Class 150, 300, 600, 900, 1500, 2500, 3000 lb |
| Wall Thickness Schedules | SCH10, SCH20, SCH40, SCH80, SCH160, STD, XS, XXS |
| Design Standards | ASME B16.9, ASME B16.11, MSS SP-79, DIN 86088, EN 1254-4, EEMUA 146 |
| Operating Temperature | –50°C to +300°C (derate above 260°C) |
| Max Recommended Velocity | Seawater ≤5 m/s; Fresh water/air ≤15 m/s |
| Tensile Strength (70/30) | ≥380 MPa |
| Yield Strength (70/30) | ≥140 MPa |
| Elongation after Fracture | ≥30% (both grades) |
| Hardness | ≤80 HRB |
| Seawater Corrosion Rate | <0.025 mm/year (typical) |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
