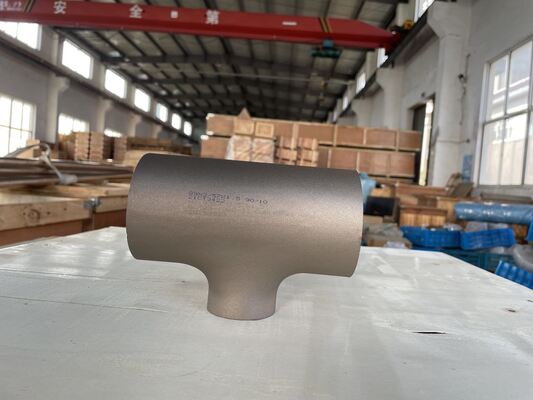

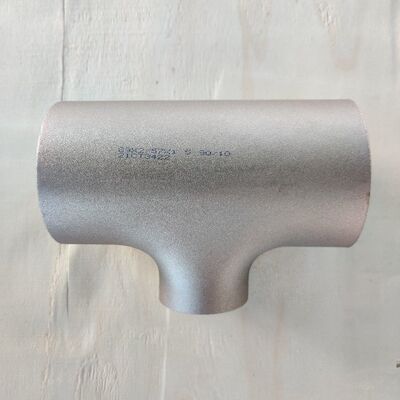

CuNi 70/30 Reducing Tee Socket Weld Pipe Fittings Marine Seawater System ASME B16.5 Class150 Custom Size
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Pipe |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | CuNi 70/30 Reducing Tee Socket Weld Pipe Fittings Marine Seawater System ASME B16.5 Class150 Custom Size | Standards | ASME B16.11, ASTM A182 |
|---|---|---|---|
| Connection Type | Threaded/Socket | Length | Required |
| Mode Of Connection | Welding | Price Term | CIF CFR FOB Ex-Work |
| Compatibility | Compatible With Other Threaded Fittings | Place | China |
| Color | Metallic / Black / Customized | Surface | Paint Spraying |
| Surfacefinish | Polished / Painted / Galvanized | Size Range | 3 |
| Face Type | Reducing Tee/equal | Package Quantity | Depends |
| Head Code | Round | Grade | 70600 |
Product Description
CuNi 70/30 Reducing Tee Socket Weld Pipe Fittings Marine Seawater System ASME B16.5 Class150 Custom Size
1. Product Description
The Copper Nickel Reducing Tee is a seamless, T‑shaped fitting manufactured from high‑grade CuNi alloys – 90/10 (UNS C70600) or 70/30 (UNS C71500). It features one main run inlet and two branch outlets of smaller diameters, enabling flow splitting and size reduction in a single component without additional reducers.
The fitting is produced by hot forging or extrusion, ensuring a weld‑free body with superior structural integrity. End connections are available in three types: butt weld (BW) with beveled ends per ASME B16.25, socket weld (SW) with square‑cut chamfered ends, and threaded (NPT or BSP) for screw‑on installation. All surfaces are pickled and passivated to remove oxides and improve corrosion resistance in aggressive media.
2.Product Applications
-
Commercial vessels and tankers – seawater cooling, fire main systems, ballast water lines, and sanitary piping.
-
Offshore oil & gas platforms – seawater lift pumps, process cooling loops, and firewater ring mains.
-
Coastal desalination plants – intake lines, brine discharge headers, and product water transfer.
-
Power stations (thermal & nuclear) – circulating water systems and auxiliary cooling circuits.
-
General industrial plants – heat exchangers, HVAC, chemical processing, and compressor piping.
3. Product advantages:
-
Long service life – proven 30+ years in seawater with minimal corrosion, significantly reducing replacement and maintenance costs.
-
Natural anti‑biofouling – copper ion release prevents barnacle, mussel, and algae attachment, eliminating chemical dosing and manual scraping.
-
Erosion resistance – withstands high‑velocity flow up to 5 m/s without surface damage, ideal for pump discharge lines.
-
Good weldability – compatible with standard TIG/MIG welding using ERCuNi filler, with simple preheat requirements for thicker walls.
-
Full traceability – each fitting comes with mill test reports, and optional third‑party inspection (e.g., DNV, ABS, Lloyd's) is available.
-
100% recyclable – environmentally sustainable, meeting green procurement standards.
4.Product Specifications
| Parameter | Value |
| Material Grades | UNS C70600 (90/10 CuNi) / UNS C71500 (70/30 CuNi) |
| Fitting Type | Reducing Tee (Run × Branch1 × Branch2) |
| Size Range (DN) | DN15 – DN600 (½″ – 24″) |
| Reduction Ratio | Customizable (typical: 2:1, 3:2, 4:3) |
| End Connections | Butt Weld (BW), Socket Weld (SW), Threaded (NPT/BSP) |
| Pressure Classes | Class 150, 300, 600, 900, 1500, 2500, 3000 lb |
| Wall Thickness Schedules | SCH10, SCH20, SCH40, SCH80, SCH160, STD, XS, XXS |
| Design Standards | ASME B16.9, ASME B16.11, MSS SP-79, DIN 86088, EN 1254-4, EEMUA 146 |
| Operating Temperature | –50°C to +300°C (derate above 260°C) |
| Max Recommended Velocity | Seawater ≤5 m/s; Fresh water/air ≤15 m/s |
| Tensile Strength (70/30) | ≥380 MPa |
| Yield Strength (70/30) | ≥140 MPa |
| Elongation after Fracture | ≥30% (both grades) |
| Hardness | ≤80 HRB |
| Seawater Corrosion Rate | <0.025 mm/year (typical) |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
