UNS C71500 CuNi 70/30 Reducing Tee Socket Weld Fitting ASME B16.5 Class 150 Forged Pipe Fittings
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Pipe |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | UNS C71500 CuNi 70/30 Reducing Tee Socket Weld Fitting ASME B16.5 Class 150 Forged Pipe Fittings | Shape | Tee |
|---|---|---|---|
| Standard | ASME B16.9 / ASTM A234 | Delivery | According To Quantity |
| Material | Stainless Steel | Connectiontype | Butt Weld / Threaded / Socket Weld |
| Corrosionresistance | High Corrosion Resistance | Technics | Casting |
| Pressurerating | Class 150 / 300 / 600 / 900 / 1500 | Worksday | 15-30days |
| Package Quantity | Depends | Temperature Rating | Up To 200 Degrees Fahrenheit |
| Temperaturerange | -20°C To 400°C | Type | Steel Pipe |
| Origin | Shanghai | End Type | Reducing |
Product Description
UNS C71500 CuNi 70/30 Reducing Tee Socket Weld Fitting ASME B16.5 Class 150 Forged Pipe Fittings
1. Product Description

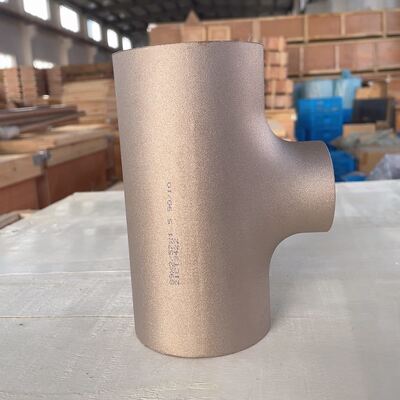

The Copper Nickel Reducing Tee is a high‑performance T‑shaped fitting manufactured from CuNi alloys (90/10 or 70/30). It features one main run outlet and two branch outlets with different diameters, enabling efficient flow distribution and diameter reduction in a single component. As a reducing tee, it smoothly transitions flow from a larger main pipe to smaller branch pipes, minimizing turbulence and pressure drop.
Key functional capabilities:
-
Splits flow from the main line into two branches of smaller size, or combines two branch flows into a larger main line.
-
Provides a permanent three‑way junction with leak‑tight performance.
-
Suitable for high‑velocity and high‑pressure seawater systems, as well as for chemical, oil & gas, and desalination services.
2.Product Applications
These fittings are indispensable in environments requiring high resistance to seawater corrosion and biofouling:
-
Marine & Offshore – seawater cooling, firefighting systems, ballast water, bilge, and sanitary piping.
-
Desalination – intake lines, brine discharge, and product water transfer.
-
Power Generation – condenser cooling water and auxiliary seawater circuits.
-
Oil & Gas – platform topside piping, subsea equipment, and refinery process lines.
-
Industrial & Chemical – heat exchangers, HVAC, and chemical processing plants.
-
Other – aquaculture, shipbuilding, and coastal infrastructure.
3. Product Advantages
-
Exceptional durability – proven service life of over 30 years in seawater with minimal maintenance.
-
Superior anti‑corrosion & anti‑fouling – naturally resistant to marine growth, reducing the need for chemical cleaning.
-
High strength at high velocity – withstands seawater flow up to 5 m/s without erosion damage.
-
Reduced pressure losses – the reducing geometry optimizes flow, lowering turbulence and energy consumption.
-
Versatile joining options – compatible with welding, socket, press, and threaded systems, facilitating installation in new or retrofit projects.
-
100% recyclable – environmentally friendly material with full recyclability.
4.Product Specifications
| Parameter | Specification |
| Material | 90/10 CuNi (UNS C70600 / B10) or 70/30 CuNi (UNS C71500 / B30) |
| Type | Reducing Tee (Run × Branch) |
| Size Range | DN20 – DN500 (3/4″ – 20″) |
| Connection Types | Butt Weld (BW), Socket Weld (SW), Press, Threaded |
| Pressure Ratings | Class 150, 200, 300, 600, 700, 900, 3000 lb |
| Wall Thickness | SCH40, SCH80, STD, XS |
| Design Standards | ASME B16.9, ASME B16.11, DIN 86088, EEMUA 146, MIL-F-24202 |
| Temperature Range | –50°C to +260°C |
| Tensile Strength | ≥380 MPa (for 70/30) |
| Yield Strength | ≥140 MPa (for 70/30) |
| Elongation | ≥30% |
| Hardness | ≤80 HRB |
| Corrosion Rate | <0.025 mm/year in natural seawater |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
