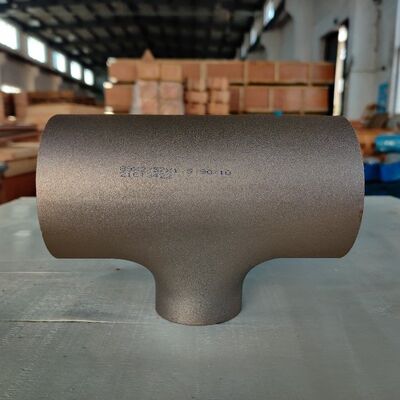

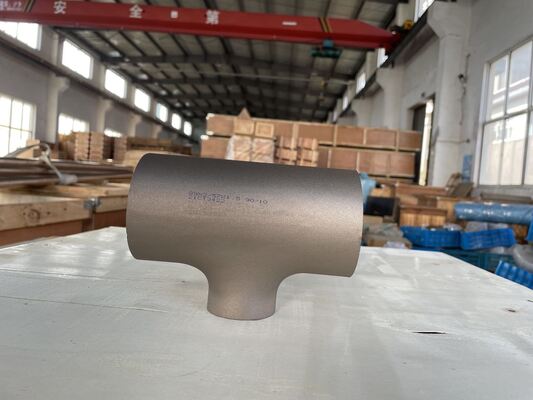

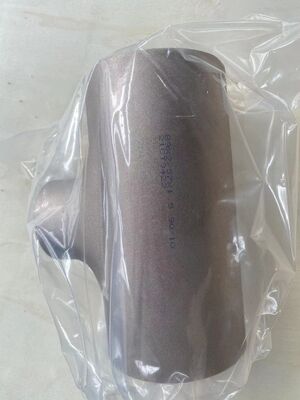

CuNi 70/30 Copper Nickel Reducing Tee Socket Weld Fitting ASME B16.5 Class 150 Marine Grade Pipe Fittings
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Pipe |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | CuNi 70/30 Copper Nickel Reducing Tee Socket Weld Fitting ASME B16.5 Class 150 Marine Grade Pipe Fittings | Compatibility | Compatible With Other Threaded Fittings |
|---|---|---|---|
| Connection Type | Threaded/Socket | Corrosionresistance | High Corrosion Resistance |
| Standards | ASME B16.9, ASTM A234 | Finish | Polished |
| Pressure Rating | 150 Psi | Certifications | ASME B16.11, ASTM A182 |
| Temperature Rating | Up To 200 Degrees Fahrenheit | Style | Reducing/Equal |
| Face Type | Reducing Tee/equal | Wall Thickness | Customized |
| Material | Stainless Steel | Delivery | According To Quantity |
| Endtype | Butt Weld / Threaded / Socket Weld |
Product Description
CuNi 70/30 Copper Nickel Reducing Tee Socket Weld Fitting ASME B16.5 Class 150 Marine Grade Pipe Fittings
1. Product Description
A Copper Nickel Reducing Tee is a T-shaped pipe fitting manufactured from copper-nickel (CuNi) alloy, featuring three openings with different diameters. The fitting consists of a main opening called the "run" and two side openings called "branches". As a reducing tee, the branch outlet has a smaller diameter than the run pipe, allowing for flow transition between different pipe sizes.
Common material grades include 90/10 Copper Nickel (UNS C70600, also known as B10 or CuNi90/10) and 70/30 Copper Nickel (UNS C71500, also known as B30 or CuNi70/30). The fitting is available in various connection types including butt weld (BW), socket weld (SW), and threaded connections.
2.Product Applications
Copper Nickel Reducing Tees are widely used in the following applications:
-
Marine and Shipbuilding: Seawater cooling systems, fire main piping, ballast water systems, bilge systems, main seawater lines
-
Offshore Platforms: Seawater cooling, firefighting water lines, process water piping
-
Desalination Plants: Intake and outfall systems, high-pressure brine lines, product water distribution
-
Industrial Applications: Chemical processing, power plants, HVAC systems, oil and gas
-
Other Fields: Petrochemical, pharmaceutical, aerospace, aquaculture, metallurgy
The fitting is suitable for conveying seawater, fresh water, air, steam, oil, and other media.
3. Product Advantages
Material Advantages:
-
Superior Corrosion Resistance: Exceptional resistance to seawater corrosion, with a corrosion rate of <0.025 mm/year in seawater. Excellent resistance to biofouling and marine growth
-
Long Service Life: 30+ years in seawater service with minimal maintenance requirements
-
Outstanding Mechanical Properties: High strength, good ductility, and excellent erosion-corrosion resistance
-
Erosion Resistance: Withstands high-velocity seawater up to 5 m/s
-
Environmental Benefits: Natural biofouling resistance reduces chemical usage; 100% recyclable
Design Advantages:
-
Smooth Flow Transition: Reducing design allows for smooth flow transition between different pipe diameters, reducing pressure loss
-
Reduced Turbulence: Optimized flow characteristics with low turbulence at branch connections
-
Multiple Connection Options: Available in butt weld, socket weld, and threaded connections to suit different installation requirements
4.Product Specifications
| Parameter | Specification |
| Material | 90/10 Copper Nickel (UNS C70600 / B10 / CuNi90-10) or 70/30 Copper Nickel (UNS C71500 / B30 / CuNi70-30) |
| Type | Reducing Tee (Reducing ) |
| Size Range | DN20 – DN500 (3/4" – 20") |
| Connection Types | Butt Weld (BW), Socket Weld (SW), Press Connection, Threaded |
| Pressure Ratings | Class 150, Class 200, Class 300, Class 600, Class 700, Class 900, 3000 lb |
| Wall Thickness | SCH40, SCH80, STD, XS |
| Standards | ASME B16.9, ASME B16.11, ANSI B1611, DIN 86088, EEMUA 146, MIL-F-24202 |
| Temperature Range | -50°C to 260°C |
| Tensile Strength | ≥380 MPa (70/30 CuNi) |
| Yield Strength | ≥140 MPa (70/30 CuNi) |
| Elongation | ≥30% |
| Hardness | ≤80 HRB |
| Parameter | Specification |
| Material | 90/10 Copper Nickel (UNS C70600 / B10 / CuNi90-10) or 70/30 Copper Nickel (UNS C71500 / B30 / CuNi70-30) |
| Type | Reducing Tee (Reducing ) |
| Size Range | DN20 – DN500 (3/4" – 20") |
| Connection Types | Butt Weld (BW), Socket Weld (SW), Press Connection, Threaded |
| Pressure Ratings | Class 150, Class 200, Class 300, Class 600, Class 700, Class 900, 3000 lb |
| Wall Thickness | SCH40, SCH80, STD, XS |
| Standards | ASME B16.9, ASME B16.11, ANSI B1611, DIN 86088, EEMUA 146, MIL-F-24202 |
| Temperature Range | -50°C to 260°C |
| Tensile Strength | ≥380 MPa (70/30 CuNi) |
| Yield Strength | ≥140 MPa (70/30 CuNi) |
| Elongation | ≥30% |
| Hardness | ≤80 HRB |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
