CuNi 70/30 Copper Nickel Equal Tee C71500 Weldable Seawater Corrosion Resistant Marine Fitting

  • CuNi 70/30 Copper Nickel Equal Tee C71500 Weldable Seawater Corrosion Resistant Marine Fitting
  • CuNi 70/30 Copper Nickel Equal Tee C71500 Weldable Seawater Corrosion Resistant Marine Fitting
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Copper Nickel Equal Tee
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10Ton/Month
Product Details
Product Name Copper Nickel Equal Tee Weight Varies Depending On Size And Thickness
Process Seamless / Welded / Fabricated Pressurerating Class 150 To Class 600
Sizerange 1/2 Inch To 48 Inches Manufacturingprocess Seamless Or Welded
Face Type Beveled End / Plain End Temperature Rating -20 To 400°F
Connection Butt Weld Durability High
Corrosionresistance High Resistance To Seawater Corrosion Material Copper Nickel Alloy
Head Round Packing Wooden Case Or As Customer's Request
Temperature Range -20°C To 150°C Product Type Reducing Tee
Leave a Message
Product Description

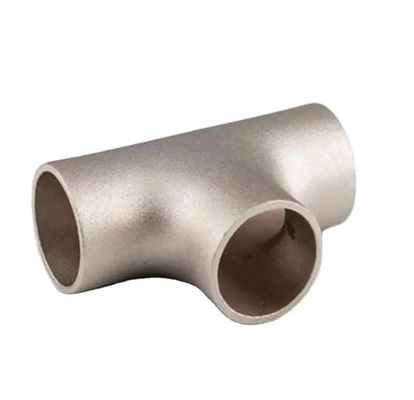

CuNi 70/30 Copper Nickel Equal Tee C71500 Weldable Seawater Corrosion Resistant Marine Fitting



1. Product Description

The Copper Nickel Equal Tee is a T-shaped pipe fitting with three ports of identical nominal bore, where the branch diameter is the same as the run diameter. It is commonly made from Copper Nickel 90/10 and Copper Nickel 70/30, with equivalent grades including UNS C70600, UNS C71500, CuNi10Fe1Mn, and DIN 2.0872. The manufacturing process usually includes seamless hot-pushing, die forging, or extrusion, followed by solution annealing, pickling, and passivation. End connections can be butt weld, socket weld, or threaded. The product can be manufactured according to ASTM B466, ASME SB466, ASME B16.9, EEMUA 146, EEMUA 234, DIN 86088, or customer drawings. It is mainly used for branch connections in seawater, chloride-containing, and corrosive piping systems.

2. Product Applications

  1. Shipbuilding: Seawater cooling systems, ballast water systems, fire mains, bilge systems, deck drainage systems, and seawater desalination piping.

  2. Offshore Engineering: Seawater lift systems, cooling water distribution systems, and firewater ring mains on offshore platforms, FPSOs, and offshore wind platforms.

  3. Desalination: Feed headers, brine recirculation lines, and product water branch pipes in MSF, MED, and RO systems.

  4. Power Industry: Essential service water systems in nuclear plants, circulating cooling water systems in thermal plants, and auxiliary cooling systems in hydro plants.

  5. Petrochemical Industry: Chloride-containing piping, brine lines, cooling water bypass lines, and heat exchanger connections.

  6. Port and Municipal Engineering: Coastal water supply networks, port firewater systems, aquarium circulating water systems, and cooling water piping for seaside facilities.

3. Product Advantages

  1. Seawater Corrosion Resistance: Low corrosion rate in flowing seawater and chloride media, with good resistance to pitting, crevice corrosion, and stress corrosion.

  2. Biofouling Resistance: Naturally released copper ions help inhibit barnacles, shellfish, and algae, reducing cleaning and maintenance frequency.

  3. Good Weldability: Suitable for butt welding, socket welding, and threaded connection, making field installation convenient and welding quality stable.

  4. Wide Temperature Adaptability: Good toughness at low temperatures and stable strength at elevated temperatures, suitable for a wide temperature range.

  5. Erosion-Corrosion Resistance: Long service life in seawater systems with relatively high flow velocity.

  6. Good Economy: Lower life-cycle cost than titanium and some high-alloy stainless steels in seawater service.

  7. Long Service Life: Suitable for long-term marine service with low maintenance cost.

  8. High Standardization: Dimensions and performance comply with international standards, facilitating design selection, installation, and later maintenance.

4. Product Functions

  1. Equal-Diameter Flow Division: Divides main pipeline flow into two equal-diameter branch lines.

  2. Equal-Diameter Flow Combination: Combines two equal-diameter flow streams into one main pipeline.

  3. Right-Angle Branching: Provides a 90-degree perpendicular branch connection with three identical internal diameters.

  4. Piping Connection: Used as a branch node in piping networks for pipeline extension and direction change.

  5. Flow Transition: Smooth internal surface reduces turbulence and local vortices, ensuring smooth fluid passage.

  6. Standardized Connection: Facilitates standardized piping design, installation, and later maintenance.



5. Key Technical Parameters​


Item Parameter
Product Name Copper Nickel Equal Tee
Common Material Copper Nickel 90/10, Copper Nickel 70/30
Equivalent Grades UNS C70600, UNS C71500, CuNi10Fe1Mn, DIN 2.0872
Nominal Size DN15–DN900, 1/2"–36", customizable
Branch Size Same as main pipe
Wall Thickness SCH5S, SCH10S, SCH40S, SCH80S, SCH160, XS, XXS
End Connection Butt Weld, Socket Weld, Threaded
Pressure Rating Butt weld determined by wall thickness and pipe class; socket weld and threaded available in 3000 lb, 6000 lb
Temperature Range -50°C to +300°C
Tensile Strength C70600 typically ≥275 MPa; C71500 typically ≥345 MPa
Yield Strength C70600 typically ≥105 MPa
Elongation ≥30%
Density Approx. 8.94 g/cm³
Standards ASTM B466, ASME SB466, ASME B16.9, EEMUA 146, EEMUA 234, DIN 86088
Manufacturing Process Seamless hot-pushing, die forging, extrusion, solution annealing, pickling and passivation
Surface Treatment Pickled and passivated, natural finish, or as per customer requirements
Testing PMI, dimensional inspection, hydrostatic test, NDT, third-party inspection
Quality Certificate EN 10204 3.1 MTC; classification society certificates available
Packaging Wooden cases, pallets, woven bags, or as per customer requirements

CuNi 70/30 Copper Nickel Equal Tee C71500 Weldable Seawater Corrosion Resistant Marine Fitting



FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
