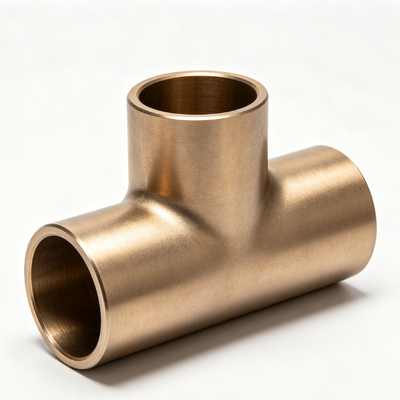

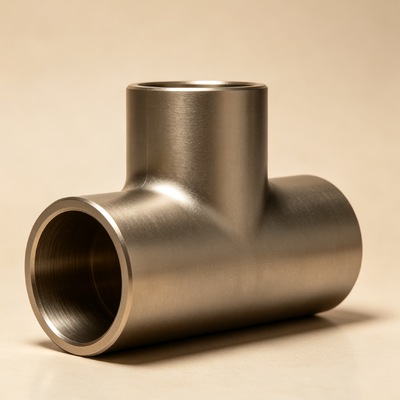

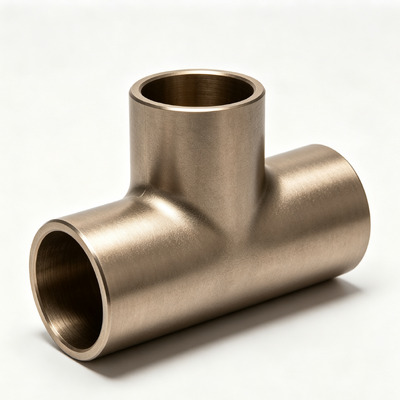

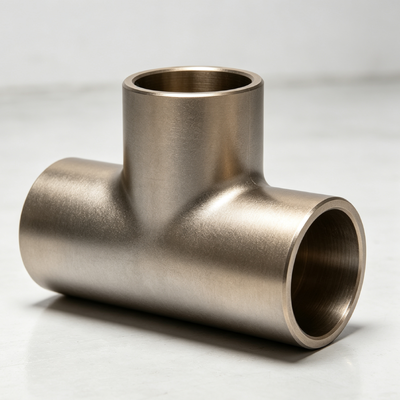

CuNi 70/30 Equal Tee C71500 Seawater Corrosion Resistant Cupro Nickel Marine Pipe Fitting
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Equal Tee |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | Copper Nickel Equal Tee | Design Standard | ASME B16.22 |
|---|---|---|---|
| Wallthickness | Schedule 10 To Schedule 40 | Corrosionresistance | High Resistance To Seawater Corrosion |
| Type | Equal Tee | Manufacturing Process | Seamless Or Welded |
| Temperature | High Temperature | Surfacefinish | Smooth, Pickled And Passivated |
| Package | Wooden Case | Corrosion Resistance | High Resistance To Seawater Corrosion |
| Connectiontype | Butt Weld / Socket Weld / Threaded | Head Code | Round |
| Standards | ASTM B466, ASTM B466M, ASME B16.9 | Temperature Rating | Up To 400°F |
| Pressure Rating | Class 150 To Class 600 (varies By Size And Standard) | Productname | Copper Nickel Equal Tee |
Product Description
CuNi 70/30 Equal Tee C71500 Seawater Corrosion Resistant Cupro Nickel Marine Pipe Fitting
1. Product Description
The Copper Nickel Equal Tee is a T-shaped pipe fitting with three ports of identical diameter. It is mainly used for equal-diameter branching, flow division, or flow combination in piping systems. It is commonly made from Copper Nickel 90/10 and Copper Nickel 70/30, which provide excellent seawater corrosion resistance, biofouling resistance, and weldability. The product is usually manufactured by seamless hot-pushing, die forging, or extrusion, followed by solution annealing, pickling, and passivation. It can be produced according to ASTM B466, ASME B16.9, EEMUA 146, EEMUA 234, DIN 86088, or customer drawings.
2. Product Applications
-
Shipbuilding: Seawater cooling lines, ballast water systems, fire mains, bilge systems, deck drainage systems, and seawater desalination piping.
-
Offshore Engineering: Seawater lift systems, cooling water distribution, and firewater ring mains on offshore platforms, FPSOs, and offshore wind platforms.
-
Desalination: Feed headers, brine recirculation lines, and product water branch pipes in MSF, MED, and RO systems.
-
Power Industry: Essential service water systems in nuclear plants, circulating cooling water systems in thermal plants, and auxiliary cooling systems in hydro plants.
-
Petrochemical Industry: Chloride-containing piping, brine lines, cooling water bypass lines, and heat exchanger connections.
-
Municipal and Port Engineering: Coastal water supply networks, port firewater systems, and aquarium circulating water systems.
3. Product Advantages
-
Seawater Corrosion Resistance: Low corrosion rate in flowing seawater and chloride media, with good resistance to pitting, crevice corrosion, and stress corrosion.
-
Biofouling Resistance: Naturally released copper ions help inhibit barnacles, shellfish, and algae, reducing cleaning and maintenance frequency.
-
Good Weldability: Suitable for butt welding, socket welding, and threaded connection, making field installation convenient.
-
Wide Temperature Adaptability: Good toughness at low temperatures and stable strength at elevated temperatures.
-
Erosion-Corrosion Resistance: Long service life in seawater systems with relatively high flow velocity.
-
Good Economy: Lower life-cycle cost than titanium and some high-alloy stainless steels in seawater service.
-
Long Service Life: Suitable for long-term marine service with low maintenance cost.
4. Product Functions
-
Equal-Diameter Flow Division: Divides main pipeline flow into two equal-diameter branch lines.
-
Equal-Diameter Flow Combination: Combines two equal-diameter flow streams into one main pipeline.
-
Right-Angle Branching: Provides a 90-degree perpendicular branch connection with three identical internal diameters.
-
Piping Connection: Used as a branch node in piping networks for pipeline extension and direction change.
-
Flow Transition: Smooth internal surface reduces turbulence and local vortices, ensuring smooth fluid passage.
-
Standardized Connection: Facilitates standardized piping design, installation, and later maintenance.
5. Key Technical Parameters
| Item | Parameter |
| Product Name | Copper Nickel Equal Tee |
| Common Material | Copper Nickel 90/10, Copper Nickel 70/30 |
| Equivalent Grades | UNS C70600, UNS C71500, CuNi10Fe1Mn, DIN 2.0872 |
| Nominal Size | DN15–DN900, 1/2"–36", customizable |
| Branch Size | Same as main pipe |
| Wall Thickness | SCH5S, SCH10S, SCH40S, SCH80S, SCH160, XS, XXS |
| End Connection | Butt Weld, Socket Weld, Threaded |
| Pressure Rating | Butt weld determined by wall thickness; socket weld and threaded available in 3000 lb, 6000 lb |
| Temperature Range | -50°C to +300°C |
| Tensile Strength | C70600 typically ≥275 MPa; C71500 typically ≥345 MPa |
| Yield Strength | C70600 typically ≥105 MPa |
| Elongation | ≥30% |
| Density | Approx. 8.94 g/cm³ |
| Standards | ASTM B466, ASME SB466, ASME B16.9, EEMUA 146, EEMUA 234, DIN 86088 |
| Manufacturing Process | Seamless hot-pushing, die forging, extrusion, solution annealing, pickling and passivation |
| Testing | PMI, dimensional inspection, hydrostatic test, NDT, third-party inspection |
| Quality Certificate | EN 10204 3.1 MTC; classification society certificates available |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
