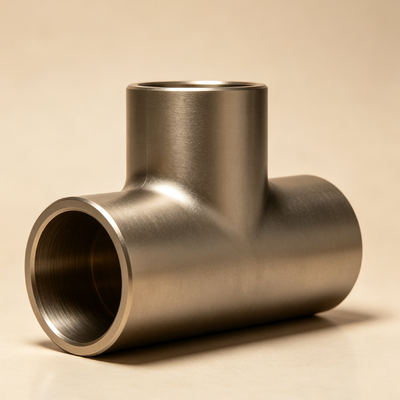

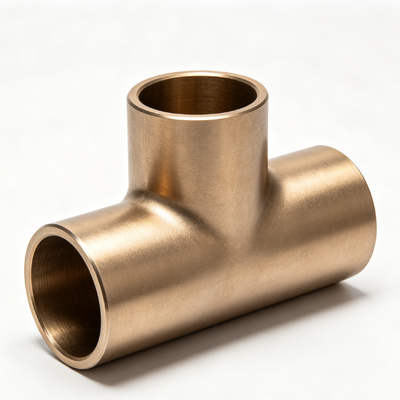

Seawater Corrosion Resistant Copper Nickel Equal Tee ASME B16.9 Seamless Buttweld Fitting for Marine Applications
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Equal Tee |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | Copper Nickel Equal Tee | Grade | C70600 |
|---|---|---|---|
| Coating | Brass | Material | Copper Nickel Alloy |
| Productname | Copper Nickel Equal Tee | Connectiontype | Butt Weld |
| Size | 1/2 Inch - 24 Inch | Manufacturingprocess | Seamless Or Welded |
| Shape | Equal | Temperature Rating | -20°C To 120°C |
| Product Type | Reducing Tee | Application | Marine, Chemical Processing, Offshore, Heat Exchangers |
| Process | Seamless / Welded / Fabricated | Color | Golden |
| Design Standard | ASME B16.22 | Surface Treatment | Pickling, Sandblasting, Polishing |
| Highlight | Copper Nickel 70/30 Equal Tee,Seamless Buttweld Fitting,ASME B16.9 Seawater Tee |
||
Product Description
Copper Nickel 70/30 Equal Tee ASME B16.9 Seamless Buttweld Fitting Seawater
1. Product Description
Copper Nickel Equal Tee is a T-shaped pipe fitting with three ports of equal nominal diameter. It is made of copper-nickel alloy, commonly UNS C70600 (90/10 Cu-Ni) and UNS C71500 (70/30 Cu-Ni). The fitting can be produced by seamless or forging process and is mainly used for 90-degree branch connections in piping systems. It is normally manufactured to ASME B16.9, ASTM B466/B467, MSS SP-43, and DIN 86086. Copper-nickel alloy offers high strength, excellent seawater corrosion resistance, natural anti-biofouling performance, and good weldability. The surface is usually pickled and passivated, making it suitable for marine, shipbuilding, desalination, and chemical applications.
2. Product Applications
Shipbuilding and marine engineering: seawater cooling lines, ballast water systems, fire fighting mains, bilge and sewage discharge systems.
Offshore oil and gas platforms: seawater lift pipes, equipment cooling lines, firewater ring mains, seawater injection systems.
Desalination plants: intake pipelines, brine circulation lines, reverse osmosis feed distribution, concentrate discharge pipelines.
Power generation: condenser cooling water systems, essential service water systems, circulating cooling water systems.
Petrochemical industry: pipelines for chloride-containing, saline, and weakly acidic media.
Coastal public facilities: coastal fire protection systems, large HVAC systems, marine seawater retrofit projects.
3. Product Advantages
Outstanding seawater corrosion resistance: forms a stable protective film in both static and flowing seawater; corrosion rate in marine environments is typically below 0.025 mm/year.
Natural anti-biofouling: trace copper ion release helps inhibit marine organism attachment and growth, reducing cleaning and maintenance.
Good welding and processing performance: suitable for cold bending, flaring, and welding; generally no preheating or post-weld heat treatment required.
High flow velocity resistance: can operate safely for long periods at seawater velocities up to 3.5 m/s.
Long service life: marine service life can reach 25 years or more.
Good life-cycle economy: initial cost is higher than carbon steel, but lower maintenance and fewer replacements reduce total cost.
4. Product Functions
Flow splitting and combining: three equal-diameter ports allow one stream to be divided into two or two streams to be merged into one.
90-degree branch connection: provides a perpendicular branch connection in piping systems.
Balanced flow distribution: ensures stable flow among the three ports with low pressure loss.
Corrosive media conveyance: suitable for long-term transportation of seawater and other corrosive fluids.
System integrity: maintains structural strength and sealing performance under high-temperature and high-pressure conditions.
5. Key Technical Parameters
| Item | Specification |
| Product Name | Copper Nickel Equal Tee |
| Material | Cu-Ni 90/10 (UNS C70600), Cu-Ni 70/30 (UNS C71500) |
| Chemical Composition C70600 | Cu: balance; Ni: 9.0–11.0%; Fe: 1.0–1.8%; Mn: ≤1.0% |
| Chemical Composition C71500 | Cu: balance; Ni: 29.0–33.0%; Fe: 0.4–1.0%; Mn: ≤1.0% |
| Size Range | 1/2"–48" (DN15–DN1200) |
| Wall Thickness | Sch10s, Sch40s, Sch80s, Sch160, XS, XXS |
| Standards | ASME B16.9; ASTM B466/B467; MSS SP-43; DIN 86086 |
| End Connection | Butt weld, socket weld, threaded |
| Manufacturing Process | Seamless, forged |
| Tensile Strength | 303–414 MPa |
| Yield Strength | 110–135 MPa |
| Elongation | 30–42% |
| Density | 8.94 g/cm³ |
| Working Temperature | -196°C to +400°C |
| Pressure Rating | Class 150, 300, 600; up to 3000 psi |
| Surface Finish | Pickled and passivated |
| Seawater Corrosion Rate | Less than 0.025 mm/year |
| Inspection | PMI, dimensional inspection, hydrostatic test, NDT available |
| Customization | Size, material, wall thickness, and end connection available upon request |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
