Cupro Nickel 70/30 Equal Tee UNS C71500 ASME B16.9 Marine Pipe Fitting with High Seawater Corrosion Resistance

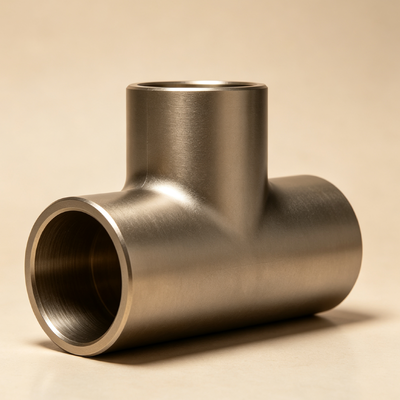

  • Cupro Nickel 70/30 Equal Tee UNS C71500 ASME B16.9 Marine Pipe Fitting with High Seawater Corrosion Resistance

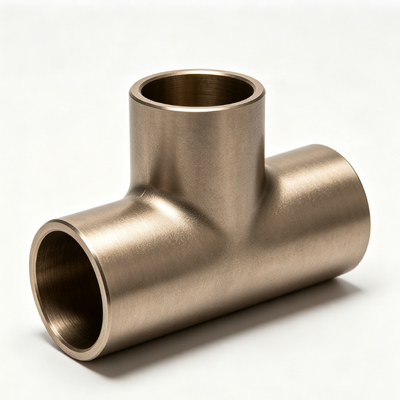

  • Cupro Nickel 70/30 Equal Tee UNS C71500 ASME B16.9 Marine Pipe Fitting with High Seawater Corrosion Resistance
  • Cupro Nickel 70/30 Equal Tee UNS C71500 ASME B16.9 Marine Pipe Fitting with High Seawater Corrosion Resistance
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Copper Nickel Equal Tee
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10Ton/Month
Product Details
Product Name Copper Nickel Equal Tee Corrosionresistance High Resistance To Seawater Corrosion
Key Features Excellent Seawater Corrosion Resistance Temperature Rating Up To 400°F
End Connection Butt Weld, Socket Weld, Threaded Surfacefinish Smooth, Pickled And Passivated
Place China Color Silvery Metallic
Connection Butt Weld / Socket Weld / Threaded Process Seamless / Welded / Fabricated
Origin Shanghai, China Weight 0.2 Lbs
Wall Thickness Schedule 10 To Schedule 160 Temperature High Temperature
Standard ASTM B466, ASTM B466M Durability High
Highlight

Cupro Nickel 70/30 Equal Tee

,

UNS C71500 Marine Pipe Fitting

,

ASME B16.9 Copper Nickel Tee
Leave a Message
Product Description

Cupro Nickel 70/30 Equal Tee UNS C71500 ASME B16.9 Marine Pipe Fitting

1. Product Description

Copper Nickel Equal Tee is a T-shaped pipe fitting with three ports of identical nominal diameter. It is mainly used for 90-degree branch connections in piping systems. The fitting is usually made from copper-nickel alloy UNS C70600 (90/10 Cu-Ni) and UNS C71500 (70/30 Cu-Ni), offering high strength, excellent seawater corrosion resistance, and good weldability. It can be produced by seamless or forging processes and complies with ASME B16.9, ASTM B466/B467, MSS SP-43, and DIN 86086. The surface is normally pickled and passivated. It is suitable for marine, shipbuilding, desalination, and chemical applications.

2. Product Applications

  1. Shipbuilding and marine engineering: seawater cooling systems, ballast water systems, fire fighting mains, bilge and sewage discharge systems.

  2. Offshore oil and gas platforms: seawater lift pipes, equipment cooling lines, firewater ring mains, seawater injection systems.

  3. Desalination plants: intake pipelines, brine circulation, reverse osmosis feed distribution, concentrate discharge.

  4. Power generation: condenser cooling water systems, essential service water, circulating cooling water.

  5. Petrochemical industry: transport of chloride-containing, saline, and weakly acidic media.

  6. Coastal facilities: coastal fire protection, large HVAC systems, marine seawater retrofit projects.

3. Product Advantages

  1. Excellent seawater corrosion resistance: forms a stable protective film in static and flowing seawater; corrosion rate is below 0.025 mm/year in marine environments.

  2. Natural anti-biofouling: continuous release of trace copper ions helps prevent marine organism attachment and growth.

  3. Good weldability: suitable for cold bending and flaring; generally no preheating or post-weld heat treatment required.

  4. High flow velocity resistance: safe operation at seawater velocities up to 3.5 m/s.

  5. Low maintenance and long service life: marine service life can reach 25 years or more.

  6. Good life-cycle economy: higher initial cost than carbon steel, but lower maintenance and longer service life reduce total cost.

4. Product Functions

  1. Flow splitting and combining: three equal openings allow one stream to be divided into two or two streams to be merged into one.

  2. 90-degree branch connection: provides a perpendicular branch in pipeline systems.

  3. Balanced flow distribution: ensures stable flow among the three ports with low pressure loss.

  4. Corrosive media conveyance: suitable for long-term transportation of seawater and other corrosive fluids.

  5. System integrity: maintains structural strength and sealing performance under high-temperature and high-pressure conditions.



5. Key Technical Parameters​



Item Specification
Product Name Copper Nickel Equal Tee
Material Cu-Ni 90/10 (UNS C70600), Cu-Ni 70/30 (UNS C71500)
Chemical Composition C70600 Cu: balance; Ni: 9.0–11.0%; Fe: 1.0–1.8%; Mn: ≤1.0%
Chemical Composition C71500 Cu: balance; Ni: 29.0–33.0%; Fe: 0.4–1.0%; Mn: ≤1.0%
Size Range 1/2"–48" (DN15–DN1200)
Wall Thickness Sch10s, Sch40s, Sch80s, Sch160, XS, XXS
Standards ASME B16.9; ASTM B466/B467; MSS SP-43; DIN 86086
End Connection Butt weld, socket weld, threaded
Tensile Strength 303–414 MPa
Yield Strength 110–135 MPa
Elongation 30–42%
Density 8.94 g/cm³
Working Temperature -196°C to +300°C
Pressure Rating Class 150, 300, 600; up to 3000 psi
Surface Finish Pickled and passivated
Seawater Corrosion Rate Less than 0.025 mm/year
Inspection PMI, dimensional inspection, hydrostatic test, NDT available
Customization Size, material, wall thickness, and end connection available upon request

Cupro Nickel 70/30 Equal Tee UNS C71500 ASME B16.9 Marine Pipe Fitting with High Seawater Corrosion Resistance





FAQ

1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
