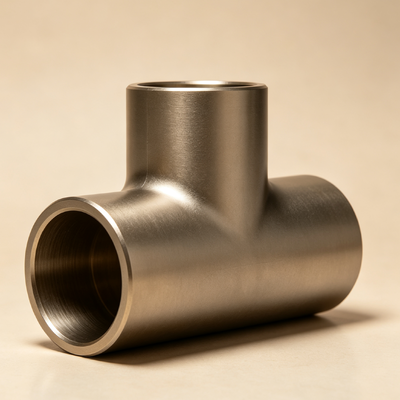

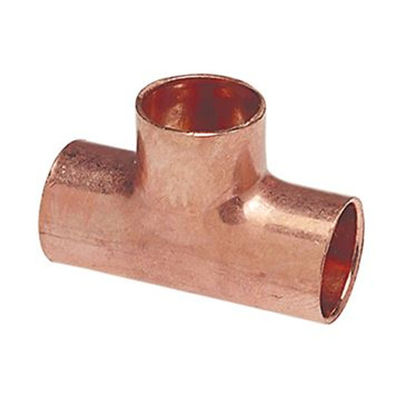

CuNi 70/30 Copper Nickel Equal Tee ASME B16.9 Buttweld Fitting Corrosion Resistant Marine Grade
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Equal Tee |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | Copper Nickel Equal Tee | Mode Of Connection | Welding |
|---|---|---|---|
| Color | Silvery Metallic | Design Standard | ASME B16.22 |
| Pressure Rating | 150LB - 300LB | Connection | Welded |
| Type | Equal Tee | Manufacturingprocess | Seamless Or Welded |
| Temperature Rating | -20°C - 300°C | Packaging Type | Carton Box |
| Package | Wooden Case | Key Features | Excellent Seawater Corrosion Resistance |
| Grade | C70600 | Worksday | 15-30days |
| Process | Seamless / Welded / Fabricated | Surface | Smooth |
| Highlight | Corrosion Resistant Copper Nickel Equal Tee,ASME B16.9 CuNi 70/30 Equal Tee,Marine Grade Buttweld Copper Nickel Tee |
||
Product Description
CuNi 70/30 Copper Nickel Equal Tee ASME B16.9 Buttweld Fitting Corrosion Resistant Marine
1. Product Description
Copper Nickel Equal Tee is a T-shaped pipe fitting made from copper-nickel alloy, typically Cu-Ni 90/10 (UNS C70600) or Cu-Ni 70/30 (UNS C71500). It has three identical-diameter ports and is used for perpendicular branch connections in piping systems. The fitting is manufactured by forging or seamless process and complies with ASTM B466, ASME B16.9, MSS SP-43, and DIN 86086. The 90/10 alloy contains approximately 90% copper and 10% nickel, with controlled additions of iron and manganese. The 70/30 alloy contains 29–33% nickel and offers higher corrosion resistance in aggressive environments.
2. Product Applications
Shipbuilding and marine engineering: seawater cooling systems, ballast water systems, fire fighting mains, bilge and sewage discharge systems.
Offshore oil and gas platforms: seawater lift pipes, platform equipment cooling, firewater ring mains, seawater injection systems.
Desalination plants: intake pipelines, brine circulation, reverse osmosis feed distribution, concentrate outfall.
Petrochemical industry: transportation of chloride-containing, saline, and weakly acidic media.
Power generation: condenser cooling water systems, essential service water in nuclear plants, circulating cooling water in thermal plants.
Other fields: coastal fire facilities, large HVAC systems, marine seawater retrofit projects.
3. Product Advantages
Outstanding seawater corrosion resistance: forms a stable protective film in static and flowing seawater; pitting and crevice corrosion resistance far exceeds 316L stainless steel. Corrosion rate is less than 0.025 mm/year in marine environments.
Natural anti-fouling: continuously releases trace copper ions, effectively preventing marine organism adhesion and growth without external coatings or electrolytic systems. Biofouling attachment rate is more than 60% lower than 316L.
Excellent weldability: good ductility for cold bending and flaring; no preheating or post-weld heat treatment required; weld metal properties match the base metal.
High flow velocity tolerance: safe operation at seawater velocities up to 3.5 m/s, outperforming common copper alloys.
Life-cycle economics: slightly higher initial cost than carbon steel but maintenance-free or very low maintenance over service life; overall cost reduced by more than 40%.
Long service life: marine environment service life of 25 years or more.
4. Product Functions
Flow distribution and combination: three identical-diameter openings allow one fluid stream to be split into two or two streams to be combined into one.
Perpendicular branch connection: provides a 90° branch connection for perpendicular flow branching in pipeline systems.
Balanced flow: ensures balanced flow distribution across all three ports with minimal pressure loss and no turbulent flow.
Corrosion-resistant fluid conveyance: the copper-nickel alloy construction ensures safe conveyance of seawater and other corrosive media over extended periods.
System integrity: maintains structural integrity and leak-tight performance under high-temperature and high-pressure conditions.
5. Key Technical Parameters
| Parameter | Specification |
| Material Grade | Cu-Ni 90/10 (UNS C70600), Cu-Ni 70/30 (UNS C71500) |
| Chemical Composition (C70600) | Cu: 88.6% min, Ni: 9.0–11.0%, Fe: 1.0–1.8%, Mn: ≤1.0% |
| Chemical Composition (C71500) | Cu: Balance, Ni: 29.0–33.0%, Fe: 0.4–1.0%, Mn: ≤1.0% |
| Size Range | 1/2″–48″ (DN15–DN1200) |
| Wall Thickness / Schedule | Sch10s, Sch40s, Sch80s, Sch160, XS, XXS |
| Manufacturing Standards | ASTM B466/B467; ASME B16.9; MSS SP-43; DIN 86086 |
| Connection Type | Butt Weld / Socket Weld / Threaded |
| Tensile Strength | 303–414 MPa (44,000–60,000 psi) |
| Yield Strength (0.2%) | Approximately 110–135 MPa (16,000–20,000 psi) |
| Elongation | 30–42% |
| Density | 8.94 g/cm³ |
| Temperature Range | -196°C to +400°C |
| Pressure Rating | Class 150, 300, 600; Max. 3000 psi |
| Surface Finish | Smooth, Pickled and Passivated |
| Corrosion Rate (Seawater) | Less than 0.025 mm/year |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
