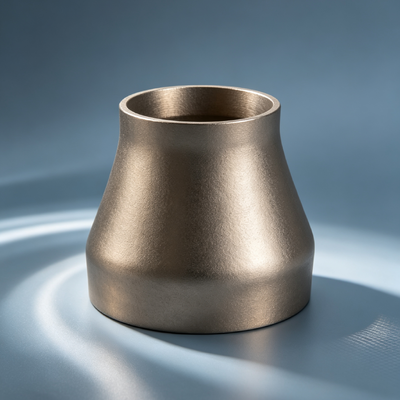

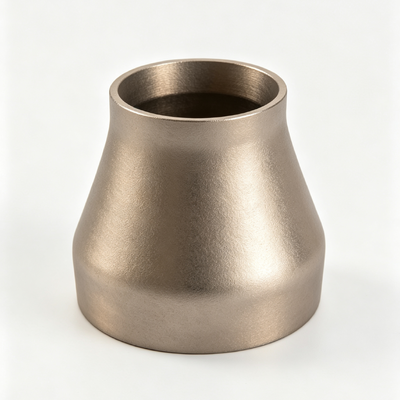

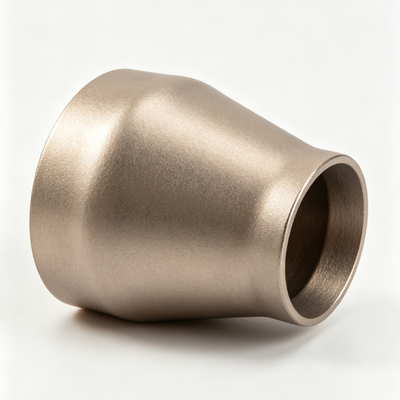

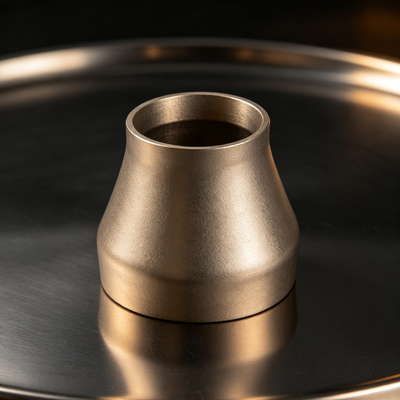

Seamless Forged CuNi 70/30 Copper Nickel Reducer ASTM B466 ASME B16.9 High Corrosion Resistance Marine Pipe Fitting
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Reducer Fitting |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | Copper Nickel Reducer Fitting | Surfacefinish | Plain / Painted / Galvanized |
|---|---|---|---|
| Size | 1/2 Inch | Connectiontype | Butt Weld / Threaded / Socket Weld |
| End Connection | NPT | Pressurerating | 150# To 2500# |
| Compatibility | Compatible With Various Pipe Materials | Endconnection | Butt Weld / Socket Weld / Threaded |
| Product Code | RDF-15 | Face Type | Straight Reducing Coupling |
| Shape | Conical | Easy Installation | Yes |
| Height | 1.5 In | High Quality | Yes |
| Corrosion Resistance | High | Wallthickness | Schedule 10 To Schedule 160 |
| Highlight | Seamless CuNi 70/30 concentric reducer,ASTM B466 marine pipe fitting,Copper nickel reducer ASME B16.9 |
||
Product Description
Seamless Forged CuNi 70/30 Copper Nickel Concentric Reducer ASTM B466 ASME B16.9 Marine Pipe Fitting
I. Product Description
A copper nickel reducer is a pipe fitting used to change pipe diameter. It is also known as a copper-nickel reducer or reducing joint. It connects a larger pipe size to a smaller pipe size through a conical transition section, allowing fluid to pass smoothly through the piping system. Common materials are 90/10 CuNi and 70/30 CuNi. 90/10 CuNi corresponds to UNS C70600 and offers excellent seawater corrosion resistance and anti-biofouling performance. 70/30 CuNi corresponds to UNS C71500 and is more durable under higher flow velocities and more corrosive conditions.
By configuration, copper nickel reducers are divided into concentric reducers and eccentric reducers. A concentric reducer has a common centerline at both ends and is suitable for vertical pipes and general size transitions. An eccentric reducer has offset centerlines and is suitable for drainage, venting, or maintaining one side of the pipe flush. Products can be manufactured by seamless, welded, or forged processes. End connections include butt weld, socket weld, threaded, and flanged types. Common standards include ASME B16.9, ASTM B366, ASTM B466, DIN 86089, EEMUA 146, and EEMUA 234.
II. Product Applications
Marine and Offshore Engineering: Seawater cooling systems, fire mains, ballast water systems, bilge systems, freshwater circulation systems, and process piping on offshore platforms.
Desalination and Water Treatment: Intake piping, reverse-osmosis pre-treatment lines, brine discharge lines, circulating water systems, and chemical dosing lines.
Power Industry: Circulating cooling water systems, condenser cooling lines, auxiliary cooling water systems, and industrial water networks in coastal thermal power plants and nuclear stations.
Petrochemical and Chemical Industry: Heat exchanger connections, caustic solution transfer lines, cooling circuits, organic heat-transfer fluid systems, and corrosive media piping.
Municipal Engineering: Water mains, district cooling networks, central air-conditioning chiller piping, and piping systems in large public buildings.
Food and Beverage: Sanitary piping, contamination-free transfer lines, and process pipelines requiring corrosion resistance.
General Industry: Diameter transitions and system connections in compressed air, industrial cooling water, and process material lines.
III. Product Advantages
Excellent Corrosion Resistance: Forms a stable protective film in seawater, saline solutions, and many chemical media, providing strong resistance to pitting, crevice corrosion, and erosion corrosion.
Anti-Biofouling: Copper-nickel material inhibits the attachment of marine organisms and microorganisms, reducing pipeline blockage and cleaning maintenance frequency.
Stable Mechanical Properties: High strength and good toughness allow the fitting to withstand pressure fluctuations, water hammer, and a certain degree of vibration.
Good Weldability and Machinability: Easy for on-site welding, installation, and maintenance, suitable for complex piping systems.
Long Service Life: In seawater and corrosive media, copper-nickel piping systems typically last more than 20 years with low maintenance costs.
Non-Magnetic: Suitable for equipment and systems sensitive to magnetic fields.
Smooth Inner Wall: Low fluid resistance helps reduce energy consumption and noise.
Low Lifecycle Cost: Although initial material cost is higher, comprehensive economic benefits are significant due to corrosion resistance, low maintenance, and infrequent replacement.
Good System Compatibility: Can be combined with copper-nickel pipes, fittings, flanges, and valves to form a complete corrosion-resistant piping system.
IV. Product Functions
Diameter Transition: Connects pipes of different diameters and achieves a smooth transition between larger and smaller pipe sizes.
Flow Regulation: Changes the flow area in a piping system, thereby adjusting flow rate, velocity, and pressure.
Equipment Adaptation: Matches the inlet and outlet sizes of pumps, valves, heat exchangers, condensers, and other equipment to piping.
Flow Optimization: The conical transition design reduces turbulence and local resistance, making fluid transition smoother.
Eccentric Drainage and Venting: Eccentric reducers are used where drainage, venting, or flush bottom or top alignment is required.
System Compatibility: Can be used with copper-nickel pipes, fittings, flanges, and valves to form a complete corrosion-resistant piping system.
Vibration and Noise Reduction: Proper size transition reduces sudden velocity changes, lowering pipeline vibration and noise.
Easy Installation and Maintenance: Standardized dimensions and multiple connection types facilitate on-site construction and later maintenance.
V. Key Product Parameters
| Parameter | Specification |
| Material Grade | 90/10 CuNi, UNS C70600; 70/30 CuNi, UNS C71500 |
| Chemical Composition (90/10) | Ni 9.0% to 11.0%, Fe 1.0% to 1.8%, Mn 0.5% to 1.0%, Cu balance |
| Chemical Composition (70/30) | Ni 29.0% to 33.0%, Fe 0.4% to 1.0%, Mn not more than 1.0%, Cu balance |
| Tensile Strength | 90/10: not less than 275 MPa; 70/30: typically 350 to 550 MPa, depending on temper |
| Yield Strength | 90/10: not less than 105 MPa; 70/30: typically 105 to 205 MPa, depending on temper |
| Elongation | 90/10: not less than 30%; 70/30: typically 20% to 40% |
| Density | Approximately 8.9 g/cm³ |
| Thermal Conductivity | 90/10 approximately 40 W/(m·K); 70/30 approximately 29 W/(m·K) |
| Coefficient of Linear Expansion | Approximately 16.2×10⁻⁶ per °C |
| Size Range | 1/2 inch to 24 inches, DN15 to DN500, extendable to DN1200 |
| Wall Thickness | SCH10, SCH40, SCH80, XH, etc. |
| Pressure Rating | Class 200, PN16, PN20, commonly 10 to 20 bar, depending on wall thickness and design |
| Temperature Range | -196°C to 300°C, depending on grade and working conditions |
| Configuration | Concentric Reducer, Eccentric Reducer |
| End Connection | Butt Weld, Socket Weld, Threaded, Flanged |
| Manufacturing Process | Seamless, Welded, Forged |
| Manufacturing Standard | ASME B16.9, ASTM B366, ASTM B466, DIN 86089, EEMUA 146, EEMUA 234 |
| Surface Finish | Smooth, Pickled, Passivated |
| End Type | Plain, Beveled |
| Applicable Media | Seawater, brine, freshwater, cooling water, caustic solutions, process water, etc. |
| Inspection Items | Dimension check, visual inspection, hydrostatic test, non-destructive testing, material certificate |
| Packing | Wooden case, pallet, bundled, according to customer requirements |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
