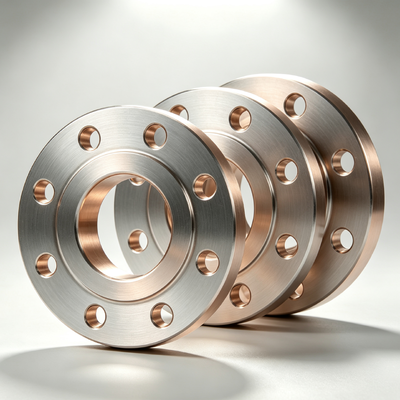

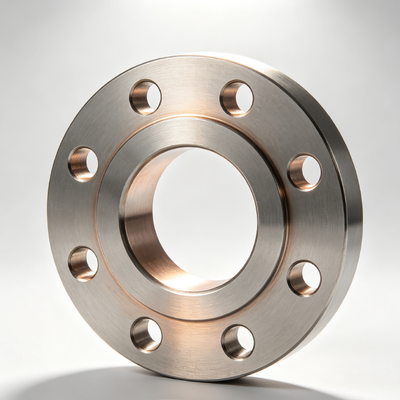

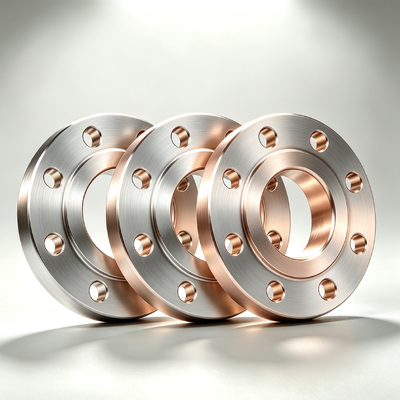

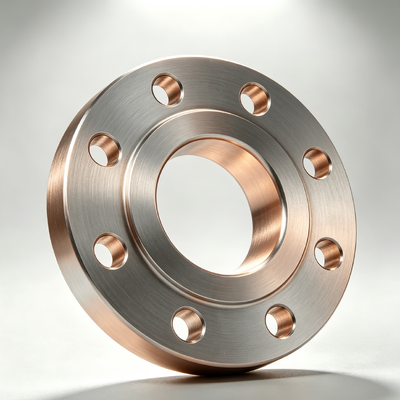

CuNi 70/30 Copper Nickel Socket Weld Flange Class 150 ASME B16.5 Forged Marine SWRF
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Flange |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | CuNi 70/30 Copper Nickel Socket Weld Flange Class 150 ASME B16.5 Forged Marine SWRF | Design | Weld Neck, Slip On, Etc. |
|---|---|---|---|
| Easy Installation | Yes | Thread Type | ASME B1.20.1(NPT) |
| Country Of Origin | China | Head Code | Hexagon |
| Product Type | Screw Thread Flange | Machinability | Fair |
| Hardness | HB 90-110 | Austenitic Stainless | C71500 |
| Coppercontent | 70% Copper | Press | 20Bar |
| Price Term | CIF CFR FOB Ex-Work | Temperaturerange | -50°C To 250°C |
| Connection | Butt Weld Or Threaded | Packing | Standard Packing |
Product Description
CuNi 70/30 Copper Nickel Socket Weld Flange Class 150 ASME B16.5 Forged Marine SWRF
1.Product Description
Copper Nickel Flanges are pipe-connecting components made from Cu-Ni alloys, available in 90/10 (C70600) and 70/30 (C71500) grades. They are produced via forging, solution annealing, precision machining, and surface passivation. The flanges feature bolt holes and sealing faces (RF, FF, RTJ, etc.) to ensure leak-proof joints when assembled with gaskets and fasteners.
2.Product Applications
Marine: Seawater cooling, ballast, fire-fighting, and auxiliary systems on ships and offshore platforms.
Power & Desalination: Cooling water intakes/discharges in coastal power plants, and brine pipelines in desalination facilities.
Industrial: Heat exchangers, condensers, and chemical pipelines handling corrosive fluids.
Others: Aquaculture water supply, and general piping connections for pumps, valves, and equipment.
3 · Product Advantages
Outstanding seawater corrosion resistance – corrosion rate < 0.025 mm/year (90/10) and ≤0.01 mm/year (70/30), far outperforming 316L.
Natural anti-biofouling – copper ions inhibit barnacle and algae growth, reducing cleaning frequency.
High strength & erosion resistance – 70/30 grade offers tensile ≥490 MPa, resisting high-velocity flow and cavitation.
Excellent weldability – compatible with Cu-Ni pipes for reliable joints.
Low magnetic permeability – suitable for non-magnetic environments.
Long service life – up to 3× that of stainless steel in seawater, with low maintenance costs.
4.Key Product Specifications
| Parameter | Value / Range |
| Grades | 90/10 (C70600), 70/30 (C71500) |
| Size | DN15 – DN1500 (½" – 60") |
| Pressure class | Class 150 – 2500; PN6 – PN100 |
| Temperature range | -196°C ~ 400°C |
| Flange types | WN, SO, BL, Th, SW, LJ |
| Facing types | RF, FF, RTJ, T&G, FM |
| Standards | ASME B16.5/B16.47, GB/T 9119, EN 1092, EEMUA 145 |
| Tensile strength | 90/10: 275–360 MPa; 70/30: 345–420 MPa (annealed) |
| Yield strength | 90/10: 90–160 MPa; 70/30: 120–200 MPa |
| Max. continuous use | ~300°C |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2.How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
