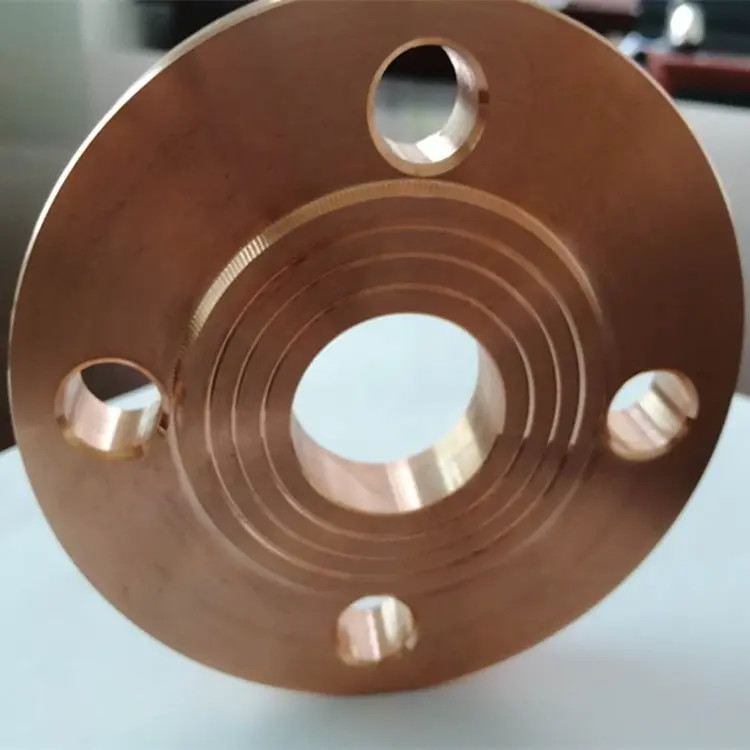

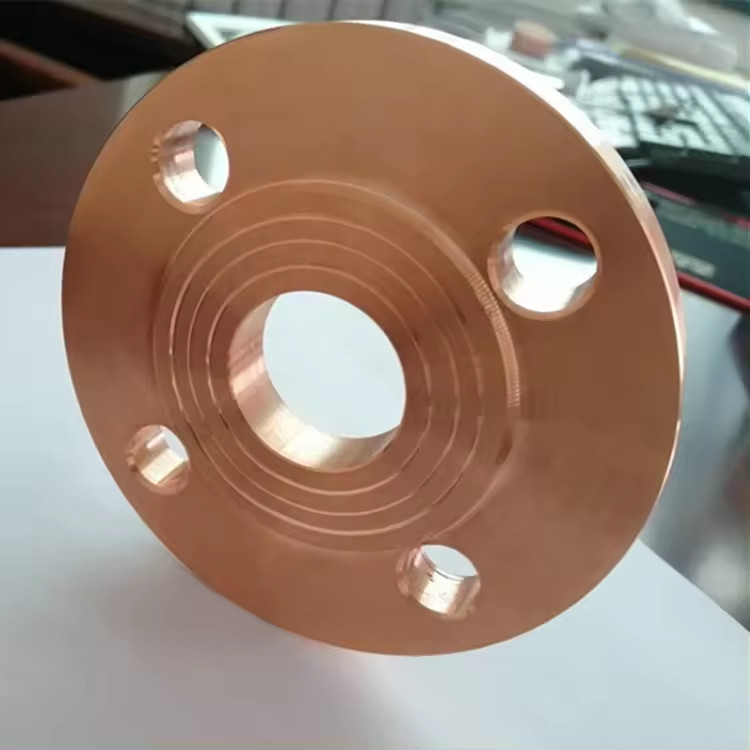

Copper Nickel Flange with Welding Flanged Connection for Fluid Transfer Systems

Product Description:

The Copper Nickel Flange is a high-quality pipe connecting component designed to meet the demanding requirements of various industrial applications. Known for its excellent corrosion resistance and durability, this flange is widely used in marine, chemical processing, and other harsh environments where reliability and longevity are paramount. The Copper Nickel material offers superior resistance to saltwater corrosion, making it an ideal choice for piping systems exposed to seawater and other aggressive fluids.

One of the key features of this Copper Nickel Flange is its availability in multiple face types, including Raised Face (RF), Flat Face (FF), and Ring Type Joint (RTJ). Each face type is engineered to provide a secure and leak-proof connection, ensuring optimal performance in different pressure and temperature conditions. The Raised Face design is commonly used in general applications, offering a small raised area around the flange bore to concentrate more pressure on the gasket. The Flat Face flange provides a smooth, flat surface ideal for low-pressure applications or where the flange is bolted to a flat surface. The Ring Type Joint flange incorporates a metal ring gasket that fits into a machined groove on the flange face, providing a high-integrity seal for high-pressure and high-temperature environments.

Pressure ratings for the Copper Nickel Flange range extensively from 150#, 300#, 600#, 900#, 1500# to 2500#. This wide range of pressure classes allows engineers and designers to select the right flange that matches the pressure requirements of their specific piping systems, ensuring safety and reliability. Whether it’s for low-pressure water lines or high-pressure steam or gas pipelines, these flanges provide robust performance and peace of mind.

In addition to pressure ratings, the Copper Nickel Flange comes in various thickness specifications, including Sch5s through Sch160, XS, and XXS thicknesses. This variety in thickness ensures compatibility with different pipe schedules and wall thicknesses, catering to a broad spectrum of industrial piping applications. The availability of multiple thickness options also enhances the structural integrity of the flange, allowing it to withstand mechanical stresses and thermal expansion without compromising the pipe connection.

The connection type for this flange is Welding Flanged, which means the flange is designed to be welded directly onto the piping. This welding connection provides a strong and permanent joint that is highly resistant to leaks and mechanical failures. Welding flanges are preferred in critical piping systems where strength and durability are essential, and they facilitate easier installation and maintenance compared to other connection types.

Another important aspect of this Copper Nickel Flange is the flexibility offered in terms of order quantity. With a minimum order quantity (MOQ) of just 1 piece, customers can procure customized flange solutions tailored to their specific project needs without the necessity of large volume purchases. This makes it convenient for small-scale projects, repairs, or prototype developments where only a limited number of flanges are required.

Customization is a significant advantage of this product. The Copper Nickel Flange can be manufactured to meet precise specifications and requirements, including dimensions, pressure ratings, face types, and thicknesses. This customized flange capability ensures that each flange perfectly fits the intended application, providing optimal performance and compatibility with the existing piping infrastructure.

In summary, the Copper Nickel Flange is an essential pipe connecting component that combines excellent corrosion resistance, versatile face types, a wide range of pressure ratings, and various thickness options. Its welding flange connection type ensures a reliable and robust joint, while the low MOQ and customization options cater to diverse industrial needs. Whether for marine applications, chemical plants, or general piping systems, the Copper Nickel Flange offers a dependable and efficient solution for pipe connecting challenges.

Applications:

The TOBO Copper Nickel Flange, model number Nickel Flange, is a highly reliable product originating from China and certified under ASTM/DIN standards. This flange is designed with a weld neck type and is ideal for use in demanding environments due to its robust construction and excellent pressure ratings ranging from 150# to 2500#. The product is available with various coatings including black paint, yellow transparent, and both cold and hot dip galvanizing, ensuring durability and corrosion resistance in diverse application conditions.

With a supply ability of 100 tons per month and a minimum order quantity of just 1 piece, TOBO offers flexible purchasing options supported by negotiable pricing. The standard shipping package ensures the flange arrives in optimal condition within a delivery time of approximately 15 workdays. Payment terms are versatile, accepting L/C, T/T, and Western Union, making transactions convenient for international customers.

The TOBO Copper Nickel Flange is widely applied across multiple industries such as oil, gas, chemical, petrochemical, power, offshore, and shipbuilding sectors. Its weld neck connection type provides a secure and leak-proof joint, essential for high-pressure systems. The flange’s pressure ratings from 150# to 2500# accommodate a broad range of operational demands, making it suitable for both low and high-pressure applications.

In terms of application occasions and scenarios, this flange is perfectly suited for pipeline systems transporting fluids like oil and gas, where corrosion resistance and strength are critical. It is frequently utilized in offshore platforms and shipbuilding projects, where exposure to harsh marine environments demands materials that can withstand saline corrosion and mechanical stress. Additionally, chemical and petrochemical plants benefit from the flange’s ability to endure aggressive chemicals and high temperatures.

Furthermore, the TOBO Nickel Flange supports wide application scenarios in power generation facilities, including thermal and nuclear power plants, where it contributes to the safe and efficient operation of steam and water pipelines. The flange’s compliance with standards 9010 and 7030 ensures high quality and compatibility with global engineering requirements, making it a preferred choice for engineers and procurement specialists seeking dependable flange solutions.

Overall, the TOBO Copper Nickel Flange combines superior material quality, versatile pressure ratings, and multiple coating options, delivering exceptional performance in critical industrial applications. Its adaptability to different connection and environmental needs makes it an indispensable component in modern infrastructure projects worldwide.

Customization:

TOBO offers customized Copper Nickel Flange products, model number Nickel Flange, originating from China. Our flanges are certified to ASTM/DIN standards, ensuring high quality and reliability. We accept a minimum order quantity of 1pcs with negotiable pricing to meet your specific needs.

Our Copper Nickel Flanges are available with various surface treatments including Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, and both Cold and Hot Dip Galvanized finishes. We provide multiple face types such as Raised Face, Flat Face, and Ring Type Joint, suitable for different applications.

The pressure rating options for our customized flanges include 150#, 300#, 600#, 900#, 1500#, and 2500#, accommodating a wide range of pressure requirements. Specifically, our Class150 flanges meet industry standards for moderate pressure systems.

Packaging is handled carefully using Wooden Cases, Pallets, Wooden Boxes, Cartons, Plywood Cases, or Bundles to ensure safe delivery. Standard shipping packages are used, and delivery is typically completed within 15 workdays.

We support various payment terms including L/C, T/T, and Western Union for your convenience. With a supply ability of 100 tons per month, TOBO is well-equipped to handle large orders of customized flanges such as the popular 7030 model.

Choose TOBO for reliable, high-quality Copper Nickel Flanges customized to your exact specifications.

Support and Services:

Our Copper Nickel Flange products are supported by comprehensive technical assistance to ensure optimal performance and longevity. We provide detailed product documentation, including specifications, installation guidelines, and maintenance procedures to help you achieve the best results.

Our technical support team is available to assist with product selection, compatibility questions, and troubleshooting. We offer expert advice on welding techniques, corrosion resistance, and pressure ratings to match your application requirements.

In addition, we provide customized services such as flange inspection, testing, and certification to meet specific industry standards. Our commitment to quality assurance ensures that each Copper Nickel Flange meets stringent durability and reliability criteria.

For ongoing support, we offer training sessions and resources to keep your team informed about best practices in handling and maintaining Copper Nickel Flanges. Our goal is to help you maximize the value and efficiency of your piping systems with our professional support services.

FAQ:

Q1: What is the brand and model number of the Copper Nickel Flange?

A1: The Copper Nickel Flange is branded TOBO and the model number is Nickel Flange.

Q2: Where is the Copper Nickel Flange manufactured?

A2: The Copper Nickel Flange is made in China.

Q3: What certifications does the Copper Nickel Flange have?

A3: It is certified according to ASTM and DIN standards.

Q4: What is the minimum order quantity and how is the product packaged?

A4: The minimum order quantity is 1 piece, and it comes in a standard shipping package.

Q5: What are the payment terms and typical delivery time for this product?

A5: Payment can be made via L/C, T/T, or Western Union. The typical delivery time is 15 workdays.

Q6: What is the supply capacity for the Copper Nickel Flange?

A6: The supply ability is 100 tons per month.

Q7: Is the price fixed or negotiable?

A7: The price of the Copper Nickel Flange is negotiable.
