1. Product Description

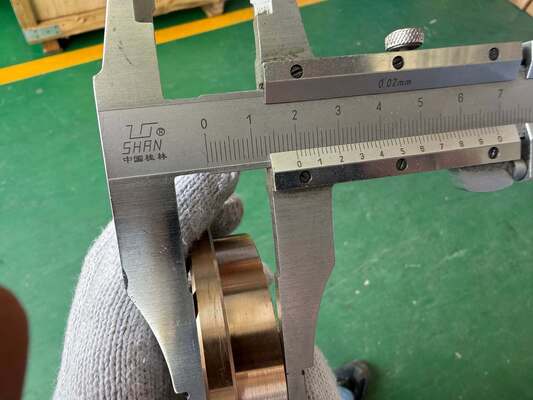

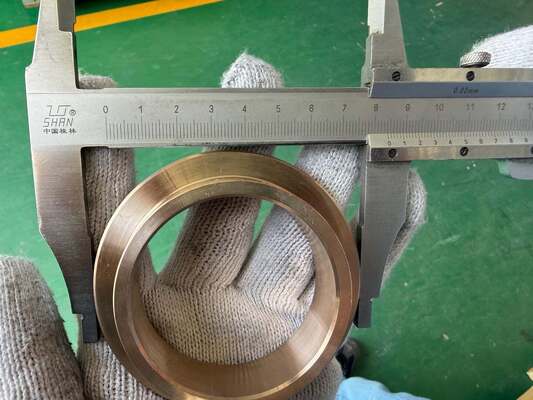

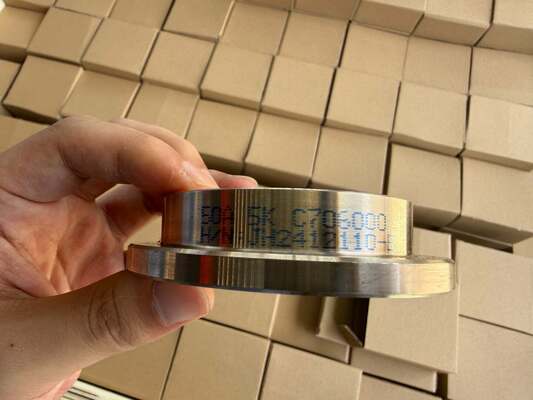

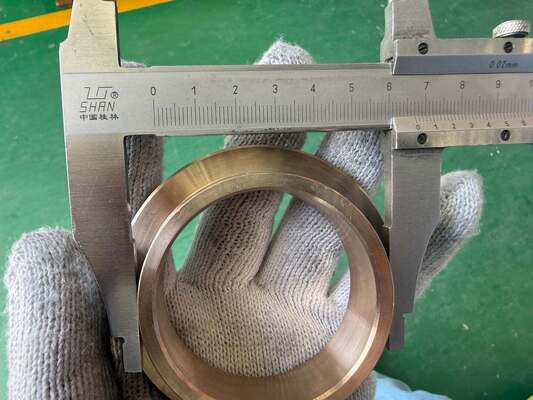

A Stub End Fitting is a butt-weld pipe component designed to pair with a lap joint flange, forming a detachable flanged connection in piping systems. It features a flared lip on one end—which acts as the sealing surface against the flange face—and a plain, beveled end on the other for full-penetration butt welding to the pipe. The lap joint flange slides freely over the stub end and is never welded to it, allowing 360° rotation for effortless bolt alignment during assembly.

Three standard configurations are widely available: Type A (per ASME B16.9, with a long hub and full wall thickness), Type B (per MSS SP‑43, with a short hub and reduced wall for lighter service), and Type C (per MSS SP‑43, with the shortest hub and thin wall for low‑pressure applications). Common materials include carbon steel, austenitic stainless steels (304/304L, 316/316L), duplex/super duplex stainless steels, chrome‑moly alloys, and high‑performance nickel‑based alloys (Monel, Inconel, Hastelloy) as well as titanium and copper‑nickel.

2. Product Applications

Stub end fittings serve critical roles in numerous industrial sectors:

• Petroleum refining and petrochemical plants – for process lines that require frequent catalyst regeneration or heat exchanger cleaning.

• Chemical and specialty chemical production – particularly in aggressive media service where corrosion resistance is paramount.

• Food, beverage, and dairy processing – where sanitary conditions demand regular wash‑down and disassembly of flanged joints.

• Pharmaceutical and biotechnology – for sterile fluid transfer systems with strict cleaning protocols.

• Power generation – in both fossil‑fuel and nuclear plants, for cooling water, steam, and auxiliary piping.

• Water and wastewater treatment – for pump stations, filter units, and chemical feed systems.

• Marine and offshore platforms – where saltwater corrosion and space constraints favor rotatable flanges.

• Vacuum and semiconductor – in ISO‑KF and other vacuum plumbing where leak‑tight, easily serviceable connections are needed.

They are especially recommended for systems that undergo regular maintenance, turnaround inspections, or component swaps, because the flange can be slid off without disturbing the weld joint.

3. Product Advantages

• Significant cost reduction – Only the stub end needs to be made of the expensive alloy that resists the process fluid; the lap joint flange can be fabricated from ordinary carbon steel. For a 12‑inch Class 600 Inconel 625 system, this practice can cut the cost of each flanged joint by more than 50% compared with using a full weld‑neck flange.

• Effortless maintenance access – Removing the lap joint flange does not require cutting any welds, saving hours per maintenance window and eliminating the need for re‑welding and re‑heat treatment.

• Bolting flexibility – The free‑spinning flange eliminates the tedious alignment of bolt holes, especially on large‑diameter piping where rotating the pipe spool is impractical or dangerous.

• Superior corrosion and erosion resistance – The flared lip can be made from the same high‑grade material as the pipe, ensuring uniform resistance at the sealing interface.

• Versatile material compatibility – Available in virtually all pipe alloys, enabling seamless integration with existing metallurgies and weld procedures.

• Reduced inventory – Standardizing on stub ends with carbon steel lap joints allows stocking fewer flange sizes and materials, simplifying supply chain management.

4.Key Specifications
