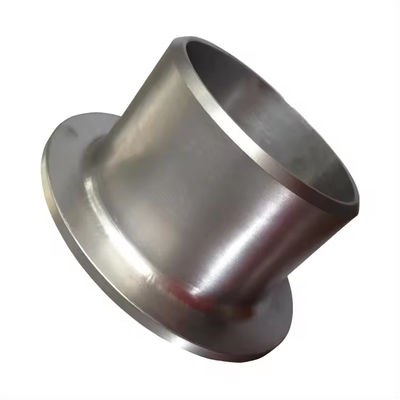

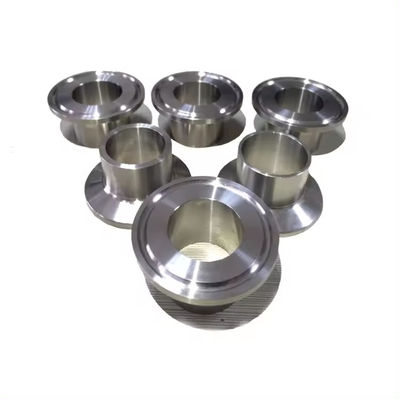

Pipeline System Stub End Fittings Featuring Thickness Sch5S-Sch160 and Butt Weld Connection for Precise Piping Alignment

Product Description:

Stub End Fittings are essential components widely used in piping systems to facilitate smooth and reliable connections between pipes and flanges. These fittings are specifically designed in an equal shape, ensuring uniformity and compatibility across various piping setups. The equal shape of these stub end fittings guarantees a balanced and symmetrical fit, which is crucial for maintaining the integrity and efficiency of the piping network.

One of the standout features of these Stub End Fittings is their robust construction, available in a thickness range from Sch5S to Sch160. This extensive thickness range allows these fittings to be used in a wide variety of applications, from light-duty to heavy-duty industrial environments. Whether you require a thinner wall for low-pressure systems or a thicker wall for high-pressure applications, these stub end fittings provide the necessary strength and durability.

Size is a critical factor in piping components, and these stub end fittings come in a standard 2 Inch size. This size is one of the most commonly used dimensions in piping systems, making these fittings versatile and suitable for numerous industrial and commercial projects. The 2 Inch size ensures compatibility with a wide range of pipes and flanges, simplifying the installation process and enhancing the overall efficiency of the piping system.

Surface treatment plays a vital role in the longevity and performance of piping fittings, and these stub end fittings are galvanized to provide excellent corrosion resistance. The galvanized surface treatment protects the fittings from rust, oxidation, and other environmental factors that could degrade the material over time. This makes these stub end fittings ideal for use in harsh environments, including outdoor installations and systems exposed to moisture or chemicals.

Stub End Couplings are a common term used interchangeably with stub end fittings, and they serve a similar purpose in piping systems. Stub End Couplings are designed to work seamlessly with lap joint flanges, allowing for easy assembly and disassembly of piping sections. This feature is particularly beneficial in systems that require frequent maintenance or inspection, as it reduces downtime and labor costs. The use of Stub End Couplings enhances the flexibility and functionality of the piping system.

In addition to their practical benefits, these stub end fittings also contribute to the overall safety of the piping network. Their precise manufacturing and adherence to industry standards ensure that they can withstand high pressures and temperatures without failure. This reliability is crucial in preventing leaks, bursts, and other hazardous situations that could compromise the safety of personnel and equipment.

Another advantage of these stub end fittings is their ease of installation. The galvanized surface ensures smooth handling and reduces the risk of damage during transportation and assembly. Moreover, the equal shape design simplifies alignment with flanges and pipes, minimizing installation errors and ensuring a secure fit. This user-friendly aspect makes these fittings a preferred choice among engineers and technicians.

Stub End Couplings are also known for their cost-effectiveness. By facilitating the use of lap joint flanges, they allow for the reuse of flanges in piping systems, reducing the need for purchasing new components with every maintenance cycle. This not only lowers the overall cost of the piping system but also contributes to sustainable practices by minimizing material waste.

In summary, these 2 Inch equal shape Stub End Fittings with thickness ranging from Sch5S to Sch160 and galvanized surface treatment offer a reliable, durable, and efficient solution for various piping applications. Their compatibility with lap joint flanges through Stub End Couplings makes them an indispensable component in industries such as oil and gas, chemical processing, water treatment, and more. Whether you are looking to install a new piping system or maintain an existing one, these stub end fittings provide the strength, corrosion resistance, and ease of use that ensure long-term performance and safety.

Features:

• Product Name: Stub End Fittings
• Thickness Range: Sch5S to Sch160
• Surface Treatment: Galvanized for enhanced corrosion resistance
• Size: 2 Inch
• Manufacturing Technics: Forged for superior strength and durability
• Connection Type: Butt Weld for secure and leak-proof joints
• Ideal for use with Stub End Couplings to ensure reliable pipe connections
• Compatible with various Stub End Couplings for versatile applications
• High-quality Stub End Couplings that meet industry standards

Technical Parameters:

Applications:

TOBO Stub End Fittings, originating from China and certified by ASTM, are essential components widely used in various industrial piping systems. Designed for butt weld connections, these Stub End Couplings are manufactured with precision to ensure reliable and secure joining of pipes. With an equal shape and available in a 2-inch size, these fittings accommodate a thickness range from Sch5S to Sch160, making them versatile for numerous applications.

Stub End Couplings by TOBO are ideal for use in industries such as oil and gas, petrochemical, water treatment, and power generation. Their robust construction and compliance with ASTM standards guarantee durability and safety in high-pressure and high-temperature environments. These fittings simplify the installation and maintenance of pipeline systems, allowing for easy dismantling and reassembly without compromising the integrity of the pipeline.

The practical application of TOBO Stub End Couplings extends to scenarios where pipeline systems require frequent inspection, cleaning, or replacement. Their design facilitates flange connections that can be easily disconnected, which is particularly useful in refineries, chemical plants, and industrial manufacturing facilities. The ability to handle various pipe thicknesses from Sch5S to Sch160 ensures compatibility with a broad range of piping schedules and materials.

TOBO offers these Stub End Fittings with a minimum order quantity of just 1 piece, making them accessible for both small-scale projects and large industrial operations. The price is negotiable, providing flexibility based on order volume and customer requirements. Standard shipping packaging ensures safe delivery within 15-21 working days. Payment options include L/C, T/T, and Western Union, catering to diverse customer preferences. With a supply ability of 100 tons per month, TOBO guarantees consistent availability to meet market demands.

In summary, TOBO Stub End Couplings are indispensable in scenarios requiring reliable butt weld connections and easy flange assembly. Their ASTM certification, wide size and thickness range, and excellent supply capacity make them a preferred choice for engineers and procurement specialists aiming for quality and efficiency in pipeline installations and maintenance.

Support and Services:

Our Stub End Fittings are designed to provide reliable and efficient connections in piping systems. For technical support, please ensure you have the product specifications and installation details ready when seeking assistance. Our support team can help with product selection, installation guidance, and troubleshooting to ensure optimal performance of your stub end fittings.

We offer comprehensive services including product inspection, custom fabrication, and maintenance advice to extend the life of your fittings. Additionally, we provide detailed documentation and manuals to assist with proper handling and installation procedures.

For any service requests or technical inquiries, please refer to our online resources or authorized service centers. We are committed to providing timely and effective support to meet your project requirements.

FAQ:

Q1: What is the brand and model number of these stub end fittings?

A1: The stub end fittings are manufactured by the brand TOBO, and the model number is Stub End Fittings.

Q2: Where are the stub end fittings produced?

A2: These stub end fittings are made in China.

Q3: What certifications do the stub end fittings have?

A3: The stub end fittings are certified according to ASTM standards.

Q4: What is the minimum order quantity and pricing for the stub end fittings?

A4: The minimum order quantity is 1 piece, and the price is negotiable depending on the order quantity and specifications.

Q5: What are the payment terms and delivery time for the stub end fittings?

A5: Payment can be made via L/C, T/T, or Western Union. The typical delivery time is between 15 to 21 working days.
