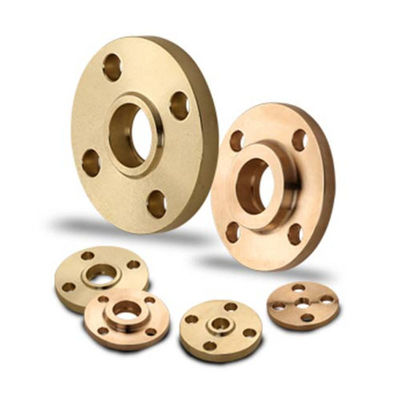

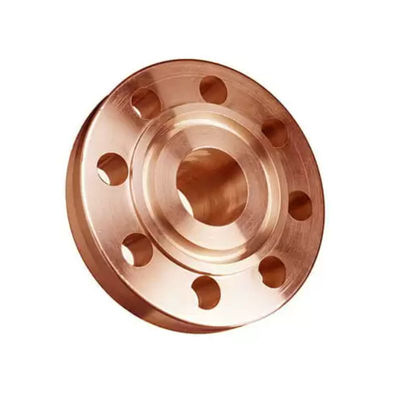

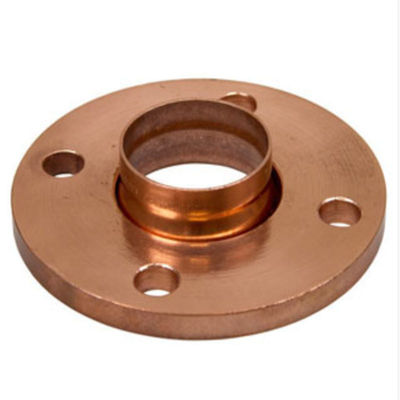

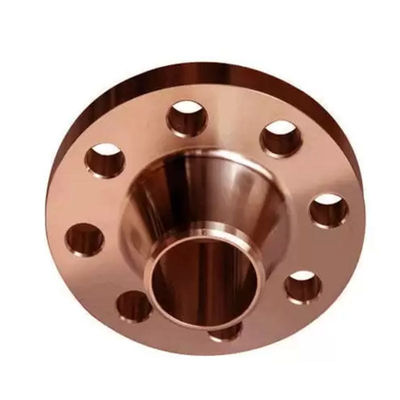

ASME B16.5 CuNi 70/30 Copper Nickel Socket Weld Flange Class 150 Forged Marine Grade
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Flange |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Material | CuNi 70/30 Copper Nickel Alloy (UNS C71500) | Standard | ASME B16.5 Class 150 |
|---|---|---|---|
| Process | Forged | Connection Type | Socket Welding (SW) |
| Face Type | Raised Face (RF) / Flat Face (FF) / RTJ | Size Range | 1/2" - 24" (DN15 - DN600) |
| Application | Marine & Offshore / Oil & Gas / Desalination | Surface Finish | Mill Finish / Anti-rust Oil |
Product Description
ASME B16.5 CuNi 70/30 Copper Nickel Socket Weld Flange Class 150 Forged Marine Grade
1. Product Description:The ASME B16.5 CuNi 70/30 Forged Socket Welding Flange is a premium piping component manufactured from copper-nickel 70/30 alloy (UNS C71500). This flange features a socket bore design where the pipe end is inserted and fillet welded both inside and outside, creating a strong, permanent, and leak-proof joint. Fully compliant with ASME B16.5 Class 150 standards and manufactured through advanced forging processes, it delivers superior strength, dimensional accuracy, and reliability in demanding marine and industrial environments.
2. Key Specifications:
| Parameter | Specification |
|---|---|
| Material Grade | CuNi 70/30 (UNS C71500) |
| Standard | ASME B16.5 Class 150 |
| Flange Type | Socket Welding / Forged |
| Size Range | 1/2" - 24" (DN15 - DN600) |
| Face Type | RF / FF / RTJ |
| Tensile Strength | ≥380 MPa (55 ksi) |
| Density | 8.94 g/cm³ |
| Working Temp | Up to 204°C (400°F) |
3. Applications:This flange is widely used in marine & offshore engineering, seawater cooling systems, shipbuilding, oil & gas platforms, desalination plants, power generation, and petrochemical industries. Its excellent resistance to seawater corrosion and biofouling makes it the preferred choice for critical fluid handling systems.
4-5. Product Advantages & Functions:
Advantages: Superior seawater corrosion resistance, anti-biofouling, high strength-to-weight ratio, excellent weldability, and long service life with minimal maintenance. Forged construction ensures superior grain structure and mechanical properties.
Functions: Securely connects pipes, valves, pumps and equipment; provides pressure containment; enables easy system disassembly for inspection and maintenance.
6. Instructions & Precautions:
Installation: Clean socket and pipe end; insert pipe to socket shoulder; apply fillet welding using ERCuNi filler; use compatible gaskets; torque bolts evenly in cross-pattern sequence; conduct pressure test before service.
Precautions: Ensure material compatibility to avoid galvanic corrosion; control welding temperature; store in dry environment; handle carefully to protect sealing surfaces.
7-11. Shipping / Payment / Packaging / After-Sales
| Item | Details |
|---|---|
| Shipping | 15-30 working days; by sea/air/courier; full documents provided |
| Payment | T/T 30% deposit + 70% balance; L/C at sight; Western Union |
| Packaging | Wooden cases / plywood boxes / pallets; anti-rust protection |
| After-Sales | 12-month warranty; free replacement for defects; 24h technical support |
FQA
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ?
is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
