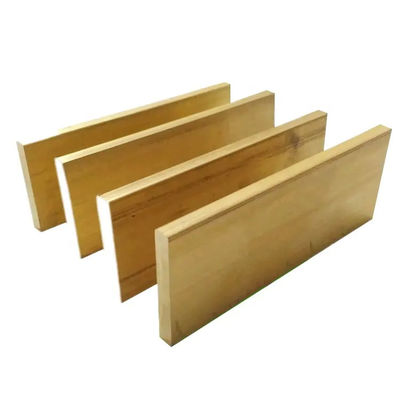

Corrosion Resistant Cupro Nickel 70/30 Plate C71500 CuNi Sheet ASME SB171 Heat Exchanger
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Plate |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | Corrosion Resistant Cupro Nickel 70/30 Plate C71500 CuNi Sheet ASME SB171 Heat Exchanger | Elongation | ≥30% |
|---|---|---|---|
| Color | Copper Color | Technics | Forged |
| Payment Term | T/T, L/C, Western Union | Processing | Cutting, Bending, Welding, Punching |
| Tensilestrength | 350 - 550 MPa | Key Word | Copper Sheet Plates |
| Materialcomposition | Copper-Nickel Alloy | Alloy Or Not | Is Alloy |
| Boiling Point | 2562℃ | Hardness | HV90-HV120 |
| Length | 1000mm - 6000mm | Corrosionresistance | High |
| Price Term | CIF CFR FOB Ex-Work | Corrosion Resistance | Excellent |
| Highlight | Cupro Nickel 70/30 plate C71500,Corrosion resistant CuNi sheet,Heat exchanger Cupro Nickel plate |
||
Product Description
Corrosion Resistant Cupro Nickel 70/30 Plate C71500 CuNi Sheet ASME SB171 Heat Exchanger
1. Product Description
Copper Nickel Plate is a low‑alloy copper‑nickel plate containing 10% or 30% nickel with controlled iron and manganese additions, specifically developed for high‑velocity seawater and marine atmospheric service. The alloy exhibits exceptional resistance to uniform corrosion, impingement attack, and crevice corrosion in chloride‑bearing environments. Principal designations are CuNi90/10 (UNS C70600) and CuNi70/30 (UNS C71500), along with Chinese grades BFe10‑1‑1 and BFe30‑1‑1. Plates are produced via hot rolling (HR) for thicknesses ≥5 mm, and cold rolling (CR) for thicknesses 0.4–4 mm. Delivery conditions include annealed (soft), 1/4 hard, 1/2 hard, and full hard. Surface finishes offered: HR pickled (ASTM #1), CR bright (ASTM #2B), polished (mirror or satin), and chequered (diamond, teardrop, or lentil). All products meet ASTM B171, ASME SB171, or GB/T 15272.
2. Product Applications
-
Ballast water exchange systems (sequential method): Flow distribution plates, venturi injector mounting plates.
-
Marine growth prevention systems (MGPS): Electrode plates for copper‑aluminum anodes, control panel enclosures.
-
Subsea cable protection: Bend stiffener connector plates, cable gland backing plates.
-
Shipboard LNG fuel systems: Seawater vaporizer plates for LNG warming, leak detection tray liners.
-
Tidal barrage gates: Gate wheel contact plates, seal support plates, trash rack bars.
-
Coastal defense radar towers: Cladding plates for corrosion protection in splash zone.
3.Product Advantages
-
Outstanding resistance to flow‑induced corrosion (FIC) in turbulent seawater – Proven in long‑term pipe loop tests.
-
Excellent resistance to ammonia and ammonium salt attack – Suitable for urea and fertilizer plant cooling systems.
-
High tensile strength retention at elevated temperatures – Retains 80% of room temperature tensile at 260°C.
-
Good impact toughness down to −269°C (liquid helium) – No ductile‑to‑brittle transition.
-
Easily sheared and punched without edge cracking – Cold workable even in half‑hard condition.
-
Readily available with NACE MR0175/ISO 15156 compliance – For sour service applications (limited H₂S).
-
Cost‑competitive with 6% molybdenum stainless steels – Lower raw material cost in many markets.
4. Key Product Parameters
| Parameter | Value / Range |
| Grades Supplied | UNS C70600 (90/10), UNS C71500 (70/30), BFe10-1-1, BFe30-1-1, plus OEM custom chemistries |
| Thickness (HR) | 5 mm – 70 mm (tolerance per ASTM B171: ±7.5% or ±0.25 mm, larger applies) |
| Thickness (CR) | 0.4 mm – 3.0 mm (tolerance: ±0.02 mm for ≤1 mm, ±0.05 mm for >1 mm) |
| Width (CR standard) | 610 mm, 1000 mm, 1219 mm (4 ft), 1250 mm, 1500 mm, 2000 mm (max) |
| Length (CR standard) | 1000 mm, 2000 mm, 2438 mm (8 ft), 3000 mm, 4000 mm, 5000 mm |
| Modulus of Rigidity (G) | C70600: 50 GPa; C71500: 52 GPa |
| Poisson‘s Ratio | 0.34 (both alloys) |
| Maximum Design Temperature (pressure vessels) | 260°C (ASME Boiler and Pressure Vessel Code, Section VIII) |
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
