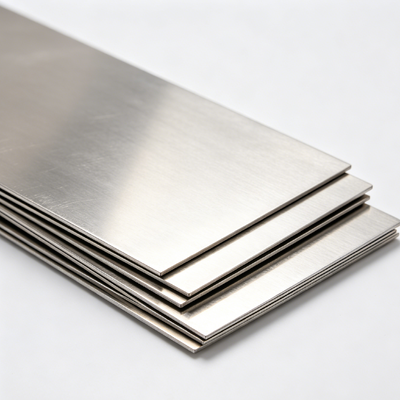

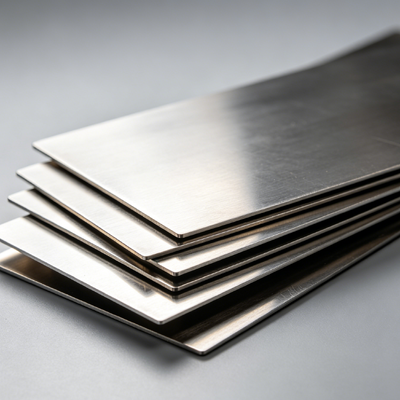

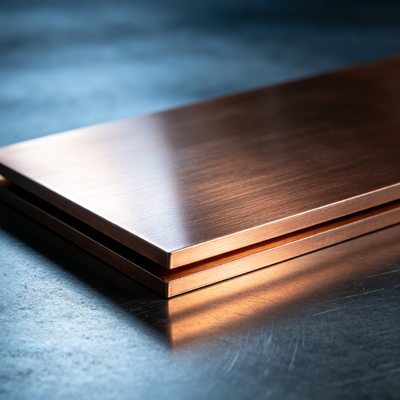

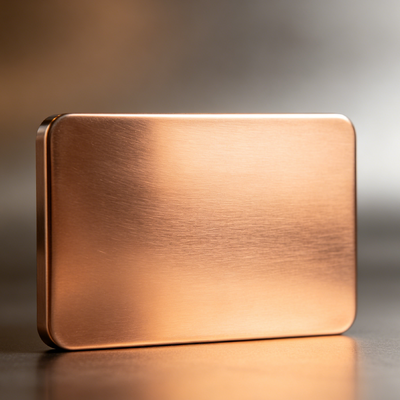

Cold Rolled CuNi 70/30 Plate C71500 ASTM B171 Copper Nickel Alloy Sheet for Condenser
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Plate |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | Cold Rolled CuNi 70/30 Plate C71500 ASTM B171 Copper Nickel Alloy Sheet For Condenser | Surface Finish | Polished |
|---|---|---|---|
| Packing | Standard Seaworthy Package | Standard | ASTM B122, DIN 17664, EN 1652 |
| Elongation | 20 - 40% | Technics | Forged |
| Hardness | ≤HB150 | Standards | ASTM B122, ASTM B161 |
| Widthrange | 100mm - 1500mm | Payment Term | T/T, L/C, Western Union |
| Corrosion Resistance | Excellent | Yield Strength | ≥170Mpa |
| Processing Service | Welding, Punching | Nickelcontent | 10% - 30% |
| Melting Point | 1083℃ | Thickness | 0.5mm - 10mm |
| Highlight | Cold Rolled CuNi 70/30 Plate,C71500 Copper Nickel Alloy Sheet,ASTM B171 Condenser Plate |
||
Product Description
Cold Rolled CuNi 70/30 Plate C71500 ASTM B171 Copper Nickel Alloy Sheet for Condenser
1. Product Description
Copper Nickel Plate is a copper‑nickel‑iron‑manganese alloy plate engineered for long‑term service in seawater, brine, and industrial cooling water systems. The alloy provides excellent resistance to general corrosion, erosion‑corrosion, and crevice attack. Key grades are CuNi90/10 (UNS C70600) and CuNi70/30 (UNS C71500), with Chinese equivalents BFe10‑1‑1 and BFe30‑1‑1. Production processes include hot rolling (HR) for plates thicker than 4 mm and cold rolling (CR) for plates down to 0.4 mm. Heat treatment (solution annealing) is applied to achieve optimal corrosion resistance and ductility. Surface conditions include hot rolled and pickled, cold rolled bright (2B), polished to various grits, and chequered patterns (diamond, lentil, or teardrop). All products are certified to ASTM B171, ASME SB171, EN 1652, or GB/T 15272.
.
2. Product Applications
-
Steam surface condensers (power plants): Tube support plates (baffles), waterbox linings, impingement protection plates.
-
FPSO topside modules: Seawater injection filter housings, chemical injection skid plates, deck drain sump covers.
-
Marine diesel engines: Freshwater cooler plates for jacket water cooling, seawater charge air cooler plates.
-
Subsea production systems: Jumper support plates, subsea distribution unit baseplates, ROV interface plates.
-
Coastal sewage treatment: Outfall diffuser plates, screening tank baffles, aeration tank covers.
-
Specialty chemical storage: Tank bottom plates for dilute acetic acid and phosphoric acid service.
3.Product Advantages
-
Superior resistance to impingement attack in turbulent flow – Verified by jet‑impingement tests (ASTM G78).
-
Excellent resistance to sulphide stress corrosion cracking (SSCC) – Suitable for environments with up to 50 ppm H₂S.
-
Good resistance to galling and seizing – Used for threaded connections and sliding contact surfaces.
-
Readily bendable with simple tooling – Air bend or bottom bend without requiring special die materials.
-
High electrical resistivity compared to pure copper – Useful for applications requiring moderate resistance (e.g., resistor plates).
-
Non‑sparking and non‑magnetic – Safe for hazardous areas and mine countermeasure vessels.
-
Global supply chain with short lead times – Stocking locations in Asia, Europe, and North America.
4. Key Product Parameters
| Parameter | Value / Range |
| Alloy Composition | C70600 (Cu 88% min, Ni 9–11%, Fe 1.0–1.8%, Mn ≤1.0%); C71500 (Cu 65% min, Ni 29–33%, Fe 0.4–1.0%, Mn ≤1.0%) |
| Thickness Capability (HR) | 4.0 mm – 80.0 mm (flatness ≤ 4 mm/m per ASTM B171) |
| Thickness Capability (CR) | 0.4 mm – 3.5 mm (tolerance ±0.02 to ±0.08 mm) |
| Width Options (CR) | 600 mm, 800 mm, 1000 mm, 1219 mm, 1250 mm, 1500 mm (other widths by slitting) |
| Length Options (CR) | 1000 mm, 2000 mm, 2438 mm, 3000 mm, 4000 mm, 6000 mm |
| Mechanical (C70600 annealed) | Yield (Rp0.2) ≥ 105 MPa; Tensile (Rm) 300 420 MPa; Elongation ≥ 30% |
| Mechanical (C71500 annealed) | Yield (Rp0.2) ≥ 150 MPa; Tensile (Rm) 370 480 MPa; Elongation ≥ 25% |
| Chequered Plate Pattern | Diamond raised pattern (standard), lentil or teardrop (on request); base thickness +1.0–1.5 mm pattern height |
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
