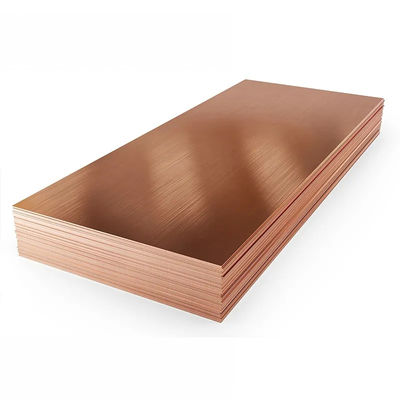

Hot Rolled Copper Nickel 70/30 Alloy Plate CuNi Sheet ASTM B171 C71500 C70600
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Plate |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | Hot Rolled Copper Nickel 70/30 Alloy Plate CuNi Sheet ASTM B171 C71500 C70600 | Thermal Conductivity | 22-25 W/mK |
|---|---|---|---|
| Thickness | 0.5mm - 10mm | Application | Industrial |
| Applications | Marine Engineering, Heat Exchangers, Desalination Plants | Coppercontent | 70% - 90% |
| Electricalconductivity | 20% IACS | Shape | Plate |
| Standard | ASTM, AISI, JIS, DIN, EN | Package | Standard Export Seaworthy Package |
| Wall Thickness | Customized | Surfacefinish | Mill Finish / Polished |
| Melting Point | 1170°C | Yield Strength | ≥170Mpa |
| Density | 8.9 G/cm³ | Type | Coil |
| Highlight | Hot Rolled Copper Nickel 70/30 Alloy Plate,CuNi Sheet ASTM B171,C71500 C70600 Copper Nickel Plate |
||
Product Description
Hot Rolled Copper Nickel 70/30 Alloy Plate CuNi Sheet ASTM B171 C71500 C70600
1. Product Description
Copper Nickel Plate is a copper‑based alloy plate containing nickel as the main alloying element, typically 10% or 30%, with iron and manganese added to improve mechanical properties and corrosion resistance. Standard grades include C70600 (90/10 CuNi), C71500 (70/30 CuNi), and Chinese grade BFe10-1-1. These plates are widely recognized for their exceptional resistance to seawater corrosion, impingement attack, and biofouling. They are produced by either hot rolling or cold rolling processes, and can be supplied in multiple tempers (annealed, quarter‑hard, half‑hard, full‑hard) and surface finishes (2B, polished, satin, mirror, diamond chequered).
2. Product Applications
-
Marine engineering: Seawater cooling systems, fire main lines, bilge and ballast lines, shipboard condensers and heat exchangers.
-
Offshore platforms: Risers, splash zone cladding, seawater intake pipes, pump components.
-
Power plants: Main condensers, low‑pressure feedwater heaters, auxiliary cooling water systems.
-
Desalination: Evaporator tubes and plates for multi‑stage flash (MSF) and reverse osmosis pretreatment.
-
Industrial: Chemical tankers, pressure vessels for dilute acids, brewery and distillery equipment.
3.Product Advantages
-
Superior resistance to seawater corrosion and galvanic attack – Excellent performance when coupled with noble metals if properly insulated.
-
Natural resistance to marine fouling – Reduces the need for chemical cleaning and mechanical scraping.
-
Moderate thermal conductivity – Balances heat transfer efficiency with resistance to scaling.
-
Easy to weld and braze – No preheating required for thin sections; weldments retain corrosion resistance.
-
High ductility – Allows cold forming, bending, and flanging without cracking.
-
Long service life – Typical lifespan of 20–30 years in seawater applications.
-
100% recyclable – Supports sustainable engineering practices.
4. Key Product Parameters
| Parameter | Value / Range |
| Applicable Grades | UNS C70600 (90/10), UNS C71500 (70/30), BFe10-1-1 |
| Thickness | 0.8 mm – 80 mm (thinner or thicker upon request) |
| Width | 200 mm – 3,000 mm |
| Length | 1,000 mm – 6,000 mm (custom lengths available) |
| Temper Options | Soft (annealed), 1/4H, 1/2H, H (full hard) |
| Surface Finish | 2B (cold rolled bright), polished #300/#600, brushed, mirror, chequered |
| Density | 8.94 g/cm³ (nominal for both grades) |
| Yield Strength (0.2% offset) | C70600: min 105 MPa; C71500: min 150 MPa (annealed) |
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
