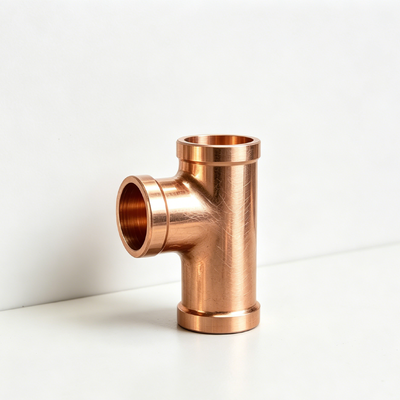

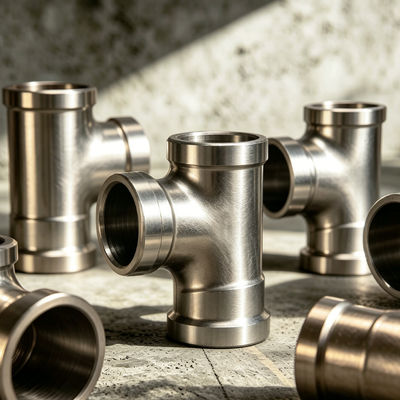

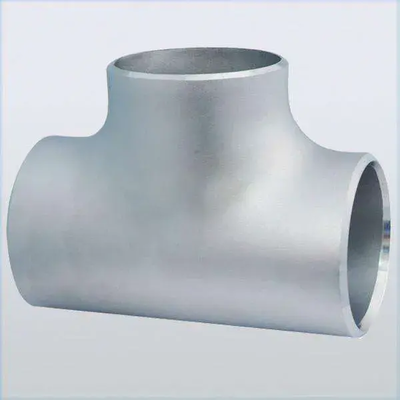

C70600 CuNi 90/10 Equal Tee ASME B16.9 Butt Weld SCH10 for Heat Exchanger

  • C70600 CuNi 90/10 Equal Tee ASME B16.9 Butt Weld SCH10 for Heat Exchanger
  • C70600 CuNi 90/10 Equal Tee ASME B16.9 Butt Weld SCH10 for Heat Exchanger
  • C70600 CuNi 90/10 Equal Tee ASME B16.9 Butt Weld SCH10 for Heat Exchanger
  • C70600 CuNi 90/10 Equal Tee ASME B16.9 Butt Weld SCH10 for Heat Exchanger
  • C70600 CuNi 90/10 Equal Tee ASME B16.9 Butt Weld SCH10 for Heat Exchanger
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Copper Nickel Equal Tee
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10Ton/Month
Product Details
Product Name C70600 CuNi 90/10 Equal Tee ASME B16.9 Butt Weld SCH10 For Heat Exchanger Origin Shanghai
Surface Finish Smooth, Pickled, Or As Per Customer Requirement Surface Treatment Polished
Material Copper Nickel Alloy (CuNi) Product Cooper Nickel Tee Equal Tee
Pressurerating Class 150 To Class 300 Design Standard ASME B16.22
Connection Type Butt Weld / Socket Weld / Threaded Composition Typically 90% Copper, 10% Nickel Or 70% Copper, 30% Nickel
Pressure Rating Class 150 To Class 600 (varies) Mode Of Connection Welding
Standard ANSI, ASTM, DIN, JIS Manufacturing Process Seamless Or Welded
Package Wooden Case Head Round
Highlight

CuNi 90/10 equal tee butt weld

,

Copper nickel equal tee SCH10

,

ASME B16.9 heat exchanger tee
Leave a Message
Product Description

C70600 CuNi 90/10 Equal Tee ASME B16.9 Butt Weld SCH10 for Heat Exchanger

1. Product Description

The Copper Nickel Equal Tee is a three-way fitting with equal bores, designed specifically for perpendicular equal-diameter branch connections in piping systems. Manufactured from copper-nickel alloy (Cu-Ni 90/10 or 70/30) by seamless cold drawing or hot extrusion. Compliant with ASTM B466, ASME B16.9, and BS 2871, it offers excellent resistance to seawater corrosion, erosion, and biofouling, making it a key component in shipbuilding, offshore, and chemical piping systems.

2. Product Applications

  • Ship systems:Main engine cooling water, ballast water fill/discharge, fire hydrant supply, deck washing lines

  • Offshore platforms:Seawater lift pipes, platform cooling water ring mains, emergency firewater systems

  • Desalination:Flash chamber brine circulation, RO feed distribution, concentrate outfall

  • Chemical plants:Electroplating wastewater transmission, saline organic waste liquid lines, cooling tower makeup water

  • Nuclear power plants:Component cooling water (essential service water) inlet/outlet branches

  • Others:Coastal scenic area water supply, marine ranch water exchange lines, ship shore power cooling systems

3.Installation & Precautions

  • Unpacking inspection:Check for transit damage; verify markings are clear and complete.

  • Surface preparation:Clean bevel and 30mm of inner/outer wall area with stainless steel wire brush before welding; remove all oil and paint.

  • Butt welding:Maximum permissible misalignment during fit-up is 10% of wall thickness, not exceeding 1.5mm. Use low current and fast welding to avoid overheating.

  • Socket weld:Insert pipe fully to socket bottom then pull back approx. 2mm to avoid stress concentration at root.

  • Threaded connection:Wrap PTFE tape 2-3 turns; hand-tighten then wrench-tighten no more than 1.5 turns.

  • Pressure test requirement:Hydrotest pressure = 1.5× design pressure; ambient temperature should not be <5℃ during test.

  • Prohibitions:

    • Do not contact with low-melting-point metals such as zinc, cadmium, or lead.

    • Not for strong oxidizing acids (e.g., fuming nitric acid).

    • Do not force alignment during installation to avoid additional stress.

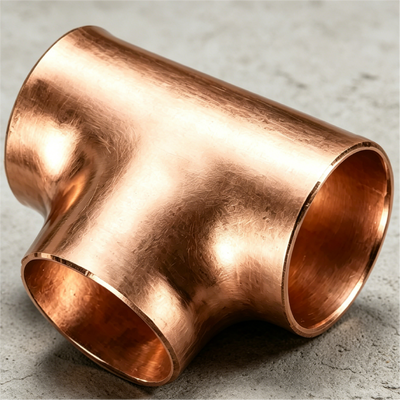

C70600 CuNi 90/10 Equal Tee ASME B16.9 Butt Weld SCH10 for Heat Exchanger 0

4. Key Technical Parameters

Parameter Value
Material Grade Cu-Ni 90/10 (C70600), Cu-Ni 70/30 (C71500)
Nominal Size 1/2″ – 42″ (DN15 – DN1050)
Schedule Sch5, Sch10, Sch20, Sch30, Sch40, Sch60, Sch80, Sch100, Sch120, Sch140, Sch160
Applicable Standards ASTM B122/B466/B467; ASME B16.9; BS 2871 Part 3; JIS H3300
Connection Type Butt Weld (BW) / Socket Weld (SW) / Threaded (Rc/NPT)
Pressure Range Class 150# / 300# / 600# / 900#
Operating Temp. -20℃ ~ 300℃
Tensile Strength (C70600) 310 MPa (min.)
Hardness (C70600) 75 HRB (typical)
Resistivity 0.5 μΩ·m



FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
