ASTM B466 Copper Nickel Equal Tee C71500 Seamless Socket Weld 150LB for Ship
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Equal Tee |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | ASTM B466 Copper Nickel Equal Tee C71500 Seamless Socket Weld 150LB For Ship | Worksday | 15-30days |
|---|---|---|---|
| Thickness | Standard | Temperature Range | -20°C To 150°C |
| Shape | Equal Tee | Technology | Casting |
| Logo | Customized | Technics | Casting |
| Pressure | High Pressure | Type | Equal Tee |
| Connection | Threaded | Product Type | Reducing Tee |
| Sizerange | 1/2 Inch To 48 Inches | Temperature | High Temperature |
| Surface Treatment | Polished | Connectiontype | Butt Weld |
| Highlight | ASTM B466 Copper Nickel Equal Tee,C71500 seamless socket weld tee,150LB copper nickel ship tee |
||
Product Description

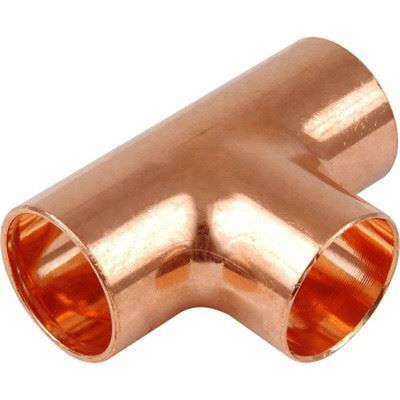

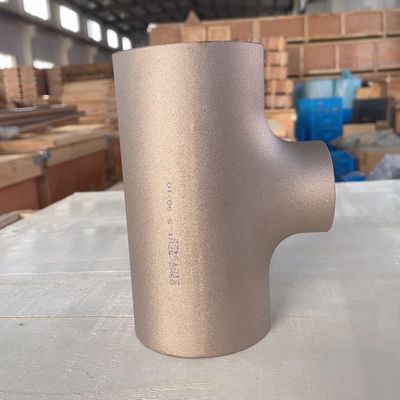

ASTM B466 Copper Nickel Equal Tee C71500 Seamless Socket Weld 150LB for Ship
1. Product Description
The Copper Nickel Equal Tee is a branch fitting with all three ports having identical inside diameters, manufactured from Cu-Ni 90/10 or Cu-Ni 70/30 alloy by seamless drawing or welded forming. Strictly conforming to ASTM B466, ASME B16.9, and MSS SP-43, it offers exceptional seawater corrosion resistance and anti-fouling properties, widely used in offshore engineering, marine piping, and chemical pipeline systems.
2. Product Applications
-
Ocean-going vessels:Main/auxiliary engine seawater cooling, ballast water systems, fire main lines, sewage treatment unit piping
-
Floating offshore facilities:Semi-submersible platform seawater risers, FPSO process cooling water manifolds, deep-sea production equipment cooling branch lines
-
Seawater utilization:Once-through seawater cooling in power plants, essential service water in coastal nuclear plants, seawater flushing pipelines
-
Chemical sector:Evaporator brine circulation, chloride solution transmission, fertilizer plant saline wastewater lines
-
Shipbuilding & repair:Dock seawater lines, ballast water treatment system retrofits
-
Others:Marine research facilities, subsea observatory cooling systems, seawater aquaculture farm piping
3.Installation & Precautions
-
Unpacking & storage:Inspect for dents or deformation after unpacking; store on raised platforms to avoid moisture; do not store with sulfides or acids.
-
End cleaning:Wipe ends with clean cloth dipped in industrial alcohol to remove rust preventive oil and dust before welding or connection.
-

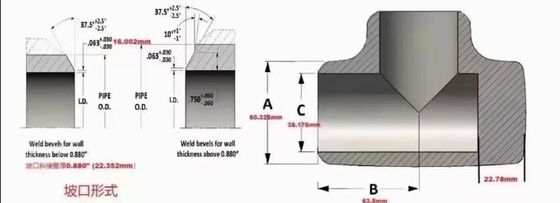

Butt weld key points:Bevel angle ≤35°; align inner walls flush during fit-up. Use low current, fast welding; remove slag after each pass.
-
Socket weld:Gap between pipe and socket not too large; at least two passes around circumference; ensure uniform fillet height.
-
Threaded connection:Use PTFE tape or thread sealant; keep concentric during tightening to avoid thread damage.
-
System pressure test:Use fresh water for hydrotest; pressurize slowly to 1.5× working pressure; hold for 30 minutes.
-
Prohibitions:
-
Do not use for strong oxidizing acids (e.g., conc. nitric acid) or media with high ammonia content.
-
Do not strike the fitting directly with a steel hammer during installation.
-
Provide adequate pipe supports to prevent excessive bending loads on the tee.
-
4. Key Technical Parameters
| Parameter | Value |
| Material Grade | UNS C70600 (90/10), UNS C71500 (70/30) |
| Nominal Bore | 1/2″ – 36″ (DN15 – DN900) |
| Schedule | Sch5, Sch10, Sch20, Sch40, Sch80, Sch120, Sch160 |
| Product Standards | ASTM B466/B467; ASME B16.9; MSS SP-43; DIN 86086 |
| Connection Type | Butt Weld (BW) / Socket Weld (SW) / Threaded (Rc/NPT) |
| Pressure Rating | PN16, PN25, PN40; up to Class 900 |
| Operating Temp. | -20℃ ~ +280℃ |
| Density | 8.9 g/cm³ (C70600), 8.94 g/cm³ (C71500) |
| Resistivity | Approx. 0.4 μΩ·m |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
