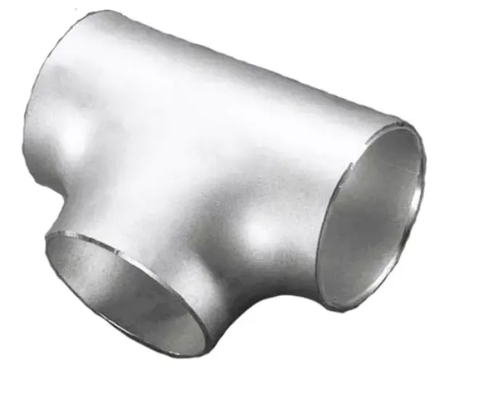

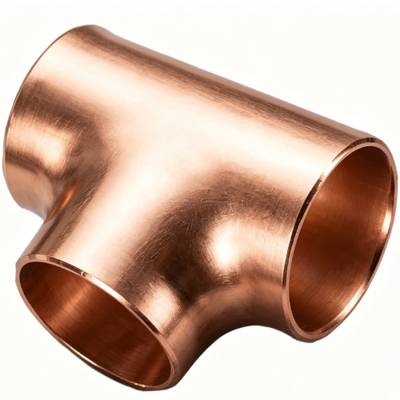

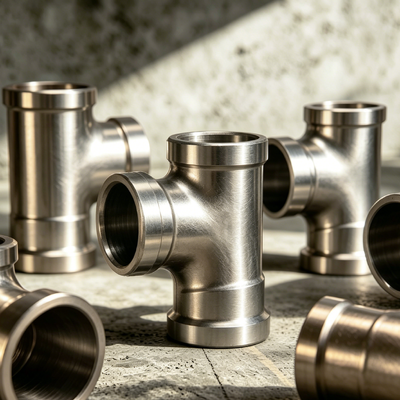

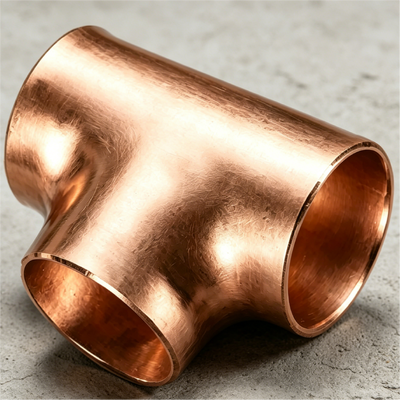

High Quality Cupro Nickel Equal Tee 70/30 Forged ASME B16.9 SCH80 2"-24"

  • High Quality Cupro Nickel Equal Tee 70/30 Forged ASME B16.9 SCH80 2"-24"
  • High Quality Cupro Nickel Equal Tee 70/30 Forged ASME B16.9 SCH80 2"-24"
  • High Quality Cupro Nickel Equal Tee 70/30 Forged ASME B16.9 SCH80 2"-24"
  • High Quality Cupro Nickel Equal Tee 70/30 Forged ASME B16.9 SCH80 2"-24"
  • High Quality Cupro Nickel Equal Tee 70/30 Forged ASME B16.9 SCH80 2"-24"
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Copper Nickel Equal Tee
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10Ton/Month
Product Details
Product Name High Quality Cupro Nickel Equal Tee 70/30 Forged ASME B16.9 SCH80 2"-24" Corrosion Resistance Yes
Composition Cu-Ni 90/10 Or Cu-Ni 70/30 Temperature Rating -20°C - 300°C
Design Standard ASME B16.22 Pressurerating Up To 3000 Psi
End Connection Butt Weld, Socket Weld, Threaded Surface Treatment Polished
Connection Type Threaded Temperature Range -20°C To 150°C
Technology Casting Surface Finish Smooth
Head Code Round Packing Wooden Case Or As Customer's Request
Coating Brass Package Wooden Case
Highlight

Cupro Nickel Equal Tee ASME B16.9

,

Copper Nickel Equal Tee SCH80

,

Forged Cupro Nickel Equal Tee 70/30
Leave a Message
Product Description

High Quality Cupro Nickel Equal Tee 70/30 Forged ASME B16.9 SCH80 2"-24"

1. Product Description

The Copper Nickel Equal Tee is a pipe fitting with three completely identical branch openings, used for perpendicular branch connections from main pipelines. Made of copper-nickel alloy (Cu-Ni 90/10 or 70/30), it is manufactured by integral hot extrusion or cold forming. Conforming to ASME B16.9 and ASTM B466/B467, it offers excellent seawater corrosion resistance and anti-biofouling properties, suitable for demanding piping systems in shipbuilding, offshore engineering, and chemical industries.

2. Product Applications

  • Naval vessels:Seawater cooling systems, ballast water treatment device inlets/outlets, firewater mains, sea-water intake lines

  • Offshore drilling platforms:Seawater lift pump outlet manifolds, platform firewater ring mains, cooling water distribution systems

  • Desalination:Brine circulation lines in low-temperature multi-effect distillation, RO feed and concentrate branch pipes

  • Petrochemical:Sour water, chlorine-containing media, seawater heat exchanger bypass lines

  • Power plant water treatment:Condenser circulating water inlet/outlet branch pipes, open cooling water systems

  • Coastal facilities:Port fire protection, aquarium water circulation, seawater source heat pump pipelines

3. Product Advantages

  1. Excellent seawater corrosion resistance – Corrosion rate <0.03mm/year in chloride media; outstanding resistance to localized corrosion.

  2. Effective biofouling inhibition – Naturally releases copper ions, preventing barnacles, oysters, and algae attachment; significantly reduces pipeline cleaning frequency.

  3. Good workability & weldability – Can be cold or hot bent; no hardening cracks during welding; suitable for field installation.

  4. Wide temperature range adaptability – Maintains good toughness at -40℃; no significant strength loss at 300℃.

  5. Corrosion fatigue resistance – High fatigue life under cyclic stress and corrosive media.

  6. Excellent cost-performance – In seawater service, total cost much lower than titanium and super austenitic stainless steel.

  7. Flexible delivery – Fast shipment for small quantities; price advantage for bulk orders; third-party inspection available.

High Quality Cupro Nickel Equal Tee 70/30 Forged ASME B16.9 SCH80 2"-24" 0

4. Key Technical Parameters

Parameter Specification
Material Grade C70600 (Cu-Ni 90/10), C71500 (Cu-Ni 70/30)
Nominal Size DN15 – DN1000 (1/2″ – 40″)
Schedule Sch5s, Sch10s, Sch20s, Sch40s, Sch80s, XS
Applicable Standards ASTM B122/B466/B467; ASME B16.9; DIN 86086; ISO 15590-2
Connection End Butt Weld (BW) / Socket Weld (SW) / Threaded (NPT/BSPT)
Pressure Rating Class 150 / 300 / 600 / 900
Operating Temp. -40℃ ~ +300℃
Hardness Range HRB 55 – 80
Coefficient of Thermal Expansion 17.0 × 10⁻⁶ /K (20-300℃)



FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
