C71500 Copper Nickel Equal Tee 70/30 Socket Weld ASME B16.11 Class 150

  • C71500 Copper Nickel Equal Tee 70/30 Socket Weld ASME B16.11 Class 150
  • C71500 Copper Nickel Equal Tee 70/30 Socket Weld ASME B16.11 Class 150
  • C71500 Copper Nickel Equal Tee 70/30 Socket Weld ASME B16.11 Class 150
  • C71500 Copper Nickel Equal Tee 70/30 Socket Weld ASME B16.11 Class 150
  • C71500 Copper Nickel Equal Tee 70/30 Socket Weld ASME B16.11 Class 150
Place of Origin Shanghai,China
Brand Name TOBO
Certification ISO/TUV/SGS
Model Number Copper Nickel Equal Tee
Minimum Order Quantity 1PC
Price Negotiable
Packaging Details Standard Shipping Package
Delivery Time 15-30 Workdays
Payment Terms T/T, Western Union
Supply Ability 10Ton/Month
Product Details
Product Name C71500 Copper Nickel Equal Tee 70/30 Socket Weld ASME B16.11 Class 150 Delivery According To Quantity
Sizerange 1/2 Inch To 24 Inches Standards ASTM B466, ASTM B466M, ASME B16.9
Weight Varies Depending On Size And Wall Thickness Head Code Round
Grade C70600 Coating Brass
Connection Butt Weld Temperature Range -200°C To +400°C
Surfacefinish Smooth, Pickled And Passivated Product Type Reducing Tee
Application Marine, Offshore, Chemical, Petrochemical Industries Corrosion Resistance High Resistance To Seawater Corrosion
Package Wooden Case Packing Wooden Case Or As Customer's Request
Highlight

C71500 Copper Nickel Equal Tee

,

70/30 Copper Nickel Socket Weld Tee

,

ASME B16.11 Class 150 Equal Tee
Leave a Message
Product Description

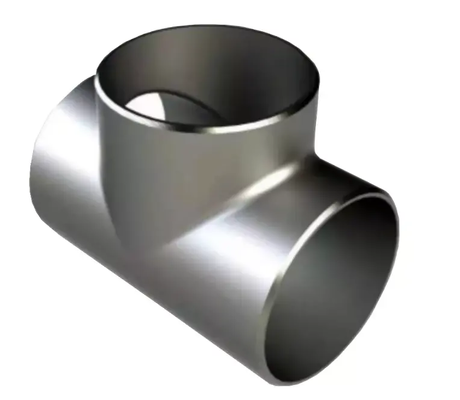

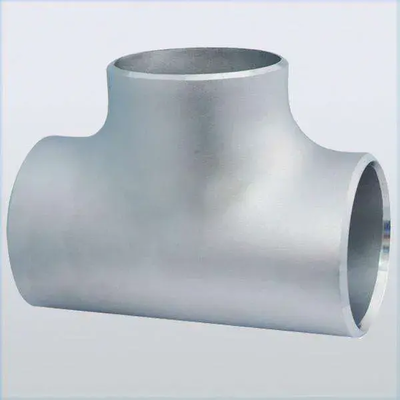

C71500 Copper Nickel Equal Tee 70/30 Socket Weld ASME B16.11 Class 150

1. Product Description

The Copper Nickel Equal Tee is a fitting for perpendicular branch connections from main pipelines, with all three ports of equal diameter. Manufactured from copper-nickel alloy (90/10 or 70/30) by seamless or welded processes, it complies with ASME B16.9 and ASTM B466. The product offers exceptional seawater corrosion resistance, making it an ideal choice for harsh marine environments.

2. Product Applications

  • Ship systems:Seawater cooling circuits, ballast water distribution, fire mains, bilge discharge

  • Offshore platforms:Seawater lift lines, process cooling distribution, emergency firewater loops

  • Desalination:Intake header piping, RO feed branches, concentrate discharge

  • Chemical industry:Saline wastewater, dilute acid solutions, organic solvent transmission

  • Power facilities:Component cooling water in nuclear plants, open-cycle circulating water in thermal plants

  • General engineering:Coastal building fire protection, shipyard/quay water supply, aquarium life support systems

3. Product Advantages

  1. Corrosion leadership – Stable passive film in chloride media; pitting resistance >3× that of 316L stainless steel.

  2. Anti-fouling – No extra coating or electrolytic devices needed; natural copper ion release inhibits marine growth.

  3. Weld without heat treatment – Welding at room temperature, no hydrogen-induced cracking risk; ready for service post-weld.

  4. Impact & fatigue resistant – Elongation ≥30%, high low-temperature impact energy, suitable for floating offshore facilities.

  5. Wide velocity range – Recommended 0.5~3.5 m/s for seawater, up to 4.5 m/s locally acceptable.

  6. Cost-effective – Much lower cost than titanium; lower maintenance cost than super duplex stainless steel.

  7. Fast supply – Common sizes in stock; custom sizes with minimum 25 days lead time.

C71500 Copper Nickel Equal Tee 70/30 Socket Weld ASME B16.11 Class 150 0

4. Key Technical Parameters

Parameter Value
Alloy Grade Cu-Ni 90/10 (C70600), Cu-Ni 70/30 (C71500)
Size Range 1/2" ~ 48" (DN15 ~ DN1200)
Schedule Sch5s, Sch10s, Sch40s, Sch80s, Sch160
Standards ASTM B122/B466/B467; ASME B16.9; MSS SP-43
Connection Butt Weld / Socket Weld / Threaded
Pressure Rating 150# ~ 600# (Max. 3000PSI)
Temperature -50℃ ~ +280℃
Typical Mechanical Tensile ≥275MPa, Yield ≥125MPa, Elongation ≥30%



FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.

2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.

4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
