Marine Grade Copper Nickel Equal Tee Forged C71500 Socket Weld Class 150
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Equal Tee |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | Marine Grade Copper Nickel Equal Tee Forged C71500 Socket Weld Class 150 | Size | DN20 |
|---|---|---|---|
| Delivery | According To Quantity | Pressure | High Pressure |
| Corrosion Resistance | Excellent | Origin | Shanghai |
| Temperature | High Temperature | Thickness | Standard |
| Design Standard | ASME B16.22 | Type | Equal Tee |
| Head Code | Round | Durability | High |
| Wallthickness | Schedule 40, Schedule 80 | Temperature Rating | -20°C - 300°C |
| Grade | C70600 | Wall Thickness | SCH10-SCH160 |
| Highlight | Marine Grade Copper Nickel Equal Tee,C71500 Socket Weld Tee,Class 150 Forged Equal Tee |
||
Product Description

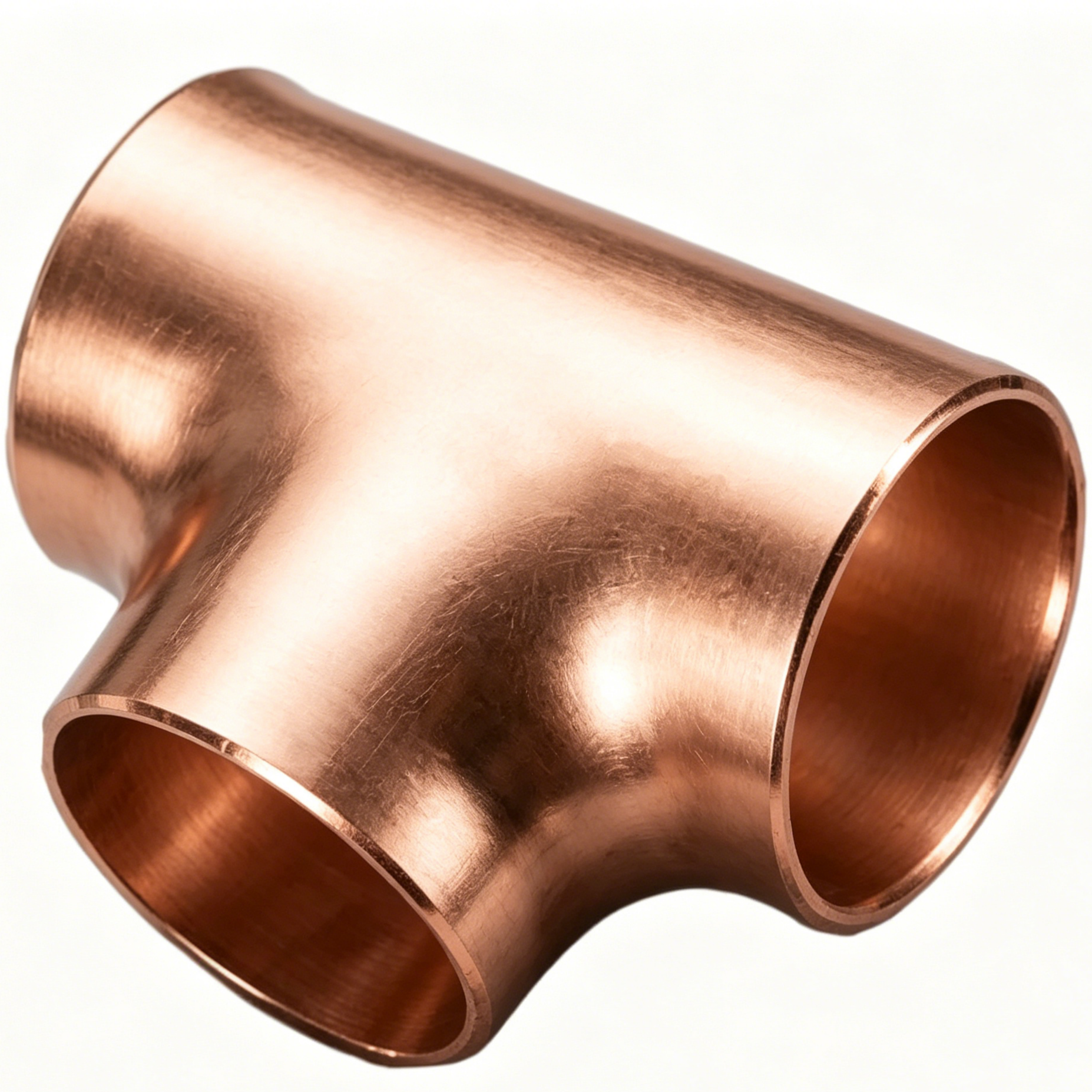

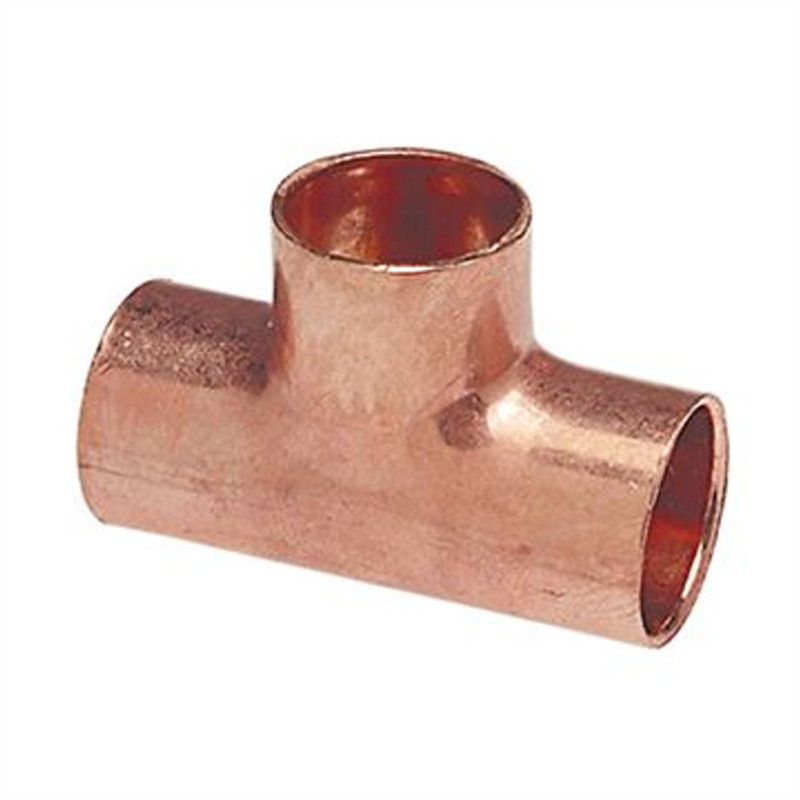

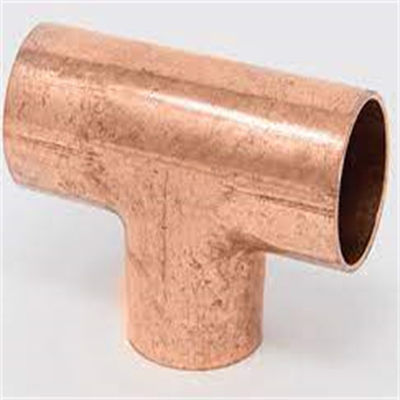

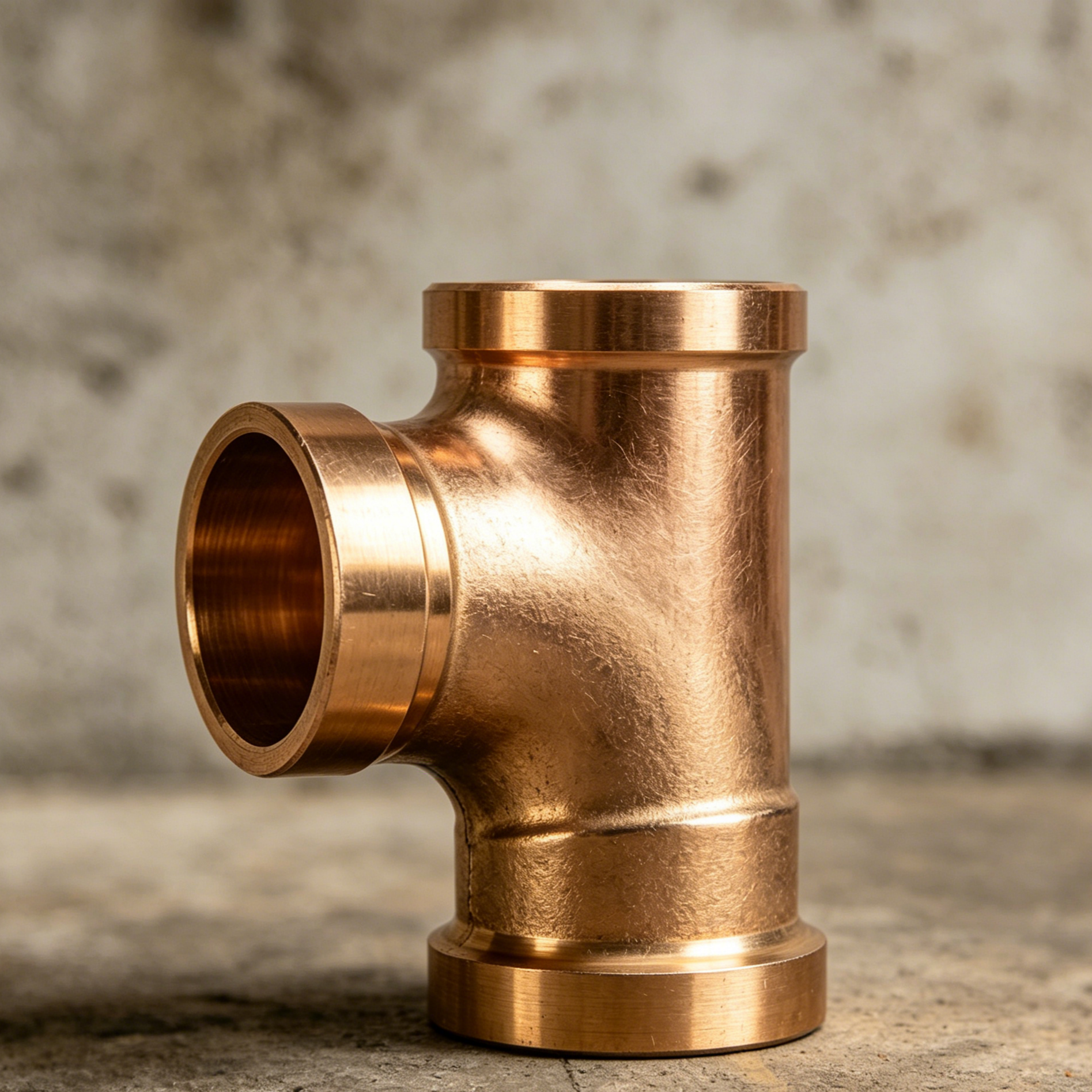

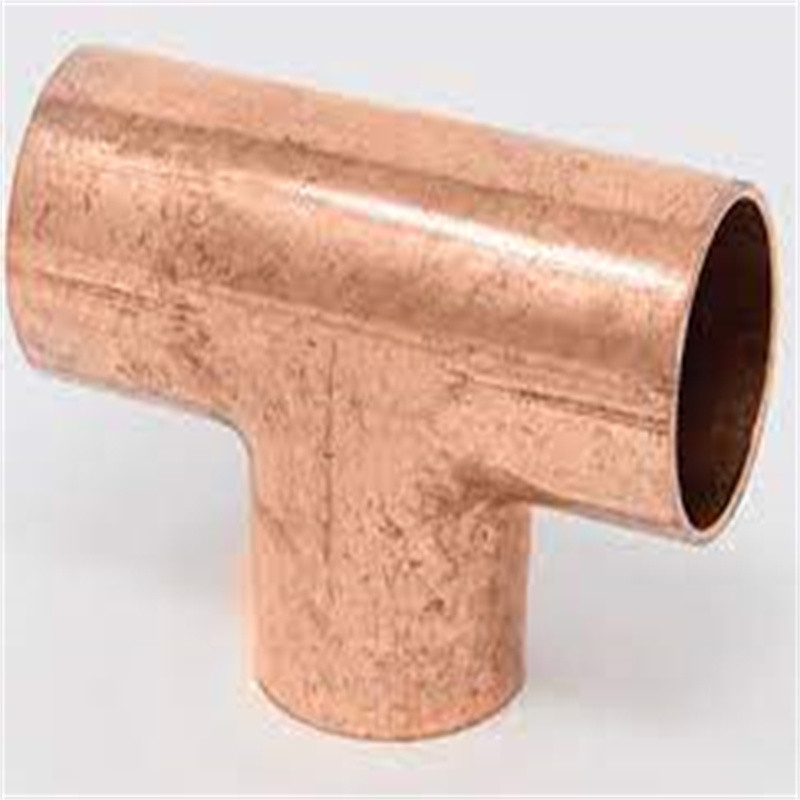

Marine Grade Copper Nickel Equal Tee Forged C71500 Socket Weld Class 150
1. Product Description
This Copper Nickel Equal Tee is manufactured from Cu-Ni 90/10 or 70/30 alloy, with three ports of equal diameter for perpendicular branch connections. It conforms to ASME B16.9, ASTM B467, etc., and is available in seamless or welded types. Ideally suited for seawater, salt spray, and other highly corrosive environments.
2. Product Applications
-
Shipbuilding:Main engine seawater cooling, ballast control, fire main, bilge discharge
-
Offshore:Platform seawater lift, cooling water distribution, splash zone piping
-
Desalination:Raw water intake, brine recirculation, concentrate outfall
-
Chemical:Branch lines for chlorine-bearing or dilute acid media
-
Power generation:Auxiliary cooling & condenser circulating water in nuclear/thermal plants
-
General industry:Coastal fire protection, HVAC chilled water, aquarium high-flow circuits
3.Product Advantages
-
Superior corrosion resistance – Excellent resistance to pitting, crevice & SCC in seawater/chloride media; 3-5× longer life than carbon steel.
-
Anti-fouling – Naturally releases copper ions, preventing barnacles, mussels & algae attachment, greatly reducing cleaning frequency.
-
Good mechanical performance – High strength, good ductility & low-temperature toughness with strong impact resistance.
-
Easy welding – Conventional GTAW/GMAW without preheat or PWHT; stable weld properties.
-
Erosion resistant – Maintains oxide film integrity under reasonable velocity (seawater ≤3 m/s).
-
Cost-effective – Slightly higher initial cost but significantly lower life-cycle cost than carbon steel & ordinary stainless steel.
-
Flexible supply – Full range 1/2″~48″, custom non-standard sizes, three connection types available.
4.Key Technical Parameters
| Parameter | Value |
| Material | Cu-Ni 90/10 (C70600), Cu-Ni 70/30 (C71500) |
| Nominal Size | 1/2″ – 48″ (DN15 – DN1200) |
| Schedule | Sch10s, Sch40s, Sch80s, Sch160, XS, XXS |
| Standard | ASTM B122/B466/B467; ASME B16.9; DIN 86086 |
| End Connection | Butt Weld / Socket Weld / Threaded |
| Pressure | Class 150, 300, 600 (Max. 3000 PSI) |
| Temp. Range | -50°C ~ +300°C |
| Mechanical | Tensile ≥275 MPa, Yield ≥105 MPa, Elongation ≥30% |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
