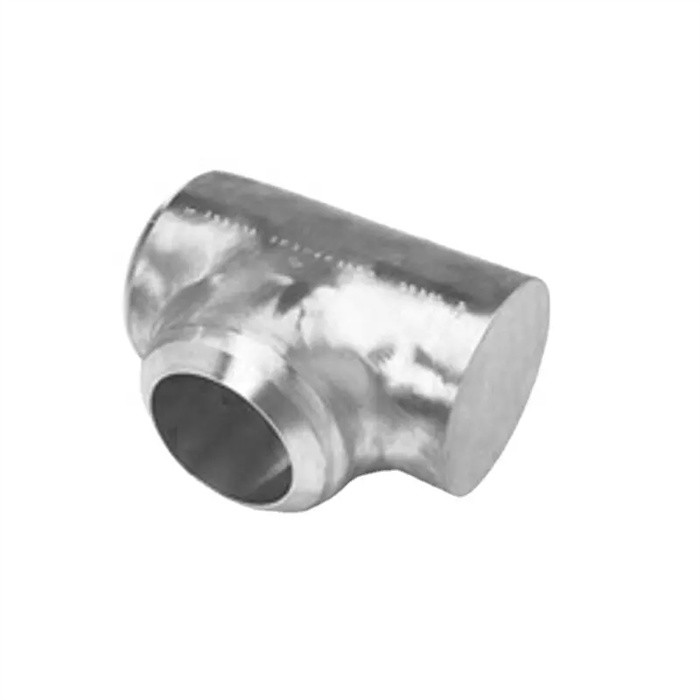

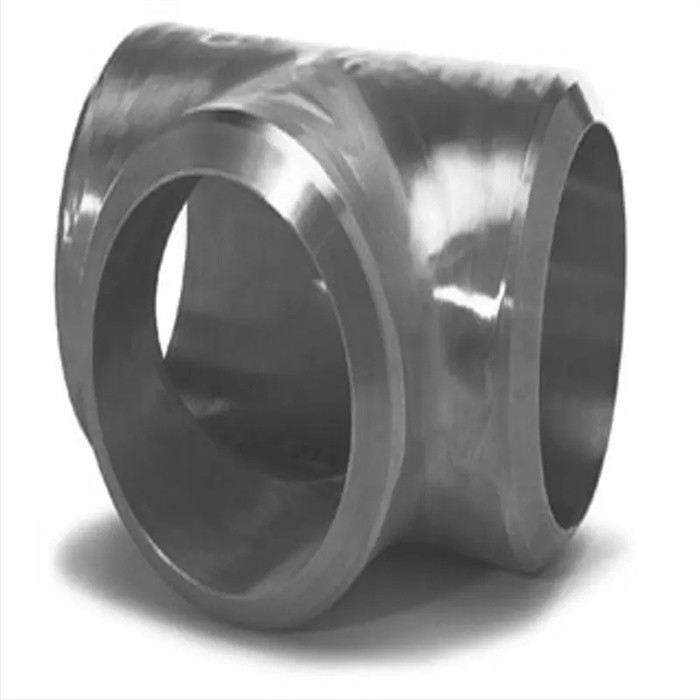

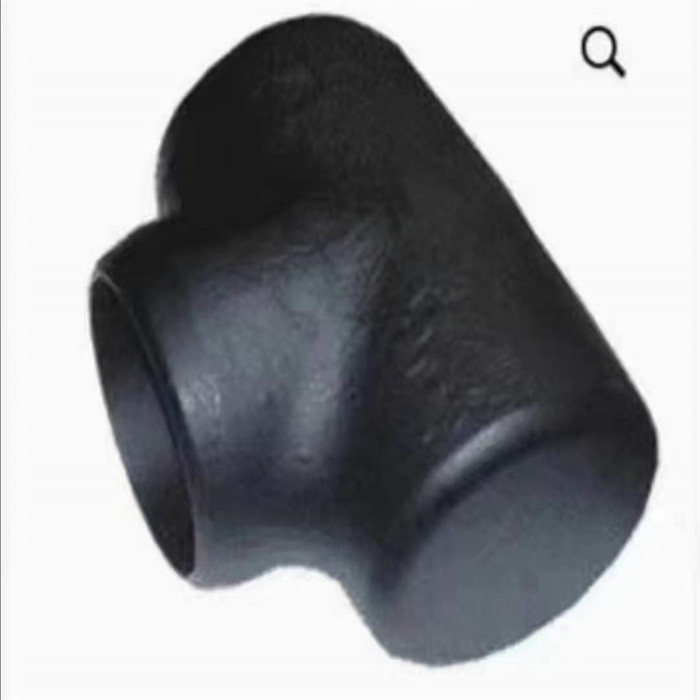

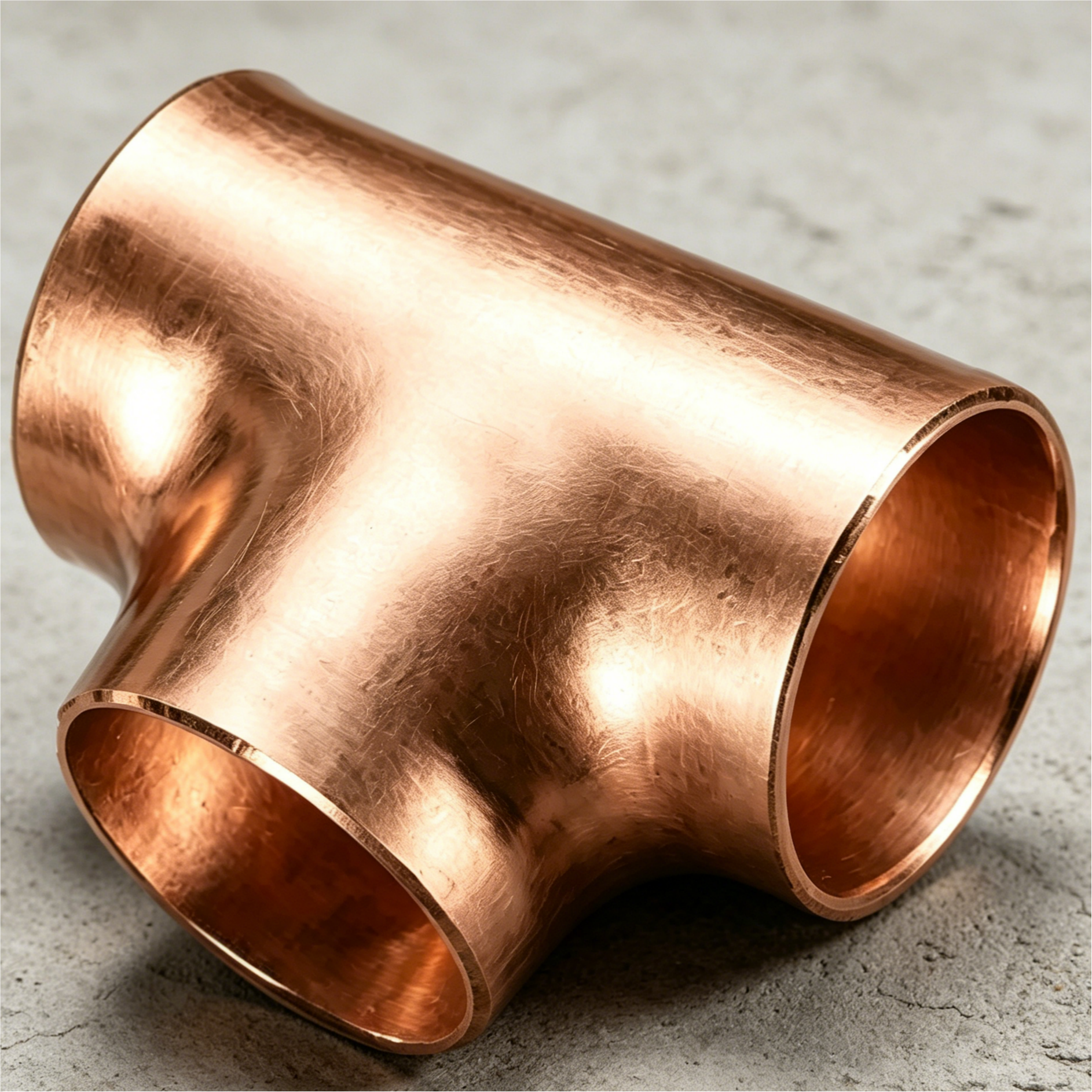

Copper Nickel Equal Tee C71500 Socket Weld Fitting ASME B16.5 Class150
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Equal Tee |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | Copper Nickel Equal Tee C71500 Socket Weld Fitting ASME B16.5 Class150 | Durability | High |
|---|---|---|---|
| Package | Wooden Case | Temperature Rating | -20°C To 120°C |
| Wallthickness | Schedule 10 To Schedule 160 | Pressure | High Pressure |
| Design Standard | ASME B16.22 | Technology | Casting |
| Wall Thickness | Schedule 10, 40, 80 (varies By Specification) | Standard Of Execution | HG/T20592-2009 |
| Temperature Range | -200°C To 400°C | Surface Treatment | Pickling, Sandblasting, Polishing |
| Temperature | High Temperature | Finish | Polished Or Mill Finish |
| Application | Marine, Chemical, And Offshore Industries | Packing | Wooden Case Or As Customer's Request |
| Highlight | Copper Nickel Equal Tee fitting,C71500 Socket Weld Tee,ASME B16.5 Class150 Tee |
||
Product Description
Copper Nickel Equal Tee C71500 Socket Weld Fitting ASME B16.5 Class150
1. Product Description
Copper Nickel Equal Tee is precision-manufactured from copper-nickel alloy (Cu-Ni 90/10 or 70/30) with three identical-diameter ports for perpendicular branch connections. It complies with ASME B16.9, ASTM B466/B467, and other international standards. Available in seamless, welded, and fabricated forms, it is widely used in marine engineering, shipbuilding, desalination plants, and other highly corrosive environments.
2. Product Applications
-
Shipbuilding: Seawater cooling, ballast water, fire water, bilge systems
-
Offshore platforms: Seawater transmission, cooling water, splash zone protection
-
Desalination plants: Corrosion-resistant piping connections
-
Chemical plants: Acid/alkali medium transmission
3.Product Advantages
-
Superior seawater corrosion resistance – 3-5 times longer life than carbon steel.
-
Anti-biofouling – Inhibits marine organism growth, reducing maintenance.
-
Good mechanical properties – High strength, good plasticity, low-temperature toughness.
-
Excellent weldability – GTAW/GMAW weldable without complex pre/post heating.
-
Full size range – 1/2″~48″ with custom shapes available.
4.Key Technical Parameters
| Parameter | Value |
| Material | Copper-Nickel Alloy Cu-Ni 90/10 (UNS C70600), Cu-Ni 70/30 (UNS C71500) |
| Type | Equal Tee |
| Size Range | 1/2″ ~ 48″ (DN15 ~ DN1200) |
| Wall Thickness Schedule | Sch10s, Sch40s, Sch80s, Sch160, XS, XXS |
| Manufacturing Standards | ASTM B122/B171/B466/B467; ASME B16.9/B16.28; MSS-SP-43; DIN 86086; EEMUA 146; EN |
| Connection Types | Butt Weld / Socket Weld / Threaded |
| Pressure Rating | 150LB, 300LB, 600LB; up to 3000 PSI |
| Operating Temperature Range | -50°C ~ +300°C |
| Chemical Composition (C70600) | Cu: Remainder; Ni: 9.0-11.0%; Fe: 1.0-1.8%; Mn: ≤1.0%; Zn: ≤1.0% |
| Mechanical Properties | Tensile Strength ≥275 MPa; Hardness HRB 52-78 |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
