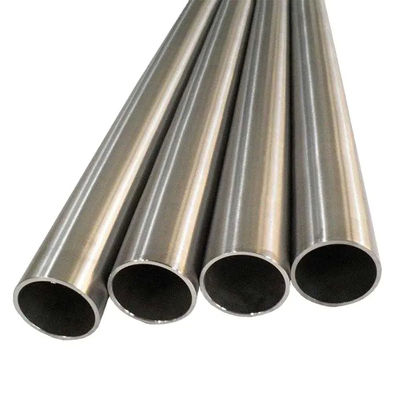

Industrial CuNi 70/30 Seamless Pipe Anti-corrosion C70600 Copper Nickel Tube
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Pipe |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | Industrial CuNi 70/30 Seamless Pipe Anti-corrosion C70600 Copper Nickel Tube | Joiningmethods | Brazing, Welding, Flanging |
|---|---|---|---|
| Connection | Threaded | Size | Custom Size |
| Pressurerating | Up To 3000 Psi Depending On Specification | Method | Hot Rolled |
| Pressure | 300/600/900 | Quality Grade | The Real Thing |
| Packing | Pallet, Wooden Case | Keyword | Copper Pipes Fittings |
| Technique | Cold Drawn, Hot Rolled | Surface | Polished |
| Corrosionresistance | High Resistance To Seawater Corrosion | Diameter | 1/2 Inch - 24 Inch |
| Technics | Casting | Model | A182 F53 |
| Highlight | CuNi 70/30 seamless pipe,C70600 copper nickel tube,industrial anti-corrosion copper pipe |
||
Product Description
Industrial CuNi 70/30 Seamless Pipe Anti-corrosion C70600 Copper Nickel Tube
1.Product Description
Copper-nickel pipe is a corrosion-resistant tube manufactured from a copper-nickel-iron alloy system. It is produced by either cold-drawing seamless billets or roll-forming and welding strip. The material naturally forms a protective, adherent oxide film when exposed to clean seawater, which gives it exceptional service life. This pipe is available in both annealed (soft) and drawn (hard) tempers to suit different fabrication needs.
2.Product Functions
-
Pressure containment at elevated temperatures – Operating pressure rating follows ASME B31.1 for power piping.
-
Sacrificial layer formation – The outer oxide layer self-repairs if mechanically damaged in oxidizing water.
-
Resistance to hydrogen grooving – Suitable for sour service (wet H₂S) with proper pH control.
-
Galvanic compatibility – When coupled with noble metals (titanium, Monel), galvanic current is minimal.
3.Product Applications
-
Power plant cooling systems: Secondary cooling loops and auxiliary cooling water.
-
Subsea oil & gas: Hydraulic control lines and chemical injection tubing.
-
Desalination: Multi-stage flash (MSF) and reverse osmosis (RO) pretreatment piping.
-
Ship repair and retrofit: Replacement of corroded steel pipes in older vessels.
-
Brewing and food processing: Heat exchanger tubing for wort cooling (non-toxic, non-tarnishing).
4.Key Product Parameters
| Parameter | 90/10 Cu-Ni (C70600) | 70/30 Cu-Ni (C71500) |
| Nickel content | 9.0 – 11.0% | 29.0 – 33.0% |
| Iron content | 1.0 – 1.8% | 0.4 – 1.0% |
| Manganese content | 1.0% max | 1.0% max |
| Carbon content | 0.05% max | 0.05% max |
| Lead content | 0.02% max | 0.02% max |
| OD tolerance (seamless) | ±0.1 mm for OD ≤ 50 mm | ±0.1 mm |
| WT tolerance | ±10% of nominal | ±10% of nominal |
| Straightness | 1.0 mm per 3 m length | 0.8 mm per 3 m length |
| Thermal conductivity (at 20°C) | 45 W/m·K | 29 W/m·K |
| Coefficient of thermal expansion | 17.0 × 10⁻⁶ /K | 16.2 × 10⁻⁶ /K |
FAQ
1. Are you trading company or manufacturer ? We are manufacturer ,You can see the certification.
2. How long is your delivery time? Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ? Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ? Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
