C71500 CuNi 70/30 Welded Pipe Anti-corrosion ASTM B466 Industrial Tube
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Pipe |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | C71500 CuNi 70/30 Welded Pipe Anti-corrosion ASTM B466 Industrial Tube | Specification | Any Size Can Be Customised |
|---|---|---|---|
| Color | Copper Color | Feature | Good Thermal |
| Connection | Welding | Price Term | CIF CFR FOB Ex-Work, CIF, CFR, FOB, CNF |
| Grade | 90/10 Copper Nickel Alloy C70600 | Alloy Or Not | Non-Alloy |
| Outer Diameter | 6MM-419.1MM | Formability | Good |
| Machinability | Good | Package | Standard Package.Ten Pieces Per Carton. |
| Packing | Pallet, Wooden Case | Form | Pipe |
| Corrosion Resistance | High | Durability | High |
| Pressurerating | Up To 1500 Psi Depending On Specification | Size | 1/2 |
| Model | A182 F53 | Type | Seamless Pipe / Welded Pipe |
| Surface | Smooth | Outside Diameter | 10-500mm |
| Surface Treatment | Polished | Productname | Copper Nickel Pipe |
| Shape | Pipe | Elongation | Good |
| Dia | 3mm-800mm/custom | Materialcomposition | Copper-Nickel Alloy (commonly 90/10 Or 70/30 Cu/Ni Ratio) |
| Uns | S31254 | Length | 6 Meters Or Customized Lengths |
| Highlight | C71500 CuNi 70/30 welded pipe,ASTM B466 copper nickel tube,anti-corrosion industrial copper pipe |
||
Product Description

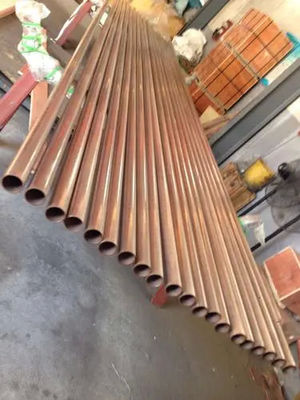

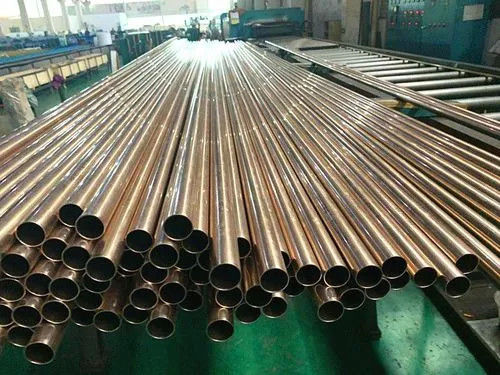

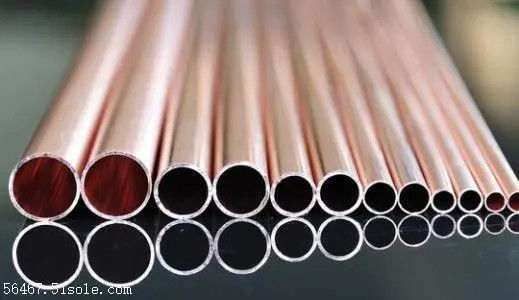

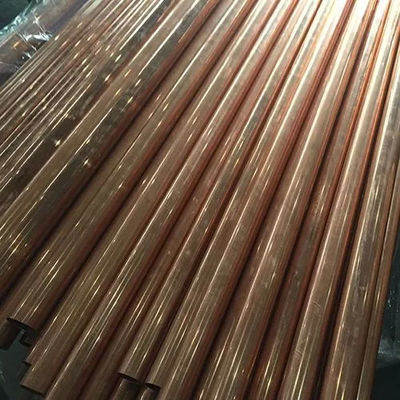

C71500 CuNi 70/30 Welded Pipe Anti-corrosion ASTM B466 Industrial Tube
1. Product Description
Copper nickel pipe is a copper‑nickel alloy tube with copper as the base and nickel as the primary alloying element. Common standards are ASTM B466 / B467 (US) or GB/T 26291 (China). Typical grades are C70600 (90Cu-10Ni) and C71500 (70Cu-30Ni). This product is specially designed for marine, chemical and power industries, offering a good combination of mechanical properties and corrosion resistance.
2.Product Applications
-
Marine & offshore: ballast, cooling and fire water piping systems
-
Desalination: evaporator and heat recovery tube bundles
-
Power industry: condensers, oil coolers, air coolers
-
Chemical & petrochemical: transport of acetic acid, seawater, brine etc.
-
Seawater systems in LNG terminals
3.Product Advantages
-
Excellent corrosion resistance in both flowing and stagnant seawater
-
Self‑forming dense oxide film; resistant to impingement and cavitation corrosion
-
Significant anti‑biofouling performance, reducing pipeline maintenance frequency
-
Good workability: cold bending, hot bending, expanding, welding
-
High erosion resistance, especially suitable for high‑velocity seawater (3–5 m/s)
-
Lower life‑cycle cost than stainless steel and titanium in certain applications
4.Key Product Parameters
| Parameter | C70600 (90/10) | C71500 (70/30) |
| Copper (%) | ≥ Balance | ≥ Balance |
| Nickel (%) | 9.0 – 11.0 | 29.0 – 33.0 |
| Iron (%) | 1.0 – 1.8 | 0.4 – 1.0 |
| Manganese (%) | ≤ 1.0 | ≤ 1.0 |
| OD Range (mm) | 6 – 610 | 6 – 610 |
| WT Range (mm) | 0.5 – 50 | 0.5 – 50 |
| Density (g/cm³) | 8.9 | 8.94 |
| Tensile Strength (MPa) | ≥ 300 | ≥ 450 |
| Yield Strength (MPa) | ≥ 105 | ≥ 170 |
| Elongation (%) | ≥ 30 | ≥ 25 |
| Thermal Conductivity (W/(m·K)) | 40 | 29 |
| Expansion Coefficient (10⁻⁶/K) | 17 | 16 |
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
