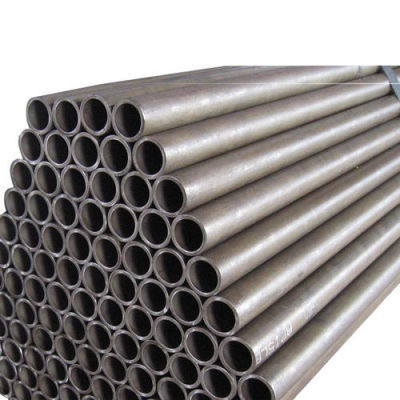

CuNi 70/30 Seamless Pipe ASME SB111 C70600 Marine Grade for Heat Exchanger
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Pipe |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | CuNi 70/30 Seamless Pipe ASME SB111 C70600 Marine Grade For Heat Exchanger | Specification | Cupro-nickel 90/10 |
|---|---|---|---|
| Color | Copper Color | Feature | Excellent Resistance To Dry Fluorine |
| Connection | Welding | Price Term | CIF CFR FOB Ex-Work, CIF, CFR, FOB, CNF |
| Grade | 90/10 Copper Nickel Alloy C70600 | Alloy Or Not | Non-Alloy |
| Outer Diameter | Customized | Formability | Good |
| Machinability | Good | Package | Standard Package.Ten Pieces Per Carton. |
| Packing | Pallet, Wooden Case | Form | Pipe |
| Corrosion Resistance | High | Durability | High |
| Thickness | Customized | Surfacefinish | Smooth, Pickled, Or Annealed Finish |
| Pressure Rating | Up To 1000 Psi | Dia | 3mm-800mm/custom |
| Inner Diameter | Customized | Temperature Range | -196°C To 300°C |
| Wallthickness | Standard And Custom Thicknesses Available | Keyword | Copper Pipes Fittings |
| Size | 1/2 | Material | Copper Nickel |
| Model | A182 F53 | Surface | Bright,polished |
| Highlight | CuNi 70/30 seamless pipe,marine grade copper nickel pipe,heat exchanger C70600 pipe |
||
Product Description
CuNi 70/30 Seamless Pipe ASME SB111 C70600 Marine Grade for Heat Exchanger
1. Product Description
Copper nickel pipe is a seamless or welded tube based on copper with nickel as the primary alloying element. Typical grades are C70600 (CuNi10Fe1Mn, i.e., 90/10) and C71500 (CuNi30Fe1Mn, i.e., 70/30). This alloy is widely used in marine, power, and chemical industries, offering a good balance between strength and corrosion resistance.
2.Product Applications
-
Shipboard ballast, cooling, fire fighting and fresh water piping systems
-
Heat exchanger tube bundles in desalination plants
-
Process piping on offshore oil platforms
-
Condensers and feedwater heaters in power plants (nuclear & thermal)
-
Corrosion-resistant medium transfer in chemical industry
3.Product Functions
-
Safely convey seawater, fresh water, oil, gas and mild acidic media
-
Achieve efficient heat transfer in heat exchangers
-
Withstand high working pressure (design pressure up to 6.4 MPa and above)
-
Inhibit marine microorganism adhesion and growth on the inner pipe wall
4.Key Product Parameters
| Parameter | Value Range / Requirement |
| Common Grades | C70600 (90/10), C71500 (70/30) |
| Outer Diameter Range | 6 mm – 610 mm |
| Wall Thickness Range | 0.5 mm – 50 mm |
| Supplied Length | Random length (3–12 m) or fixed length |
| Density (20°C) | 8.9 g/cm³ (C70600) / 8.94 g/cm³ (C71500) |
| Melting Range | 1100–1240 °C |
| Tensile Strength (min.) | 300 MPa (C70600) / 450 MPa (C71500) |
| Yield Strength (min.) | 105 MPa (C70600) / 170 MPa (C71500) |
| Elongation after fracture (min.) | 30% (C70600) / 25% (C71500) |
| Thermal Conductivity (20°C) | 40 W/(m·K) (C70600) / 29 W/(m·K) (C71500) |
| Hardness (HB) max. | 90 (C70600) / 125 (C71500) |
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
