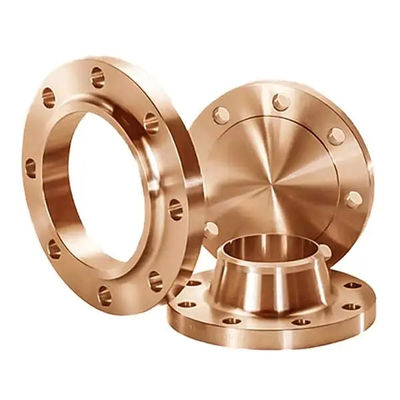

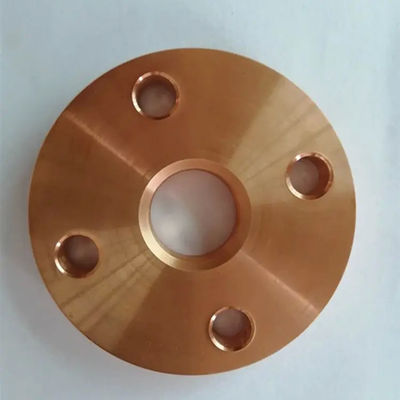

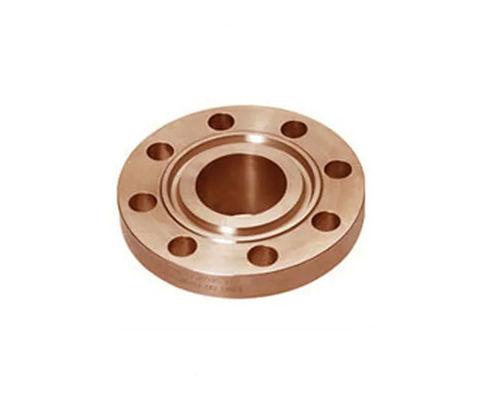

Factory Price CuNi 70/30 Socket Weld Flange Class150, ASME B16.5 Forged C71500 RF
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Flange |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | Factory Price CuNi 70/30 Socket Weld Flange Class150, ASME B16.5 Forged C71500 RF | Surfacefinish | Smooth, Polished Or As Per Customer Requirement |
|---|---|---|---|
| Density | 8.9 G/cm³ | Connection Type | Welding |
| Shape | Elbow | Press | 20Bar |
| Length | 75 MM | Temperaturerange | -196°C To 200°C (-320°F To 392°F) |
| Machinability | Good | Grade | 90/10 Copper Nickle (UNS 70600) |
| Application | Pipe Lines Connect | Weldability | Good |
| Thread Type | ASME B1.20.1(NPT) | Size Rane | 1/2 |
| Thickness | Sch5s-Sch160, XS, XXS | Size Range | 1/2 |
| Surface Treatment | Polishing, Sand Blasting, Etc. | Link Mode | Quick Assembly, Welding, Etc |
| Color | Reddish-brown | Austenitic Stainless | C71500 |
| Corrosion Resistance | Excellent | Standard | ASTM B466 |
| Type | Weld Neck, Slip On, Blind, Threaded, Lap Joint | Size | 3/4 |
| Strength | High | Sealing Surface Form | RF MFM TG RJ |
| Inspection | 100% X-ray, Dye Penetrant, Ultrasonic | Corrosionresistance | Excellent In Seawater And Marine Environments |
| Surface | Paint Spraying | Face Type | Raised Face, Flat Face, Ring Type Joint |
| Package | Wooden Cases, Pallet, Etc. | Sizerange | 1/2 Inch To 48 Inch |
| Often Used Of | PN≤10.0MPa，DN≤40 | Product Type | Socket Welded Flange |
| Coating | Black, Galvanized, Painted, Etc. | Technics | Casting |
| Compressive Strength | Strong | ||
| Highlight | CuNi 70/30 socket weld flange,ASME B16.5 forged C71500 flange,Class150 RF copper nickel flange |
||
Product Description
Factory Price CuNi 70/30 Socket Weld Flange Class150, ASME B16.5 Forged C71500 RF
1.Product Description
The Copper Nickel Flange is a premium-grade pipe fitting manufactured from copper-nickel alloy, standard grades 90/10 (UNS C70600) and 70/30 (UNS C71500). It provides a reliable, leak-proof bolted connection between pipes, valves, pumps, and other equipment. These flanges are specifically engineered for demanding applications involving seawater, brackish water, and other aggressive fluids, where long service life and low maintenance are critical.
2. Applications
-
Shipbuilding: Seawater cooling, ballast, firefighting, and sanitation piping systems.
-
Offshore Oil & Gas: Process piping, firewater systems, and utility lines on fixed and floating platforms.
-
Desalination: Brine recirculation, feed water, and blowdown lines in SWRO, MSF, and MED plants.
-
Power Plants: Cooling water intake and discharge systems, auxiliary cooling circuits.
-
Industrial: Heat exchangers, condensers, evaporators, and piping for salt solutions.
3. Product Functions
-
Pipe Joining: Provides secure, detachable connections for easy assembly and disassembly of piping systems.
-
Pressure Retention: With proper gasket and bolting, maintains system pressure without leakage.
-
System Isolation: Blind flanges allow safe isolation of pipe sections for maintenance or modification.
-
Stress Transition: Weld neck flanges provide smooth stress transfer from pipe to flange, ideal for cyclic or high-temperature service.
-
Access Point: Flanged connections serve as access points for inspection, cleaning, or future tie-ins.
4.Technical Specifications
| Parameter | Value |
| Alloy Grades | C70600 (90/10 Cu-Ni), C71500 (70/30 Cu-Ni) |
| Design Standards | ASME B16.5, ASME B16.47, DIN 2630-2635, EN 1092-1, BS 1560, JIS B2220 |
| Pressure Classes | Class 150, 300, 600, 900, 1500, 2500 |
| Size Range | 1/2″ (DN15) ~ 48″ (DN1200) |
| Flange Types | WN, SO, BL, LJ, SW, Thrd |
| Facing Types | RF, FF, RTJ, MF |
| Tensile Strength | C70600: ≥ 305 MPa (44 ksi); C71500: ≥ 345 MPa (50 ksi) |
| Yield Strength | C70600: ≥ 105 MPa (15 ksi); C71500: ≥ 130 MPa (19 ksi) |
| Elongation | C70600: ≥ 30%; C71500: ≥ 30% |
| Density | 8.94 g/cm³ (0.323 lb/in³) |
| Thermal Conductivity (20℃) | C70600: 45 W/(m·K); C71500: 29 W/(m·K) |
| Electrical Resistivity | C70600: 0.36 µΩ·m; C71500: 0.49 µΩ·m |
| Operating Temperature | -200℃ ~ 315℃ (-328℉ ~ 600℉) |
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
