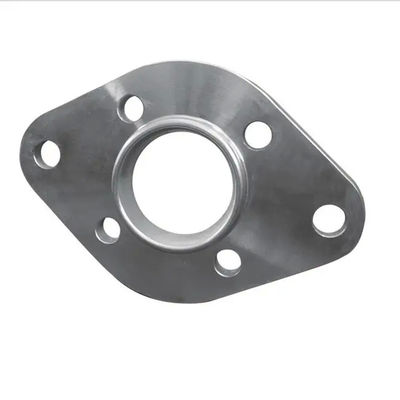

CuNi 70/30 Socket Weld Flange ASME B16.5 Class150, Marine Corrosion Resistant
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Flange |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | CuNi 70/30 Socket Weld Flange ASME B16.5 Class150, Marine Corrosion Resistant | Surfacefinish | Smooth, Polished Or As Per Customer Requirement |
|---|---|---|---|
| Density | 8.9 G/cm³ | Connection Type | Welding |
| Shape | Elbow | Press | 20Bar |
| Length | 75 MM | Temperaturerange | -196°C To 200°C (-320°F To 392°F) |
| Machinability | Good | Grade | 90/10 Copper Nickle (UNS 70600) |
| Application | Pipe Lines Connect | Weldability | Good |
| Thread Type | ASME B1.20.1(NPT) | Size Rane | 1/2 |
| Thickness | 3х2,5 Mm | Size Range | 1/2 |
| Surface Treatment | Polishing, Sand Blasting, Etc. | Link Mode | Quick Assembly, Welding, Etc |
| Color | Reddish-brown | Austenitic Stainless | C71500 |
| Corrosion Resistance | Excellent | Standard | ASTM B466 |
| Type | Flange | Size | 3/4 |
| Strength | High | Sealing Surface Form | RF MFM TG RJ |
| Inspection | 100% X-ray, Dye Penetrant, Ultrasonic | Corrosionresistance | Excellent In Seawater And Marine Environments |
| Surface | Paint Spraying | ||
| Highlight | CuNi 70/30 socket weld flange,marine corrosion resistant flange,ASME B16.5 Class150 flange |
||
Product Description
CuNi 70/30 Socket Weld Flange ASME B16.5 Class150, Marine Corrosion Resistant
1.Product Description
The Copper Nickel Flange is a high-strength, corrosion-resistant piping component manufactured from copper-nickel alloy, predominantly UNS C70600 (90/10) and UNS C71500 (70/30). These flanges are designed to connect pipes, valves, fittings, and equipment in severe service environments, especially where exposure to seawater, brine, or aggressive cooling water is expected. They combine excellent mechanical properties with superior resistance to marine corrosion and biofouling.
2. Applications
Shipbuilding & Marine: Seawater cooling, ballast, fire fighting, sanitary, and hydraulic lines.
Offshore Platforms: Topside process piping, firewater ring mains, deluge systems.
Desalination Plants: High-temperature brine lines in MSF (Multi-Stage Flash) and MED (Multi-Effect Distillation) units.
Power Generation: Cooling water intake and discharge lines, condenser connections.
Chemical Industry: Heat exchangers and piping for dilute acids, alkalis, and salt solutions.
3. Product Functions
Pipe Connection: Provides a strong, detachable mechanical joint between pipe segments or pipe-to-equipment.
Leakage Prevention: When mated with a suitable gasket, creates a pressure-containing seal against fluid escape.
System Access: Blind flanges seal pipe ends, allowing easy opening for future expansion, inspection, or cleaning.
Stress Reduction (WN type): Weld neck flanges provide a smooth transition from pipe to flange, reducing stress concentration and turbulence.
4.Technical Specifications
| Parameter | Value |
| Material Grades | UNS C70600 (CuNi 90/10), UNS C71500 (CuNi 70/30) |
| Manufacturing Standards | ASME B16.5, ASME B16.47 Series A/B, DIN 263x, EN 1092-1, BS 4504, JIS B2220 |
| Pressure Classes | 150#, 300#, 600#, 900#, 1500#, 2500# |
| Nominal Size | 1/2″ ~ 48″ (DN15 ~ DN1200) |
| Flange Types | WN, SO, BL, LJ, SW, Threaded (NPT) |
| Facing Types | RF, FF, RTJ, T&G |
| Tensile Strength (70/30) | ≥ 345 MPa (≥ 50 ksi) |
| Yield Strength (70/30) | ≥ 130 MPa (≥ 19 ksi) |
| Elongation (70/30) | ≥ 30% |
| Hardness (70/30) | ≤ 85 HRB |
| Density | 8.94 g/cm³ (0.323 lb/in³) |
| Melting Range | 1150 ~ 1200℃ (2102 ~ 2192℉) |
| Magnetic | Non-magnetic |
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
