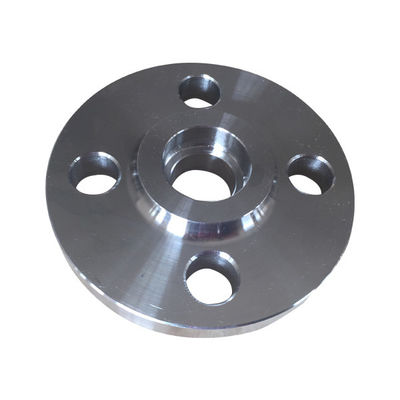

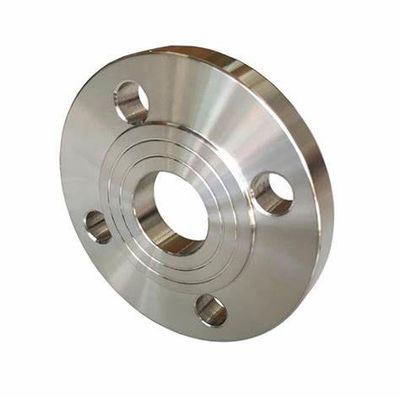

ASME B16.5 CuNi 70/30 SW Flange Class150, Forged RF Copper Nickel Alloy C71500
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Flange |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | ASME B16.5 CuNi 70/30 SW Flange Class150, Forged RF Copper Nickel Alloy C71500 | Surfacefinish | Polished Or As Per Customer Requirement |
|---|---|---|---|
| Easy Installation | Yes | Sealing Surface Form | RF MFM TG RJ |
| Nickelcontent | 30% Nickel | Customized Support | OEM |
| Use | Machanical Parts | Level | 1 |
| Sizerange | 1/2 Inch To 48 Inches | Technics | Casting |
| Standards | ASTM B151, ASME B16.5 | Temperaturerange | -50°C To 200°C |
| Mode Of Connection | Welding | Flange Type | Weld Neck |
| Compressive Strength | Strong | Country Of Origin | China |
| Connection | Butt Weld, Threaded, Socket Weld | Standardscompliance | ASTM B466, ASTM B466M, ASME B16.5 |
| Special Functions | Good Elasticity, Low Steel Value | Surface | Paint Spraying |
| Density | 8.9 G/cm³ | Connectiontype | Welded |
| Austenitic Stainless | C71500 | Corrosionresistance | High Resistance To Seawater Corrosion |
| Temperature Rating | -196°C To 300°C | Warranty | 1 Year |
| Highlight | ASME B16.5 CuNi 70/30 flange,Copper Nickel C71500 forged flange,Class150 RF copper nickel flange |
||
Product Description
ASME B16.5 CuNi 70/30 SW Flange Class150, Forged RF Copper Nickel Alloy C71500
1.Product Description
The Copper Nickel Flange is a high-performance piping component manufactured from Copper-Nickel alloy (commonly 90/10 or 70/30 composition). It is designed to connect pipes, valves, pumps, and other equipment to form a complete piping system. Due to its excellent resistance to corrosion in marine environments, this flange is the industry standard for naval architecture and offshore engineering.
2. Applications
-
Marine Engineering: Seawater cooling lines, ballast systems, firefighting systems, and shipbuilding .
-
Offshore & Onshore: Oil and gas platforms, desalination plants, and power generation stations .
-
Industrial: Heat exchangers and condensers where resistance to corrosion by high-velocity seawater is critical
3. Product Functions
-
Marine Engineering: Seawater cooling lines, ballast systems, firefighting systems, and shipbuilding.
-
Offshore & Onshore: Oil and gas platforms, desalination plants, and power generation stations.
-
Industrial: Heat exchangers and condensers where resistance to high-velocity seawater corrosion is critical.
4.Technical Specifications
| Parameter | Value / Range |
| Material Grades | UNS C70600 (Cu-Ni 90/10), UNS C71500 (Cu-Ni 70/30) |
| Standards | ANSI/ASME B16.5, ASME B16.47, DIN, BS, JIS, EN |
| Pressure Ratings | Class 150, 300, 600, 900, 1500, 2500 |
| Size Range | 1/2″ (15 NB) to 48″ (1200 NB) |
| Flange Types | Weld Neck (WN), Slip-On (SO), Blind (BL), Lap Joint (LJ), Socket Weld (SW), Threaded (SCRD) |
| Tensile Strength (70/30) | ≥ 345 MPa (≥ 50 ksi) |
| Yield Strength (70/30) | ≥ 130 MPa (≥ 20 ksi) |
| Elongation (70/30) | ≥ 30% |
| Density | 8.94 g/cm³ (0.323 lb/in³) |
| Melting Range | 1150 – 1200°C (2100 – 2190°F) |
| Face Type | Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ) |
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
