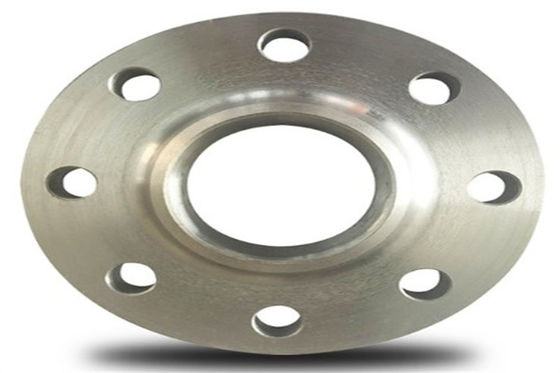

C71500 Cupro Nickel Forged Flange Class150, Socket Weld ASME B16.5 Marine Use
| Place of Origin | Shanghai,China |
|---|---|
| Brand Name | TOBO |
| Certification | ISO/TUV/SGS |
| Model Number | Copper Nickel Flange |
| Minimum Order Quantity | 1PC |
| Price | Negotiable |
| Packaging Details | Standard Shipping Package |
| Delivery Time | 15-30 Workdays |
| Payment Terms | T/T, Western Union |
| Supply Ability | 10Ton/Month |
Product Details
| Product Name | C71500 Cupro Nickel Forged Flange Class150, Socket Weld ASME B16.5 Marine Use | Surfacefinish | Polished Or As Per Customer Requirement |
|---|---|---|---|
| Easy Installation | Yes | Sealing Surface Form | RF MFM TG RJ |
| Nickelcontent | 30% Nickel | Customized Support | OEM |
| Use | Machanical Parts | Level | 1 |
| Sizerange | 1/2 Inch To 48 Inches | Technics | Casting |
| Standards | ASME B16.5, ASTM B151 | Temperaturerange | -50°C To 200°C |
| Mode Of Connection | Welding | Flange Type | Weld Neck |
| Compressive Strength | Strong | Country Of Origin | China |
| Highlight | C71500 Cupro Nickel forged flange,ASME B16.5 socket weld flange,marine use Cupro Nickel flange |
||
Product Description
C71500 Cupro Nickel Forged Flange Class150, Socket Weld ASME B16.5 Marine Use
1.Product Description
The Copper Nickel Flange is a high-performance piping component manufactured from a Copper-Nickel alloy (commonly 90/10 or 70/30 composition). It is designed to connect pipes, valves, pumps, and other equipment to form a complete piping system. Due to its excellent resistance to corrosion in marine environments, this flange is the industry standard for naval architecture and offshore engineering. It combines the strength of steel with the corrosion resistance of copper, offering a long service life in aggressive water conditions .
.
2. Applications
Marine Engineering: Seawater cooling lines, ballast systems, firefighting systems, and shipbuilding .
Offshore & Onshore: Oil and gas platforms, desalination plants, and power generation stations .
Industrial: Heat exchangers and condensers where resistance to corrosion by high-velocity seawater is critical
3. Product Functions
The Copper Nickel Socket Weld Flange serves the following functions in piping systems:
Pipe Connection: Provides a reliable, leak-proof connection between pipes, valves, pumps, and other equipment
System Access Point: Allows for easy disassembly and maintenance of piping systems
Pressure Containment: Safely contains system pressure up to Class 150 rating
Flow Direction Control: Facilitates changes in piping direction when used with elbows or tees
Equipment Isolation: When used with blind flanges, can isolate sections of the piping system
4.Technical Specifications
| Parameter | Specification |
| Material Grade | CuNi 70/30 (UNS C71500) |
| Standard | ASME B16.5 / ANSI B16.5 |
| Pressure Class | Class 150 (also available: 300#, 600#, 900#, 1500#, 2500#) |
| Connection Type | Socket Weld (SW) |
| Size Range | 1/4" to 24" (DN15-DN600) |
| Face Type | Raised Face (RF) / Flat Face (FF) |
| Chemical Composition | Cu: 70%, Ni: 30%, Mn: 0.5-1.5%, Fe: 0.6-1.0% |
| Tensile Strength | ≥350 MPa |
| Yield Strength (0.2%) | ≥130 MPa |
| Elongation | ≥36% |
| Density | 0.323 lb/in³ (8.94 g/cm³) at 68°F |
| Temperature Range | Up to 400°F (204°C) |
FAQ
1. Are you trading company or manufacturer ?
We are manufacturer ,You can see the certification.
2. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
3. Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but need pay the cost of freight.
4. What is your terms of payment ?
Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
