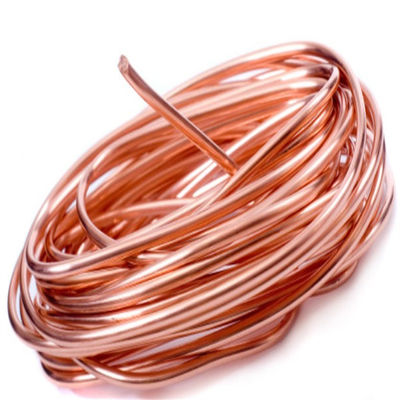

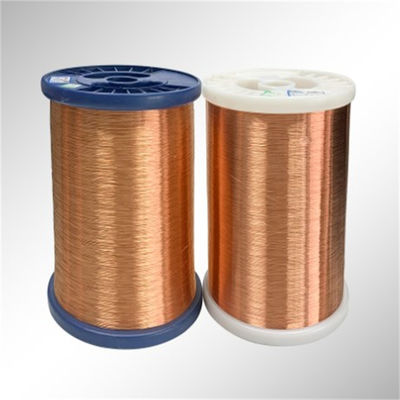

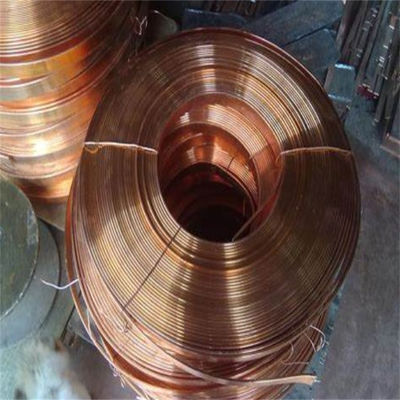

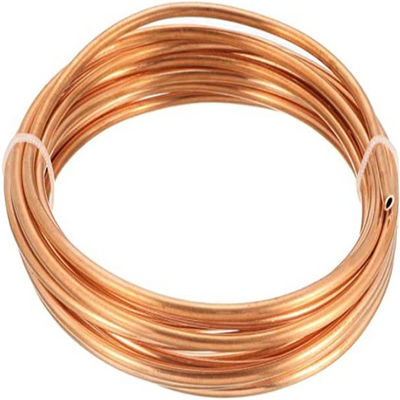

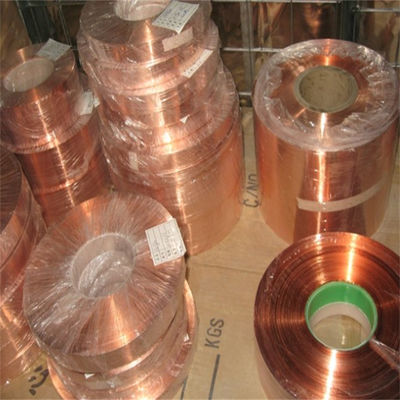

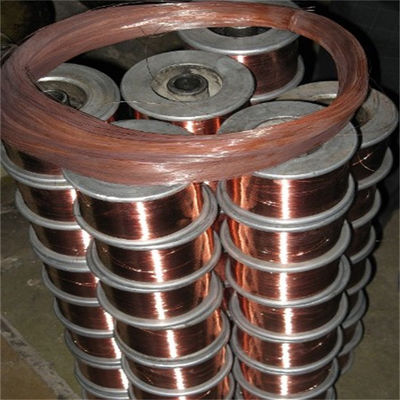

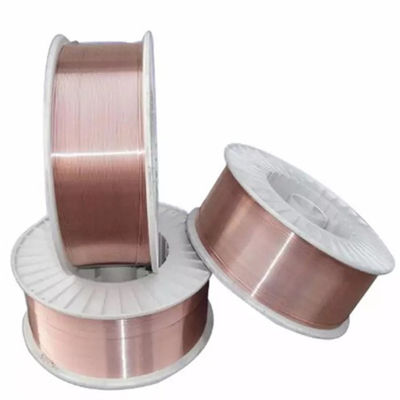

Copper Nickel Manganin Alloy Wire QZ6J12/13/8 Nickel Plated for Electronic Components
| Place of Origin | China |
|---|---|
| Brand Name | METAL |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | Copper Nickel Wire |
| Minimum Order Quantity | 1pcs |
| Price | Depending on quantity |
| Packaging Details | Standard export sea-worthy packing |
| Delivery Time | 25-30 days depending on quantity |
| Payment Terms | T/T, L/C, Western Union |
| Supply Ability | 3,0000pcs per month |
Product Details
| Product Name | Copper Nickel Wire | Thermal Conductivity | 23 W/m·K |
|---|---|---|---|
| Packing | Coil, Spool, Or Cut Length | Tensilestrength | 400-600 MPa |
| Melting Point | 1280°C | Corrosionresistance | High |
| Purity | 99.9% | Electricalconductivity | 15-25% IACS |
| Nickelcontent | 10% To 30% | Conductor Material | Copper,CuNi |
| Electrical Conductivity | 5% IACS | Diameterrange | 0.01mm To 10mm |
| Standard | ASTM B206, DIN 17664, EN 12163 | Surface Finish | Bright, Smooth |
| Elongation | ≥ 25% | ||
| Highlight | Copper Nickel Manganin alloy wire,Nickel plated electronic wire,QZ6J12 alloy wire |
||
Product Description
Copper Nickel Manganin Alloy Wire QZ6J12/13/8 Nickel Plated for Electronic Components
Copper Nickel Wire Synonyms
This product is a series of copper nickel manganin alloy wires covering grades QZ6J12, QZ6J13 and QZ6J8. Adopting nickel plated surface treatment, it features excellent solderability, stable resistivity, low temperature coefficient and good oxidation resistance.
It is widely used in precision resistors, shunts, instrument sensors, automotive electronics and various electronic components requiring reliable soldering connection. The wire has uniform size, smooth surface and good ductility for winding and processing. Custom diameters and lengths are available according to customer demands.
About Copper Nickel Wire
China METAL manufacture high-resistance Copper-Nickel Wires in various ratios of Cu to Ni, both cut to straight lengths or in coils. Our standard metal and alloy sizes range from 0.13 mm to 2 mm diameter in with strict tolerances and alpha values (conductive resistance) for uses such as gas detection and thermometry tolerances. Typical and custom packaging is available. Please request a quote above to receive pricing information based on your specifications.
Copper Nickel Wire Properties (Theoretical)
| Compound Formula | CuNi |
|---|---|
| Molecular Weight | 122.239 g/mol |
| Appearance | Metallic wire |
| Melting Point | 2031-2255 °F |
| Boiling Point | N/A |
| Density | 8.5-8.95 g/cm3 |
| Solubility in H2O | N/A |
| Electrical Resistivity | 3.8 x 10-8 Ω·m |
| Heat of Fusion | 220-240 kJ/kg |
| Poisson's Ratio | 0.34-0.35 |
| Tensile Strength | 267-624 MPa |
| Thermal Expansion | 16-17 W/m·K |
| Young's Modulus | 120-126 |
| Exact Mass | 120.865 g/mol |
| Monoisotopic Mass | 120.865 g/mol |
Copper Nickel Wire Health & Safety Information
| Signal Word | Danger |
|---|---|
| Hazard Statements | H317-H351-H372 |
| Hazard Codes | Xn, Xi |
| Precautionary Statements | P260-P201-P280-P363-P405-P501a |
| Risk Codes | N/A |
| Safety Statements | N/A |
| Transport Information | NONH for all modes of transport |
| GHS Pictograms |
|
Chemical Identifilers
| Linear Formula | Cu-Ni |
|---|---|
| MDL Number | MFCD00801098 |
| EC No. | N/A |
| Pubchem CID | 9793750 |
| IUPAC Name | copper; nickel |
| SMILES | [Ni].[Cu] |
| InchI Identifier | InChI=1S/Cu.Ni |
| InchI Key | YOCUPQPZWBBYIX-UHFFFAOYSA-N |
