Copper Nickel Cuni Flanges C71500 70/30 A105 Raised Face Weld Neck Flange
| Place of Origin | China |
|---|---|
| Brand Name | TOBO |
| Certification | SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED |
| Model Number | Copper Nickel Flange |
| Minimum Order Quantity | 1pcs |
| Price | depending on quantity |
| Packaging Details | Standard exportsea-worthy packing |
| Delivery Time | 1030 days depending on quantity |
| Payment Terms | T/T, L/C, D/P, T/T, Western Union |
| Supply Ability | 3,0000 pcs per month |
Product Details
| Product Name | Copper Nickel Flange | Surface | Paint Spraying |
|---|---|---|---|
| Shape | Reducing | Price Term | CIF CFR FOB Ex-Work |
| Temperaturerange | -50°C To 150°C | Pressurerating | Class 150 To Class 300 |
| Corrosion Resistance | Excellent | Process | Casting, Forging, Etc. |
| Material | Copper Nickel Alloy | Surfacefinish | Smooth Machined |
| Grade | Copper | Flange Type | Weld Neck |
| Sealing Surface | RF/FF/RTJ | Manufacturing Process | Push, Press, Forge, Cast, |
| Strength | High | Weldability | Good |
| Highlight | C71500 copper nickel weld neck flange,70/30 CuNi A105 raised face flange,Cuni flanges with raised face |
||
You can tick the products you need and communicate with us in the message board.
| Name of Product |
|---|
Product Description

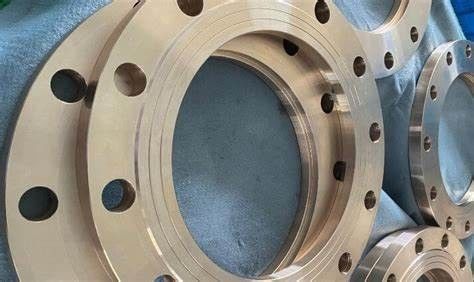

Copper Nickel Cuni Flanges C71500 70/30 A105 Raised Face Weld Neck Flange
These copper nickel Cuni flanges are made of C71500 (70/30) alloy with A105 carbon steel structure, designed as raised face weld neck type for high‑pressure industrial piping systems. They combine excellent corrosion resistance of copper nickel and high strength of A105 material, ensuring stable performance in harsh working environments.
The raised face structure provides tight sealing effect, while the weld neck design enhances connection strength and reduces stress concentration. Standard dimensions and precise processing ensure perfect matching with pipes and fittings, widely used in oil and gas, marine engineering, chemical processing, desalination and power plants.
With outstanding seawater corrosion resistance, high temperature resistance and pressure resistance, these flanges offer long service life and low maintenance cost. Each product undergoes strict material inspection, dimensional test, pressure test and sealing test to meet international industrial standards.
Suitable for medium transmission such as water, oil, gas and chemical liquids, they support stable and safe operation for long‑term use. Custom sizes, pressure ratings and processing services are available to meet different project requirements.
Our copper nickel weld neck flanges feature reliable quality, complete specifications and strong compatibility. Standard export packaging is adopted to ensure safe transportation. We provide stable supply, on‑time delivery and professional technical support for global industrial customers.
| Product Name | Copper Nickel Flange 150LB NPS15 C71500 Socket Weld Flange for Oil Gas Pipeline |
| Standard | ASMEB16.5 |
| Size | 1/2’’~24’’ |
| Pressure Rate | 150lb to 2500lb |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Material | copper nickel |
| Carbon steel | ASTM A 105 |
|
Allloy steel flange
|
ASTM A182 F5; F11;F22;F91;F51 ASTM A350 LF1; LF2; A350 LF3 ;LF4;LF6;LF8 |
|
Stainless Steel flange
|
ASTM A182 F304/304H/304L ASTM A182 F316/316H/316L ASTM A182 F321/321H ASTM A182 F347/347H |
| Nickel Alloys Flanges | Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
| Copper Alloys Flange | Copper, Brass & Gunmetal |
| Manufacture Standard |
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48 DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673 B.S : BS4504 , BS4504, BS1560, BS10 |
| Package | Wooden cases, pallets, nylon bags or according to the customers' requirements |
| MOQ | 1pcs |
| Delivery time | 10-100 days depending on quantity |
| Payment terms | T/T or Western Union or LC |
| Shipment | FCA Tianjin/Shanghai, CFR, CIF, etc |
| Application | Petroleum/Power/Chemical/Construction/Gas/Metallurgy/Shipbuilding etc |
| Remarks | Other materials and drawings are available. |
Threaded flange is the inner hole of the flange is processed into pipe thread, and with threaded pipe matching connection, is a kind of non-welded flange.
Compared with welding flanges or butt flanges, threaded flanges are easy to install and maintain, and can be used in some pipelines where welding is not allowed on site. Alloy steel flanges have sufficient strength, but not easy to weld, or welding performance is not good, you can also choose threaded flanges.
Copper and nickel can be infinite solid solution to each other, thus forming a continuous solid solution, that is, regardless of the proportion of each other, and always α-single-phase alloy. When the nickel is fused into the red copper D200, the content is more than 16%, the resulting alloy color becomes relatively close to white as silver, the higher the nickel content, the whiter the color, but, after all, with copper fusion, as long as the nickel content does not exceed 70%, the naked eye will see copper yellow. Moreover, the nickel content of white copper is usually 25%. White copper is the elegant name of copper-nickel alloy, the density between copper and nickel 8.9-8.88.
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is the delivery ?
A: 15-30 working days
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
